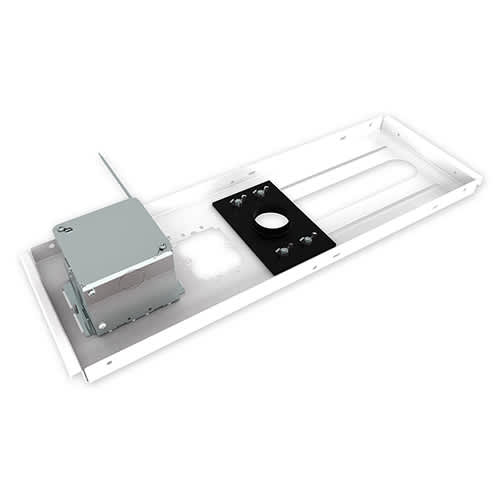

Ceiling Tile Kit
Suspended ceiling kit for 2' x 2' and 2' x 4' tiles, supporting up to 50 lbs
The Chief CMS440N Ceiling Tile Kit provides a streamlined installation solution for projecting equipment in suspended ceiling environments. Designed for use above the tile, this white Speed-Connect ceiling plate kit clamps easily to existing ceiling tracks, making it an efficient and economical choice for professional AV integrations. This kit is compatible with both 2' x 2' (60.33 x 60.33 cm) and 2' x 4' (60.33 x 121.92 cm) ceiling tiles. It supports a total weight capacity of 50 lbs (22.7 kg), which includes the combined weight of the column, mount, and projector. For installers requiring additional features, the CMS440N is part of a series that offers various storage and power options; for example, the CMS443 is a complete bundle that includes the CMS440 kit and a 3" fixed pipe. This TAA compliant and UL Listed kit is engineered for minimal assembly and easy integration into standard grid layouts.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Ceiling Tile Size | 2' x 2' (60.33 x 60.33 cm) and 2' x 4' (60.33 x 121.92 cm) |
| Depth | 23.4 in (59.4 cm) |
| Height | 1.3 in (3.3 cm) |
| Shipping Dimensions | 9.5" x 6" x 27" (241.3 x 152.4 x 685.8 mm) |
| Shipping Weight | 1-10.45 lbs (0.45-4.74 kg) |
| Weight Capacity | 50 lbs (22.7 kg) |
| Width | 8 in (20.3 cm) |
| Accessory Type | Suspended Ceiling |
All other specifications 9
| Application | Ceiling |
| Ceiling Plate Type | Speed-Connect |
| Color | White |
| Includes Power Outlet | No |
| Installation Type | Above Tile |
| Special Features | Surge and Filtering |
| TAA Compliant | Yes |
| UPC | 841872154121 |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
2' x 2' Above Suspended Ceiling Storage Box and column drop with 2-Gang Filter & Surge
CMS492CP2$945.60
Extension Column and Ceiling Mount Kit
CMS443$164.80
2' x 2' Above Suspended Ceiling Storage Box with 2-Gang Filter & Surge
CMS492P2$827.20
SpeedConnect Above-Tile Suspended Ceiling Kit with 2-Gang Filter & Surge
CMS440P2$400.80

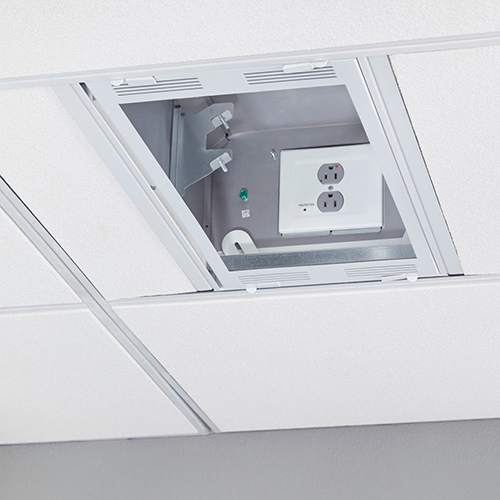

1' x 2' Above Suspended Ceiling Storage Box with 2-Gang Filter & Surge
CMS491P2$626.40

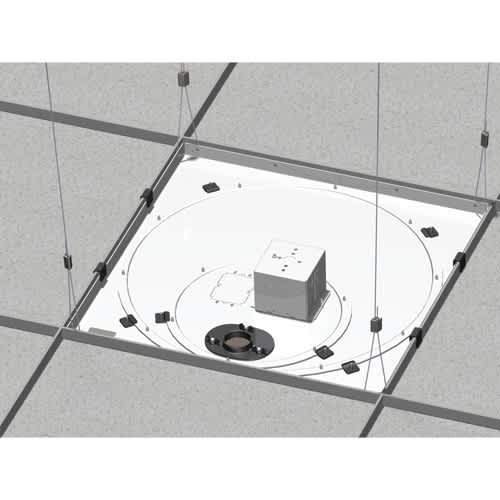

Speed-Connect Suspended Ceiling Tile Replacement Kit
CMS445$275.20
SpeedConnect Suspended Ceiling Tile Replacement Kit with 2-Gang Filter & Surge
CMS445P2$526.40
Speed-Connect Suspended Ceiling Tile Replacement Kit with Power Outlet Housing
CMS445N$320.00

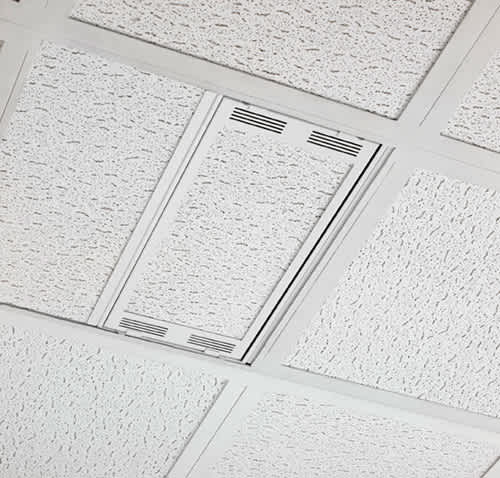

1' x 2' Above Suspended Ceiling Storage Box
CMS491$393.60
Speed-Connect Above Tile Suspended Ceiling Kit
CMS440$150.40
1' x 2' Above Suspended Ceiling Storage Box with Column Drop
CMS491C$479.20

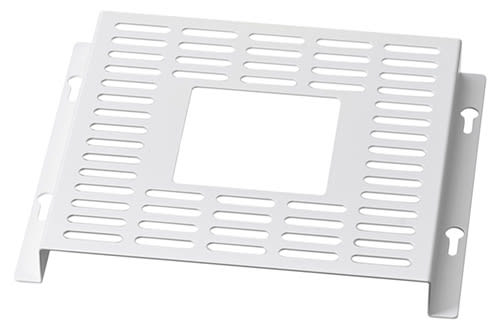

AV Storage Adapter for CMA473
CMSUNVU$42.40
Questions about this part
Will the CMS440N work with my ceiling tile size?
Yes, this kit is designed for 2' x 2' (60.33 x 60.33 cm) and 2' x 4' (60.33 x 121.92 cm) tiles. It is also compatible with 600 x 600 mm and 600 x 1200 mm tiles in Canada, Mexico, and Europe.
What is the total weight limit for this projector kit?

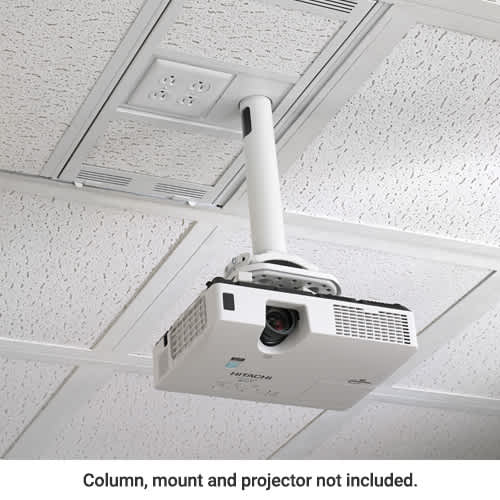

The kit supports a total weight of 50 lbs (22.7 kg). This limit must account for the weight of the column, the mount, and the projector combined.
Does this kit include a power outlet?
No, this specific SKU (CMS440N) does not include a power outlet. For options involving power, consider the CMS445N which features a power outlet housing.
What is the difference between the CMS440N and the CMS443?
The CMS443 is a complete bundle that includes the CMS440 Above Tile Suspended Ceiling Kit plus a 3" Fixed Pipe.
Which document should I use for installation instructions?
You can refer to the CMS440 Installation Manual for specific setup guidance or the CMS440N CMS445N Installation Manual for combined instructions.
