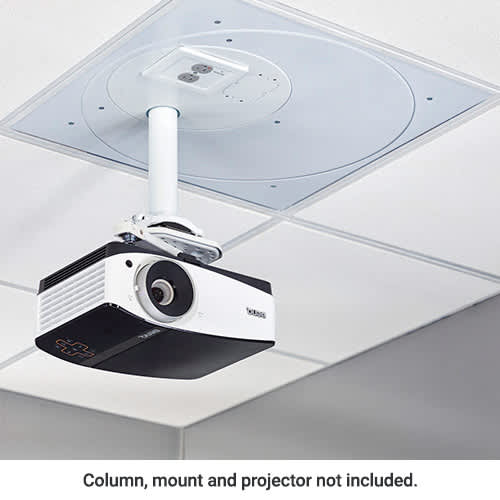

SpeedConnect Suspended Ceiling Tile Replacement Kit with 2-Gang Filter & Surge
Suspended ceiling tile replacement kit for 2' x 2' tiles, featuring integrated 2-gang power with surge and filtering
The Chief CMS445P2 is a SpeedConnect Suspended Ceiling Tile Replacement Kit designed to provide a streamlined, economic mounting solution for projector installations in suspended ceilings. This kit replaces a standard 2' x 2' (60.33 x 60.33 cm) ceiling tile to provide a secure mounting point and integrated power distribution. It supports a total weight of 50 lbs (22.7 kg), which accounts for the combined weight of the column, the mount, and the projector. The integrated power outlet features a 15A, 1875 W continuous output and includes a Type 3 Surge Protective Device (SPD) with a Voltage Protection Rating (VPR) of 600V L-N. This specific kit is TAA compliant and UL Listed. For installations requiring specific bundling, the CMA443 is available as a package containing the CMA440 Above Tile Suspended Ceiling Kit and a CMS003 3" Fixed Pipe.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Ceiling Tile Size | 2' x 2' (60.33 x 60.33 cm) |
| Depth | 23.6 in (59.9 cm) |
| Height | 1.1 in (2.8 cm) |
| Overall Dimensions | 1.1" x 23.6" x 23.6" (29 x 600 x 600 mm) |
| Shipping Weight | 24 lbs (10.9 kg) |
| Weight Capacity | 50 lbs (22.7 kg) |
| Width | 23.6 in (59.9 cm) |
| Accessory Type | PowerSuspended Ceiling |
All other specifications 9
| Application | Ceiling |
| Ceiling Plate Type | Speed-Connect |
| Color | White |
| Includes Power Outlet | Yes |
| Installation Type | Replacement |
| Special Features | Surge and Filtering |
| TAA Compliant | Yes |
| UPC | 841872166773 |
| Certifications | TAAUL Listed |
Resources
Questions about this part
What is the total weight capacity for the CMS445P2?
The CMS445P2 supports a total weight of 50 lbs (22.7 kg), which must include the weight of the column, the mount, and the projector.
What ceiling tile sizes are compatible with this kit?
This replacement kit is designed for 2' x 2' (60.33 x 60.33 cm) tiles and is compatible with 600 x 600 mm or 600 x 1200 mm ceiling tiles in Europe, Canada, and Mexico.
Does this kit include power surge protection?
Yes, it features a Type 3 Surge Protective Device (SPD) with a 600V L-N Voltage Protection Rating (VPR) and consumes >0.5 watt.
What is the difference between the CMS445P2 and the CMA443?
The CMS445P2 is a standalone replacement kit, whereas the CMA443 is a bundle that includes the CMA440 Above Tile Suspended Ceiling Kit and a CMS003 3" Fixed Pipe.
Which document should I use for installation planning?
For installation procedures, refer to the CMS445P2 Installation Manual (PDF) available in the Resources tab.
