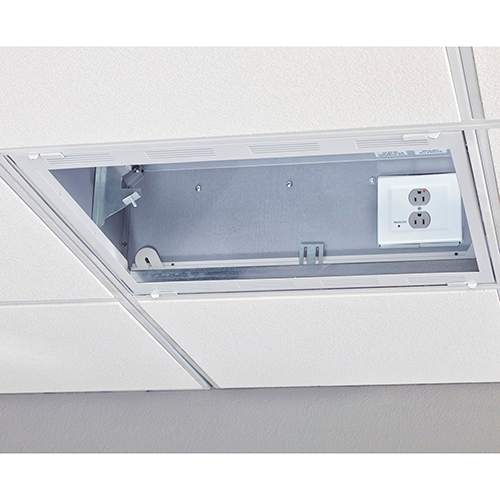

2' x 2' Above Suspended Ceiling Storage Box with 2-Gang Filter & Surge
2' x 2' above suspended ceiling storage box with 2-gang surge and filter power receptacle
The Chief CMS492P2 provides a professional way to conceal AV equipment within a 2' x 2' (60.33 x 60.33 cm) suspended ceiling. This storage box is designed for classrooms and conference rooms, keeping sensitive components out of sight. This specific model features a high-performance, dual gang housing that includes an isolated ground, dual receptacle outlet, and multi-stage filtration and surge protection to shield equipment from high-frequency noise and power disturbances. The enclosure includes built-in ventilation to manage heat and 4 nested knockouts for 1-1/4", 1", and 1/2" diameter conduit. For installation flexibility, the detachable power housing can be pre-installed by electricians on site before being assembled to the storage box. The unit has an overall weight capacity of 100 lbs (45.4 kg), supporting up to 25 lbs (11 kg) per shelf location. This TAA compliant and UL Listed solution is ideal for mounting various AV components in ceiling plenums.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Ceiling Tile Size | 2' x 2' (60.33 x 60.33 cm) |
| Depth | 23.67 in (60.1 cm) |
| Height | 8 in (20.3 cm) |
| Max Equipment Size | 7.61" x 19.25" x 20" (193 x 489 x 508 mm) |
| Overall Dimensions | 8" x 24.97" x 23.67" (203 x 634 x 601 mm) |
| Shipping Weight | 44 lbs (20 kg) |
| Weight Capacity | 100 lbs (45.4 kg) |
| Width | 24.97 in (63.4 cm) |
All other specifications 10
| Accessory Type | Component StoragePowerSuspended Ceiling |
| Accommodate Column Drop | No |
| Application | Ceiling |
| Color | White |
| Includes Power Outlet | Yes |
| Receptacle Type | Two Surge and Filter |
| Special Features | Surge and Filtering |
| TAA Compliant | Yes |
| UPC | 841872166810 |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
2' x 2' AV Component Shelf
CMSUNV2$116.00
1RU Rack Mount Brackets
CMS1RU$33.60
Fan Kit
CMSFANDiscontinued
Questions about this part
Will the CMS492P2 fit my specific AV equipment?
The CMS492P2 accommodates a maximum equipment size of 7.61" x 19.25" x 20" (193 x 489 x 508 mm).
What additional items do I need to purchase for mounting equipment?
This unit ships with 1 shelf. Additional shelves are available via SKU CMSUNV2, and 1RU rack rail brackets can be added using SKU CMS1RU.
How is the power housing installed in the CMS492P2?
The power housing is detachable and can be pre-installed by an electrician on-site before being assembled to the main storage box.
Can I mount a projector ceiling plate to this unit?
Yes, the unit supports a projector ceiling plate with a weight capacity of 50 lbs (22 kg).
Where can I find installation instructions for this storage box?
Technical drawings and the installation manual for the CMS491/492 series are available in the product resources.
