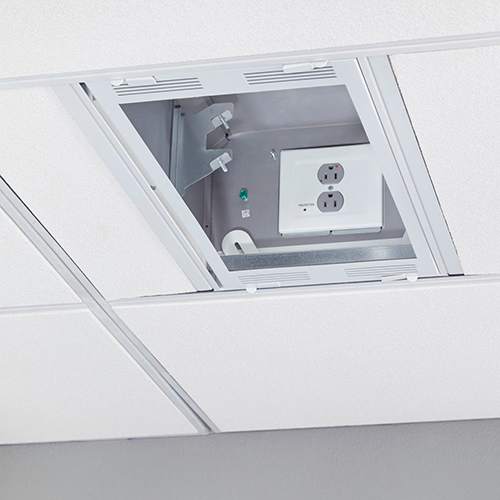

1' x 2' Above Suspended Ceiling Storage Box with 2-Gang Filter & Surge
1' x 2' ceiling storage box for hiding AV equipment, featuring dual-gang surge and filtration power protection
The Chief CMS491P2 is a 1' x 2' (30.48 x 60.33 cm) above-suspended ceiling storage box designed to conceal AV equipment in classrooms and conference rooms. This white component storage solution features a drop carriage door that improves serviceability by providing full access to the equipment once installed. The unit includes a high-performance, dual-gang housing with an isolated ground and a two-gang receptacle outlet. This outlet provides non-sacrificial multi-stage filtration and surge protection to safeguard components from power disturbances and high-frequency noise. The box has an overall weight capacity of 100 lbs (45.4 kg), with a specific capacity of 50 lbs (22 kg) for projector ceiling plates and 25 lbs (11 kg) per shelf location. For installation, the box includes 4 nested knockouts for 1-1/4", 1", and 1/2" diameter conduit. It ships with 1 shelf, but an additional shelf can be purchased separately via SKU CMSUNV1.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Ceiling Tile Size | 1' x 2' (30.48 x 60.33 cm) |
| Depth | 23.67 in (60.1 cm) |
| Height | 8 in (20.3 cm) |
| Max Equipment Size | 7.61" x 19.25" x 12" (193 x 489 x 305 mm) |
| Overall Dimensions | 8" x 12.97" x 23.67" (203 x 329 x 601 mm) |
| Shipping Weight | 29.19 lbs (13.2 kg) |
| Weight Capacity | 100 lbs (45.4 kg) |
| Width | 12.97 in (32.9 cm) |
All other specifications 10
| Accessory Type | Component StoragePowerSuspended Ceiling |
| Accommodate Column Drop | No |
| Application | Ceiling |
| Color | White |
| Includes Power Outlet | Yes |
| Receptacle Type | Two Surge and Filter |
| Special Features | Surge and Filtering |
| TAA Compliant | Yes |
| UPC | 841872166797 |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
Questions about this part
Will this fit my 2' x 2' ceiling tile installation?
The CMS491P2 is specifically designed for 1' x 2' (30.48 x 60.33 cm) ceiling tiles. It is not a 2' x 2' tile-sized box.
What is the maximum equipment size this box can hold?
The interior accommodates equipment up to 7.61" x 19.25" x 12" (193 x 489 x 305 mm).
How many shelves are included and can I add more?
The unit ships with one shelf included. If your setup requires more space, you can purchase the CMSUNV1 1' x 2' AV Component Shelf separately.
What are the power requirements and protection features?
It features a dual-gang housing with non-sacrificial multi-stage filtration and surge protection to protect against high-frequency noise and power disturbances.
What tools or items are required for installation?
Installers should refer to the CMS491_492-I.pdf installation manual for specific requirements and ensure they have the necessary tools for conduit connection.
