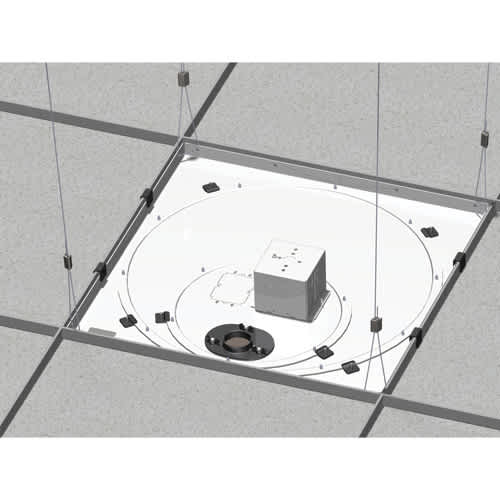

Speed-Connect Suspended Ceiling Tile Replacement Kit with Power Outlet Housing
Suspended ceiling replacement kit for 2' x 2' tiles, supporting up to 50 lbs (22.7 kg)
The Chief CMS445N is a Speed-Connect replacement kit designed for suspended ceiling projector installations. This kit functions as a replacement unit for the CMS445 series, providing a 2' x 2' (60.33 x 60.33 cm) footprint that fits into standard 600 x 600 mm or 600 x 1200 mm ceiling tile grids. It is an economic mounting solution that installs above the ceiling tile by clamping directly to the ceiling tracks, requiring minimal assembly during the installation process. This specific SKU, the CMS445N, does not include a power outlet. The system supports a total weight of 50 lbs (22.7 kg), which accounts for the combined weight of the column, the mount, and the projector. For installers requiring a full bundle, the CMA443 is available as a combination including the CMA440 Above Tile Suspended Ceiling Kit and the CMS003 3" Fixed Pipe. This TAA compliant and UL Listed kit features surge and filtering capabilities to protect your equipment.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Ceiling Tile Size | 2' x 2' (60.33 x 60.33 cm) |
| Depth | 23.6 in (59.9 cm) |
| Height | 1.1 in (2.8 cm) |
| Overall Dimensions | 1.1" x 23.6" x 23.6" (29 x 600 x 600 mm) |
| Shipping Weight | 22.5 lbs (10.2 kg) |
| Weight Capacity | 50 lbs (22.7 kg) |
| Width | 23.6 in (59.9 cm) |
| Accessory Type | Suspended Ceiling |
All other specifications 9
| Application | Ceiling |
| Ceiling Plate Type | Speed-Connect |
| Color | White |
| Includes Power Outlet | No |
| Installation Type | Replacement |
| Special Features | Surge and Filtering |
| TAA Compliant | Yes |
| UPC | 841872154138 |
| Certifications | TAAUL Listed |
Resources
Questions about this part
Will the CMS445N fit my ceiling tile grid?
Yes, this kit is compatible with 2' x 2' (60.33 x 60.33 cm) tiles as well as 600 x 600 mm and 600 x 1200 mm grids used in Canada, Mexico, and Europe.
What is the total weight capacity for this kit?
The system supports a total weight of 50 lbs (22.7 kg), which must include the weight of the projector, the mount, and the column.
Does this kit include an integrated power outlet?
No, the CMS445N is the replacement kit without the power outlet. It features two outlet knockouts for your own wiring.
What is the difference between the CMS445N and the CMA443?
The CMS445N is a replacement kit, whereas the CMA443 is a complete bundle that includes the CMA440 Above Tile Suspended Ceiling Kit and a CMS003 3" Fixed Pipe.
What installation tools and hardware are required?
The kit includes four turnbuckles, wood eye bolts, concrete anchors, a 10 ft (304.8 cm) safety cable, and a 20 ft (609.6 cm) strand wire for installation.
