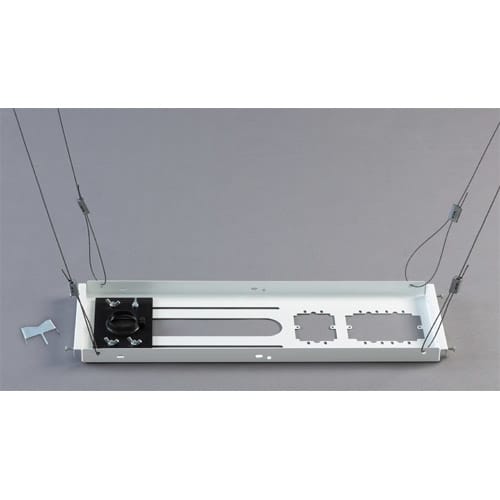

Extension Column and Ceiling Mount Kit
Extension column and ceiling mount kit for suspended ceilings, including a 3" fixed column and 50 lbs weight capacity
The Chief CMS443 is an extension column and ceiling mount kit designed specifically for suspended ceiling installations. This bundle provides a complete solution by combining the CMS440 Above Tile Suspended Ceiling Kit with a CMS003 3" Fixed Pipe. This kit is engineered for easy clamping to ceiling tracks, making it one of the most economic and efficient mounting options for suspended grids. The system is compatible with 2' x 2' (60.33 x 60.33 cm) and 2' x 4' (60.33 x 121.92 cm) ceiling tiles, including 600 x 600 mm and 600 x 1200 mm tiles used in Europe, Canada, and Mexico. The total weight capacity for this assembly—which includes the column, the mount, and the projector—is 50 lbs (22.7 kg). The kit features a Speed-Connect ceiling plate type for efficient installation above the tile and provides two outlet knockouts for cabling. This TAA compliant and UL Listed solution is designed to minimize assembly time in professional environments.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Ceiling Tile Size | 2' x 2' (60.33 x 60.33 cm) and 2' x 4' (60.33 x 121.92 cm) |
| Depth | 8 in (20.3 cm) |
| Height | 1.1 in (2.8 cm) |
| Overall Dimensions | 1.1" x 24.4" x 8.0" (29 x 619 x 203 mm) |
| Shipping Weight | 10-10 lbs (4.54-4.54 kg) |
| Weight Capacity | 50 lbs (22.7 kg) |
| Width | 24.4 in (62 cm) |
| Accessory Type | Suspended Ceiling |
All other specifications 10
| Application | Ceiling |
| Ceiling Plate Type | Speed-Connect |
| Color | White |
| Column Type | Fixed |
| Includes Power Outlet | No |
| Installation Type | Above Tile |
| Special Features | Surge and Filtering |
| TAA Compliant | Yes |
| UPC | 841872105406 |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
Speed-Connect Suspended Ceiling Tile Replacement Kit
CMS445$275.20
Speed-Connect Above Tile Suspended Ceiling Kit
CMS440$150.40
Above-Tile Storage Accessory-CMA472
CMA472$137.60
Above-Tile Storage Accessory
CMA470$137.60
CMS0305, 3-5' Adjustable Extension Column, Pole
CMS0305$185.60
CMS018024W, 18-24 Inch Adjustable Extension Column, Pole
CMS018024W$153.60
CMS0305W, 3-5' Adjustable Extension Column, Pole
CMS0305W$185.60
CMS0203W, 2-3' Adjustable Extension Column, Pole
CMS0203W$166.40
CMS0203, 2-3' Adjustable Extension Column, Pole
CMS0203$166.40
CMS003W, 3 Inch Fixed Extension Column, Pole
CMS003W$22.40
CMS009W, 9 Inch Fixed Extension Column, Pole
CMS009W$41.60
CMS009, 9 Inch Fixed Extension Column, Pole
CMS009$41.60
Questions about this part
Will the CMS443 kit fit my suspended ceiling?
Yes, this kit is designed for 2' x 2' (60.33 x 60.33 cm) and 2' x 4' (60.33 x 121.92 cm) ceiling tiles. It is also compatible with 600 x 600 mm and 600 x 1200 mm tiles used in Canada, Mexico, and Europe.
What is included in the CMS443 bundle?
The CMS443 is a bundle that includes the CMS440 Above Tile Suspended Ceiling Kit and the CMS003 3" Fixed Pipe. It also provides a 10 ft (304.8 cm) safety cable, 20 ft (609.6 cm) strand wire, four turnbuckles, wood eye bolts, concrete anchors, and a chrome ring.
What is the maximum weight capacity for this mount?
The kit supports a total weight of 50 lbs (22.7 kg). This capacity must include the combined weight of the column, the mount, and the projector itself.
Does this kit require additional hardware for installation?
The kit includes hardware for mounting above the tile, such as wood eye bolts and concrete anchors. For specific installation procedures, refer to the CMS440 Installation Manual.
Is the CMS443 TAA compliant?
Yes, the CMS443 is TAA compliant and is UL Listed.
