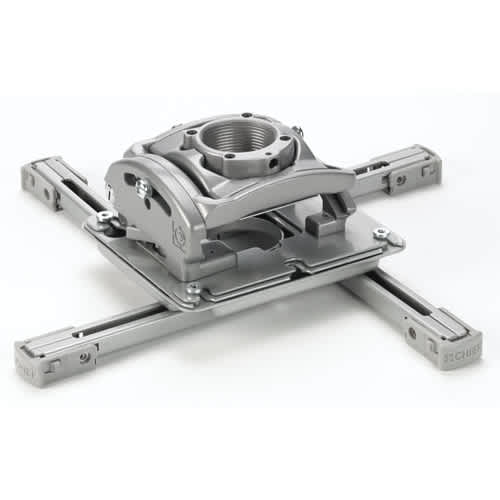

RPA Elite Universal Projector Mount with Keyed Locking (A version)-RPMAUS
Universal ceiling projector mount with keyed locking, independent roll-pitch-yaw, and micro-adjustable positioning
The RPMAUS is a universal ceiling mount from the RPA Elite series designed to maximize projector security and speed up installation. This mount features a Q-Lock Quick Release Lever that utilizes an integrated key and lock system, allowing for rapid connect/disconnect of the projector for servicing while enhancing overall security. It is designed with Centris Technology, which allows for effortless fingertip positioning and automatically self-adjusts to accommodate various projector weights. For precise alignment, Microzone Adjustments enable fast and accurate projector registration, which is particularly useful during flush mount installations. This model includes independent roll, pitch, and yaw capabilities for comprehensive positioning. To simplify maintenance, the mount offers quick connect/disconnect for easy access to lamps and filters on most projectors. It also includes integrated cable management to maintain a clean installation. This version features an 'A' type locking mechanism and is UL Listed.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Shipping Dimensions | 10.25" x 10.25" x 5"(260.4 x 260.4 x 127 mm) |
| Shipping Weight | 7 lbs (3.2 kg) |
| Weight Capacity | 50 lbs (22.7 kg) |
| Adjustability | Independent Roll-Pitch-YawMicro-Adjustable |
| Application | Ceiling |
| Color | Silver |
| Interface Type | Universal |
| Locking Type | A |
| Solution Type | Universal |
| TAA Compliant | No |
| UPC | 841872078038 |
| Certifications | UL Listed |
Resources
You'll need these with it
Single Electric Outlet Coupler
CMA502$80.80
C-Clamp
CMA362$135.20
I-Beam Clamp
CMA360$318.40
1.5 Inch to 1 Inch NPT Adapter
CMA151$29.60
Heavy Duty Swivel Adapter
CMA351$164.00
Internal Joist Ceiling Kit
CMA165$146.40
Truss Clamp
CMS380$138.40
Dual Electric Outlet Coupler
CMA504$106.40
2' x 2' Above Suspended Ceiling Storage Box and column drop with 2-Gang Filter & Surge
CMS492CP2$945.60
Extension Column and Ceiling Mount Kit
CMS443$164.80
2' x 2' Above Suspended Ceiling Storage Box with 2-Gang Filter & Surge
CMS492P2$827.20
SpeedConnect Above-Tile Suspended Ceiling Kit with 2-Gang Filter & Surge
CMS440P2$400.80
Verified fitment
Questions about this part
Will this mount fit my projector?
This mount is verified against 7,322 display models from 114 manufacturers, including EPSON BrightLink 435W, OPTOMA 4K500, PANASONIC PT-AE100E, NEC HT 1100, and BENQ 7753C.
How do I service the projector once it is mounted?
The Q-Lock Quick Release Lever allows for quick connect/disconnect of the projector for servicing, and the design provides easy access to lamps and filters on most models.
What is the weight capacity of the RPMAUS?
The RPMAUS has a weight capacity of 50 lbs (22.7 kg).
How does this differ from other RPA models?
The RPMAUS is available as one of three locking options; this specific SKU is the 'A' version with keyed locking.
What documentation is available for submittals?
Technical drawings, CAD drawings (DWG/RFA), and the RPM Installation Manual are available for project submittals.
