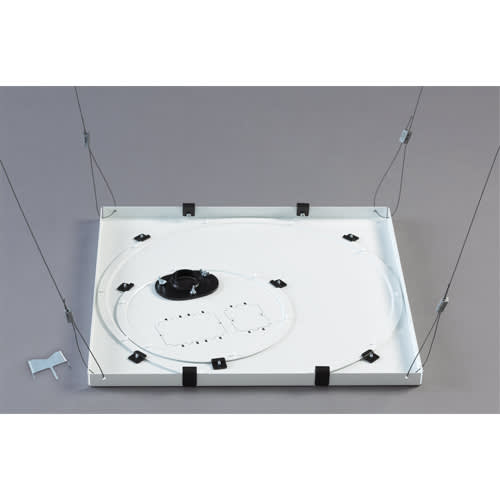

Speed-Connect Suspended Ceiling Tile Replacement Kit
Suspended ceiling replacement kit for 2' x 2' tiles, supporting a total load of 50 lbs (22.7 kg)
The Chief CMS445 Speed-Connect Suspended Ceiling Tile Replacement Kit is designed to provide an economic and efficient installation for projector mounts in suspended ceiling environments. This kit is engineered to install above the ceiling tile, clamping directly to the ceiling tracks to minimize complex assembly. It is rated to support a total weight of 50 lbs (22.7 kg), a figure that encompasses the combined weight of the column, the mount, and the projector itself. The kit is compatible with 2' x 2' (60.33 x 60.33 cm) ceiling tiles, as well as 600 x 600 mm or 600 x 1200 mm tiles commonly used in Europe, Canada, and Mexico. For installers looking for a more complete bundle, the CMA443 is available and includes the CMA440 Above Tile Suspended Ceiling Kit along with a CMS003 3" Fixed Pipe. This UL Listed kit is intended for replacement and provides a secure connection point for overhead AV equipment.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Ceiling Tile Size | 2' x 2' (60.33 x 60.33 cm) |
| Depth | 23.6 in (59.9 cm) |
| Height | 1.1 in (2.8 cm) |
| Overall Dimensions | 1.1" x 23.6" x 23.6" (29 x 600 x 600 mm) |
| Shipping Weight | 19.41 lbs (8.8 kg) |
| Weight Capacity | 50 lbs (22.7 kg) |
| Width | 23.6 in (59.9 cm) |
| Accessory Type | Suspended Ceiling |
All other specifications 9
| Application | Ceiling |
| Ceiling Plate Type | Speed-Connect |
| Color | White |
| Includes Power Outlet | No |
| Installation Type | Replacement |
| Special Features | Surge and Filtering |
| TAA Compliant | No |
| UPC | 841872092065 |
| Certifications | UL Listed |
Resources
Questions about this part
What is the maximum weight capacity for the CMS445?
The CMS445 supports a total weight of 50 lbs (22.7 kg), which includes the weight of the column, the mount, and the projector.
Will this kit work with 2' x 2' ceiling tiles?
Yes, the CMS445 is designed for 2' x 2' (60.33 x 60.33 cm) tiles, and is also compatible with 600 x 600 mm and 600 x 1200 mm tiles.
How does this differ from the CMA443 bundle?
The CMS445 is a replacement kit, whereas the CMA443 is a bundle that includes the CMA440 kit and a CMS003 3" Fixed Pipe.
Does this kit include power outlet options?
The CMS445 does not include a power outlet, though the kit does feature two outlet knockouts for cable management.
Which document should I use for installation planning?
For installation procedures, refer to the CMS445 Installation Manual, and for technical dimensions, consult the CMS445 Technical Drawing.
