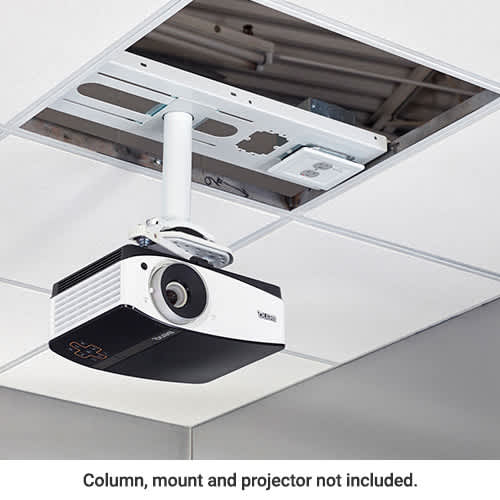

SpeedConnect Above-Tile Suspended Ceiling Kit with 2-Gang Filter & Surge
Above-tile suspended ceiling kit featuring a 2-gang power filter and surge protector for 2' x 2' or 2' x 4' tiles
The Chief CMS440P2 is a SpeedConnect above-tile suspended ceiling kit designed for efficient projector mounting in commercial environments. This kit is engineered to clamp directly to existing ceiling tracks, making it an economical and fast installation option for suspended ceiling grids. It is compatible with 2' x 2' (60.33 x 60.33 cm) and 2' x 4' (60.33 x 121.92 cm) ceiling tiles. The system includes an integrated 2-gang power outlet featuring built-in surge protection and filtering to protect sensitive audiovisual equipment. The power outlet provides an output of 15A, 1875 W continuous, utilizing a Type 3 Surge Protective Device (SPD) with a Voltage Protection Rating (VPR) of 600V L-N. The total weight capacity for this kit, which accounts for the column, mount, and projector, is 50 lbs (22.7 kg). This TAA compliant and UL Listed solution is an ideal choice for professional installers seeking a streamlined above-tile installation.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Ceiling Tile Size | 2' x 2' (60.33 x 60.33 cm) and 2' x 4' (60.33 x 121.92 cm) |
| Depth | 23.4 in (59.4 cm) |
| Height | 1.3 in (3.3 cm) |
| Shipping Dimensions | 27" x 9.5" x 6" (685.8 x 241.3 x 152.4 mm) |
| Shipping Weight | 10.5 lbs (4.8 kg) |
| Weight Capacity | 50 lbs (22.7 kg) |
| Width | 8 in (20.3 cm) |
| Accessory Type | PowerSuspended Ceiling |
All other specifications 9
| Application | Ceiling |
| Ceiling Plate Type | Speed-Connect |
| Color | White |
| Includes Power Outlet | Yes |
| Installation Type | Above Tile |
| Special Features | Surge and Filtering |
| TAA Compliant | Yes |
| UPC | 841872166766 |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
Questions about this part
Will the CMS440P2 fit my suspended ceiling?
Yes, this kit is designed for 2' x 2' (60.33 x 60.33 cm) and 2' x 4' (60.33 x 121.92 cm) ceiling tiles and clamps to existing tracks.
What is the total weight capacity for this kit?
The kit supports a total weight of 50 lbs (22.7 kg), which includes the weight of the column, the mount, and the projector.
Does this kit include power protection?
Yes, it features an integrated 2-gang power outlet with a Type 3 Surge Protective Device (SPD) providing 600V L-N voltage protection.
What electrical specifications does the outlet have?
The integrated power outlet provides an output of 15A, 1875 W continuous power.
Is there a different version of this kit available?
For a complete assembly, the CMA443 is available as a bundle that includes the CMS440 kit and a CMS003 3" Fixed Pipe.
