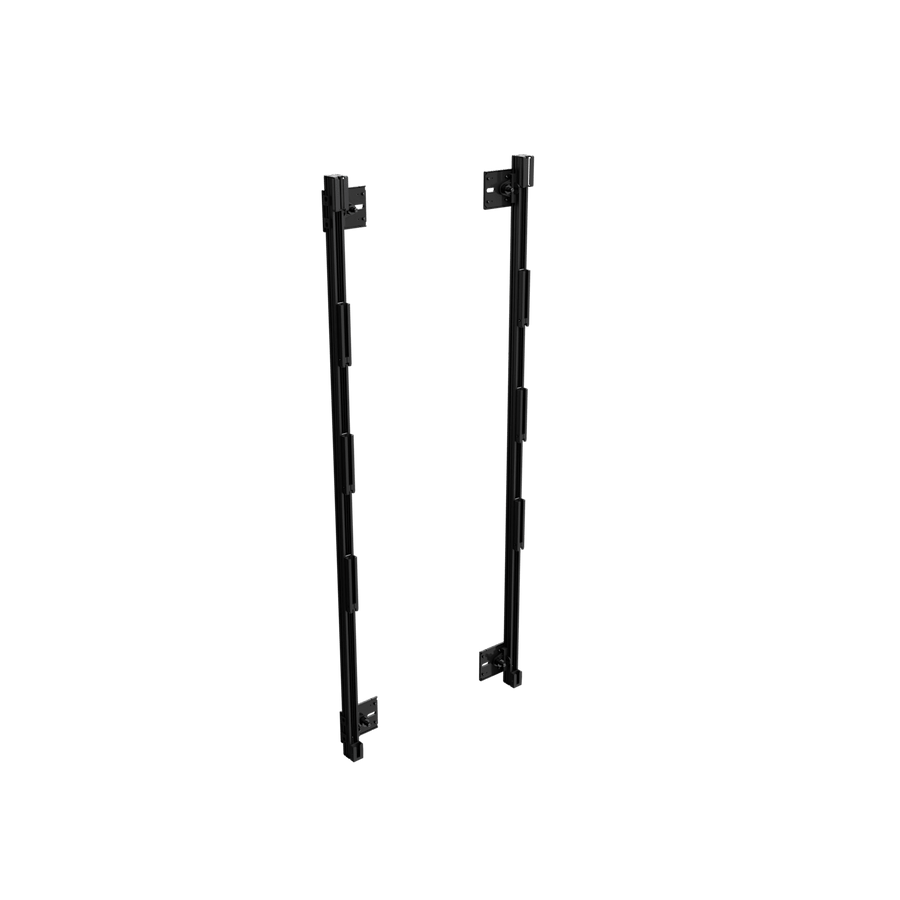

TiLED® dvLED Universal 27" Wall Mount, 4 High Starter
Universal starter mount for 27" dvLED panels, supporting 4 panels with full 3-axis adjustability for precise pixel alignment
The Chief DVM27U4 is a TiLED® dvLED Universal Starter Mount designed to facilitate the installation of large-format direct view LED video walls. This modular starter unit is engineered to hold 4 display panels and serves as the foundational base for a video wall. When combined with extender mounts, the system can be scaled vertically to achieve the desired total wall height. The DVM27U4 features patent-pending floating button-capture technology, making it compatible with 90% of interlocking dvLED panels from leading manufacturers. This includes verified compatibility with Absen, LG Electronics, INFiLED, Planar-Leyard, Samsung, Sharp, Sony, and Unilumin. To ensure a flawless, uniform display even with pixel pitches below 1 mm, the mount provides total X-Y-Z axis adjustability. This includes micro-adjustments and a 2 in (50.8 mm) manual height adjustment, alongside a 0.32 in (0.8 cm) lateral shift, allowing installers to compensate for uneven wall surfaces and achieve perfect pixel alignment.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Lateral Shift | 0.32 in (0.8 cm) |
| Manual Height Adjustment | 2 in (50.8 mm) |
| Minimum Depth | 2 in (5.1 cm) |
| Number of Panels | 4 |
| Shipping Dimensions | 60.5" x 9.75" x 3" (153.7 x 24.8 x 7.6 cm) |
| Shipping Weight | 15.1 lbs (6.9 kg) |
| Size | 27.5" Class (600mm W x 337.5mm H) |
| Typical Screen Size | 27" dVLED Panels |
All other specifications 14
| Wall Stud Compatibility | Meant for plywood-reinforced walls |
| Weight Capacity | 250 lbs (113.4 kg) |
| Accessory Type | InstallationMounting Brackets |
| Adjustability | FixedHeight AdjustableLateral ShiftMicro-Adjustable |
| Adjustments | .625" |
| Application | Wall |
| Color | Black |
| Orientation | Landscape |
| Product Type | Starter |
| Solution Type | Universal |
| Special Features | LED Video WallModularMulti-DisplaySecurityStacked |
| TAA Compliant | Yes |
| UPC | 841872178172 |
| Certifications | TAA |
Resources
You'll need these with it
TiLED® dvLED Universal Installation Spacer Tool
DVA700$200.00
TiLED® dvLED Universal M12 Mounting Button Kit, 25 panels
DVAM12-25$380.00
TiLED® dvLED Universal Capture H-Block Kit, Pair
DVAHBKITComing soon
TiLED® dvLED Universal M6 Mounting Button Kit, 1 panel
DVAM6-1$15.20
TiLED® dvLED Universal M12 Mounting Button Kit, 1 panel
DVAM12-1$15.20
TiLED® dvLED Universal M8 Mounting Button Kit, 10 panels
DVAM8-10$152.00
TiLED® dvLED Universal M6 Mounting Button Kit, 25 panels
DVAM6-25$380.00
TiLED® dvLED Universal M6 Mounting Button Kit, 10 panels
DVAM6-10$152.00
TiLED® dvLED Universal M12 Mounting Button Kit, 10 panels
DVAM12-10$152.00
TiLED® dvLED Universal M8 Mounting Button Kit, 25 panels
DVAM8-25$380.00
TiLED® dvLED Universal M8 Mounting Button Kit, 1 panel
DVAM8-1$15.20
PD Slim High Density Vertical Power Strip, 8 Outlet, 15A, Basic Surge Protection - 10 ft Cord
PD-815SC$210.60
Verified fitment
Questions about this part
Will this mount work with my specific dvLED panels?
Yes, it is verified against 370 display models from 21 manufacturers, including Absen A27 Series, LG LAS014DB2-F, and Unilumin ULW III Series.
How many panels can the DVM27U4 hold?
This specific starter SKU is designed to hold 4 panels and serves as the base for your video wall.
What is required to build a taller video wall using this starter mount?
To increase the height of your installation, you must add extender mounts to this starter base to achieve your desired total wall height.
What kind of wall installation is required for these mounts?
These mounts are meant for use with plywood-reinforced walls to ensure structural stability.
Which documents should I use for a submittal?
Installers can refer to the DVM27U4 Tech Drawing (PDF) for dimensions or the DVM27U Installation Manual (PDF) for mounting procedures.
