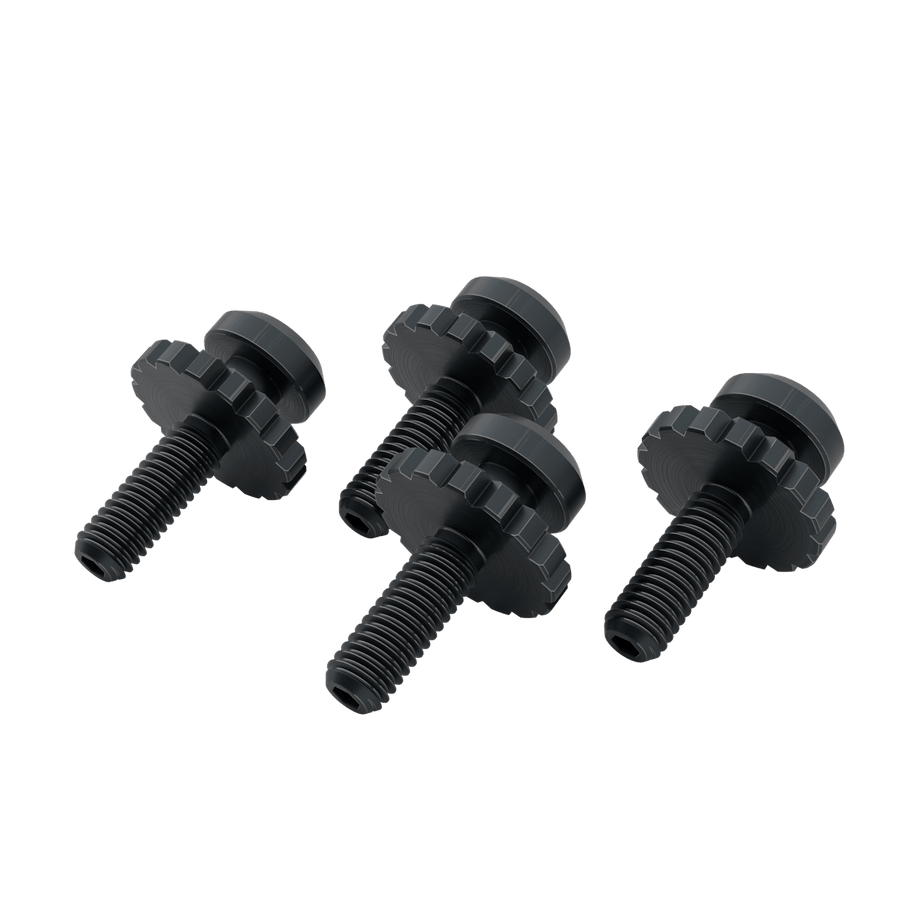

TiLED® dvLED Universal M6 Mounting Button Kit, 1 panel
M6 mounting button kit for a single panel, providing 0.125" (3.2 mm) of adjustment depth
The Chief DVAM6-1 is a TiLED® dvLED Universal M6 Mounting Button Kit designed for single panel installations. These mounting buttons are installed directly into the back of the LED display, allowing TiLED® Universal mounts to be compatible with most panels currently on the market. This kit provides 0.125" (3.2 mm) of adjustment for micro depth, which can be performed with front or side access. The buttons feature a Black Zinc Finish and are intended for wall applications. This SKU is a 1-panel kit containing 4 buttons. For larger installations, Chief offers multi-panel kits containing 40 buttons for 10-panel setups or 100 buttons for 25-panel setups.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Package Count | 1 Panel / 4 Buttons |
| Size | M6 |
| Accessory Type | InstallationMounting Brackets |
| Adjustments | 0.125" (3.2 mm) |
| Application | Wall |
| Finish | Black Zinc Finish |
| Product Type | Button |
| UPC | 841872178578 |
| Color | Black Zinc Finish |
Resources
You'll need these with it
Chief DVM0500U3E TiLED® dvLED Universal 500mm, 3 High Extender
DVM0500U3E$540.00
Chief DVM0270U1E TiLED® dvLED Universal 270mm, 1 High Extender
DVM0270U1E$180.00
Chief DVM0500U2E TiLED® dvLED Universal 500mm, 2 High Extender
DVM0500U2E$360.00
TiLED® dvLED Universal Capture H-Block Kit, Pair
DVAHBKITComing soon
Chief DVM0250U1E TiLED® dvLED Universal 250mm, 1 High Extender
DVM0250U1E$180.00
Chief DVM0540U3E TiLED® dvLED Universal 540mm, 3 High Extender
DVM0540U3E$540.00
TiLED® dvLED Universal 27" Wall Mount, 2 High Extender
DVM27U2E$240.00
TiLED® dvLED Universal 27" Wall Mount, 3 High Starter
DVM27U3$360.00
TiLED® dvLED Universal 27" Wall Mount, 3 High Extender
DVM27U3E$360.00
TiLED® dvLED Universal 27" Wall Mount, 4 High Extender
DVM27U4E$480.00
Chief DVM0540U3 TiLED® dvLED Universal 540mm, 3 High Starter
DVM0540U3$540.00
Chief DVM0540U2E TiLED® dvLED Universal 540mm, 2 High Extender
DVM0540U2E$360.00
Questions about this part
What is included in the DVAM6-1 kit?
This 1-panel kit includes 4 M6 mounting buttons for use with TiLED® dvLED Universal mounts.
How many buttons do I need for a large video wall?
A 10-panel setup requires a 40-button kit, while a 25-panel setup requires 100 buttons.
Can I adjust the display depth after it is installed?
Yes, these buttons allow for micro depth adjustments of 0.125" (3.2 mm) via front or side access.
What other sizes of mounting buttons are available?
Extra mounting button hardware kits are available in M5, M6, M8, M10, and M12 sizes.
Which documents should I use for installation?
The TiLED dvLED Video Wall Mounts Installation Manual contains the necessary setup procedures.
