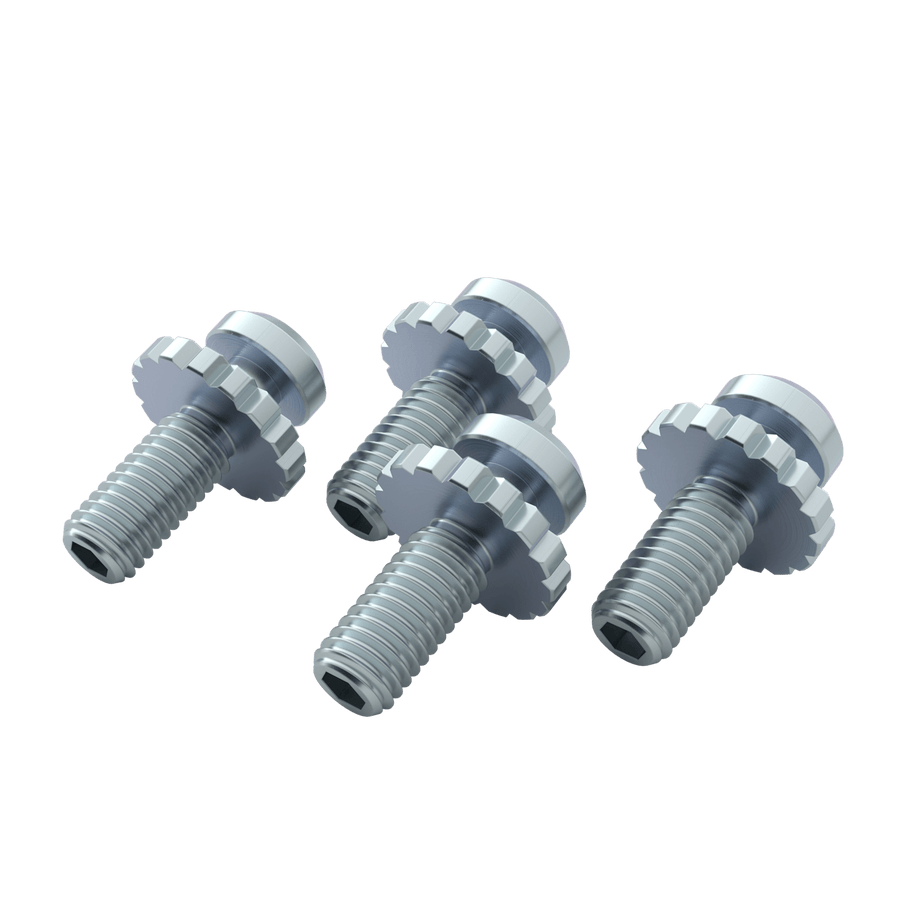

TiLED® dvLED Universal M8 Mounting Button Kit, 10 panels
M8 mounting button kit for 10 panels, providing 40 buttons for dvLED micro depth adjustments
The DVAM8-10 is a TiLED® dvLED Universal M8 Mounting Button Kit designed for large-scale direct view LED installations. This kit includes 40 buttons to support a 10-panel configuration, ensuring that installers have the necessary hardware to secure panels to TiLED® Universal mounts. These buttons install directly into the back of the LED display, allowing for compatibility with most current panel models on the market. Because these buttons facilitate front or side access, installers can perform precise 0.125" (3.2 mm) micro depth adjustments during the installation process. These buttons feature a clear zinc finish for durability and are intended for wall applications. This specific M8 size is part of a wider series of hardware kits available in M5, M6, M10, and M12 sizes to accommodate different manufacturer requirements.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Package Count | 10 Panels / 40 Buttons |
| Size | M8 |
| Accessory Type | InstallationMounting Brackets |
| Adjustments | 0.125" (3.2 mm) |
| Application | Wall |
| Finish | Clear Zinc Finish |
| Product Type | Button |
| UPC | 841872178646 |
| Color | Clear Zinc Finish |
Resources
You'll need these with it
Chief DVM0500U3E TiLED® dvLED Universal 500mm, 3 High Extender
DVM0500U3E$540.00
Chief DVM0270U1E TiLED® dvLED Universal 270mm, 1 High Extender
DVM0270U1E$180.00
Chief DVM0500U2E TiLED® dvLED Universal 500mm, 2 High Extender
DVM0500U2E$360.00
TiLED® dvLED Universal Capture H-Block Kit, Pair
DVAHBKITComing soon
Chief DVM0250U1E TiLED® dvLED Universal 250mm, 1 High Extender
DVM0250U1E$180.00
Chief DVM0540U3E TiLED® dvLED Universal 540mm, 3 High Extender
DVM0540U3E$540.00
TiLED® dvLED Universal 27" Wall Mount, 2 High Extender
DVM27U2E$240.00
TiLED® dvLED Universal 27" Wall Mount, 3 High Starter
DVM27U3$360.00
TiLED® dvLED Universal 27" Wall Mount, 3 High Extender
DVM27U3E$360.00
TiLED® dvLED Universal 27" Wall Mount, 4 High Extender
DVM27U4E$480.00
Chief DVM0540U3 TiLED® dvLED Universal 540mm, 3 High Starter
DVM0540U3$540.00
Chief DVM0540U2E TiLED® dvLED Universal 540mm, 2 High Extender
DVM0540U2E$360.00
Questions about this part
Will these buttons fit my dvLED panels?
These M8 buttons are designed to be installed into the back of the display to make TiLED® Universal mounts compatible with most panels currently on the market.
How many panels can I cover with the DVAM8-10?
The DVAM8-10 kit is packaged for 10 panels and contains a total of 40 buttons.
Can I adjust the panel depth once the mount is installed?
Yes, these buttons allow for 0.125" (3.2 mm) micro depth adjustments via front or side access.
What other sizes are available for TiLED® mounting buttons?
Additional hardware kits are available in M5, M6, M10, and M12 sizes to match different panel specifications.
What document is used for submittals for these mounts?
Installers can refer to the TiLED dvLED Video Wall Mounts Installation Manual (PDF) for technical guidance.
