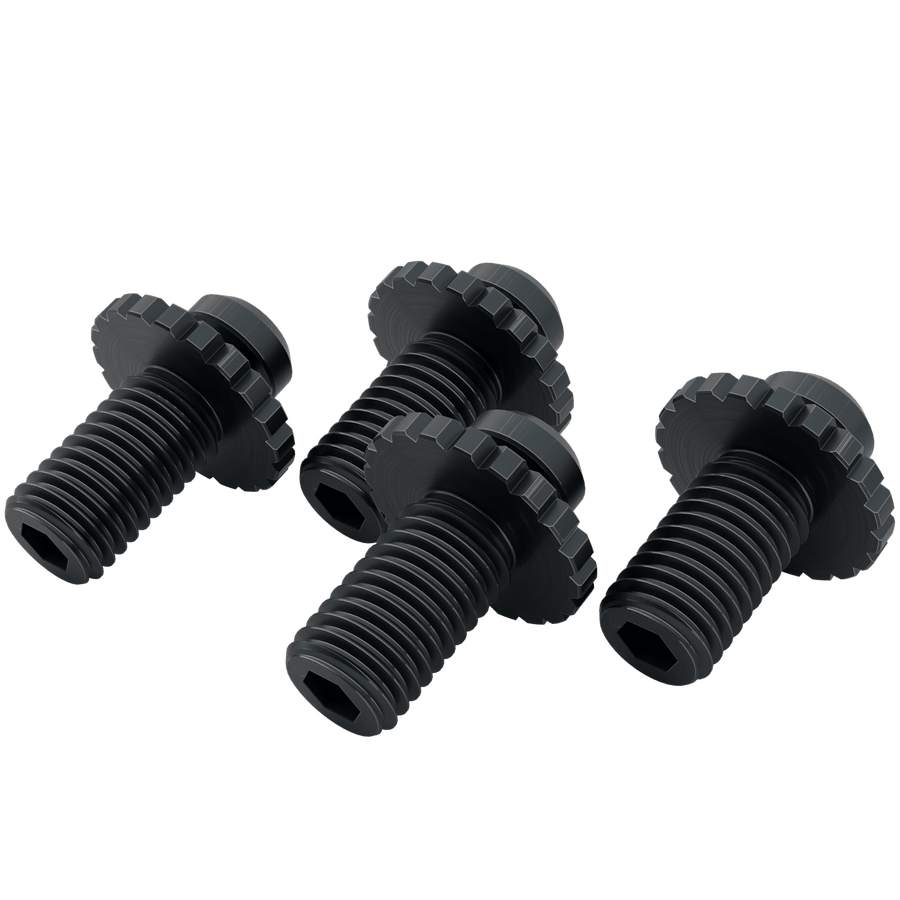

TiLED® dvLED Universal M12 Mounting Button Kit, 10 panels
M12 mounting button kit for 10 dvLED panels, featuring 40 buttons and 0.125" (3.2 mm) micro depth adjustments
The DVAM12-10 is a TiLED® dvLED Universal M12 Mounting Button Kit designed to facilitate the installation of video walls by attaching directly to the back of LED displays. This kit provides the hardware necessary to make TiLED® Universal mounts compatible with most panels currently on the market. Each kit contains a package count of 10 panels worth of hardware, providing a total of 40 buttons. These buttons are essential for achieving precise alignment, as they allow for micro depth adjustments of 0.125" (3.2 mm) during the installation process. This adjustability can be accessed from the front or the side, aiding in the serviceability of the display once it is mounted. The buttons feature a Black Zinc Finish and are intended for wall applications.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Package Count | 10 Panels / 40 Buttons |
| Size | M12 |
| Accessory Type | InstallationMounting Brackets |
| Adjustments | 0.125" (3.2 mm) |
| Application | Wall |
| Finish | Black Zinc Finish |
| Product Type | Button |
| UPC | 841872178592 |
| Color | Black Zinc Finish |
Resources
You'll need these with it
Chief DVM0500U3E TiLED® dvLED Universal 500mm, 3 High Extender
DVM0500U3E$540.00
Chief DVM0270U1E TiLED® dvLED Universal 270mm, 1 High Extender
DVM0270U1E$180.00
Chief DVM0500U2E TiLED® dvLED Universal 500mm, 2 High Extender
DVM0500U2E$360.00
TiLED® dvLED Universal Capture H-Block Kit, Pair
DVAHBKITComing soon
Chief DVM0250U1E TiLED® dvLED Universal 250mm, 1 High Extender
DVM0250U1E$180.00
Chief DVM0540U3E TiLED® dvLED Universal 540mm, 3 High Extender
DVM0540U3E$540.00
TiLED® dvLED Universal 27" Wall Mount, 2 High Extender
DVM27U2E$240.00
TiLED® dvLED Universal 27" Wall Mount, 3 High Starter
DVM27U3$360.00
TiLED® dvLED Universal 27" Wall Mount, 3 High Extender
DVM27U3E$360.00
TiLED® dvLED Universal 27" Wall Mount, 4 High Extender
DVM27U4E$480.00
Chief DVM0540U3 TiLED® dvLED Universal 540mm, 3 High Starter
DVM0540U3$540.00
Chief DVM0540U2E TiLED® dvLED Universal 540mm, 2 High Extender
DVM0540U2E$360.00
Questions about this part
How many panels does the DVAM12-10 kit cover?
This kit is designed for 10 panels, providing a total of 40 mounting buttons.
Can I adjust the display depth after it is mounted?
Yes, these buttons allow for micro depth adjustments of 0.125" (3.2 mm) and can be serviced from the front or the side.
What M-size buttons do I need for my display?
This specific SKU is the M12 size; other hardware kits are available in M5, M6, M8, and M10 sizes.
Is there a different quantity available for larger video walls?
Yes, kits are also available in 1-panel (4 buttons) and 25-panel (100 buttons) configurations.
What is the finish of the DVAM12-10 buttons?
These mounting buttons feature a Black Zinc Finish.
