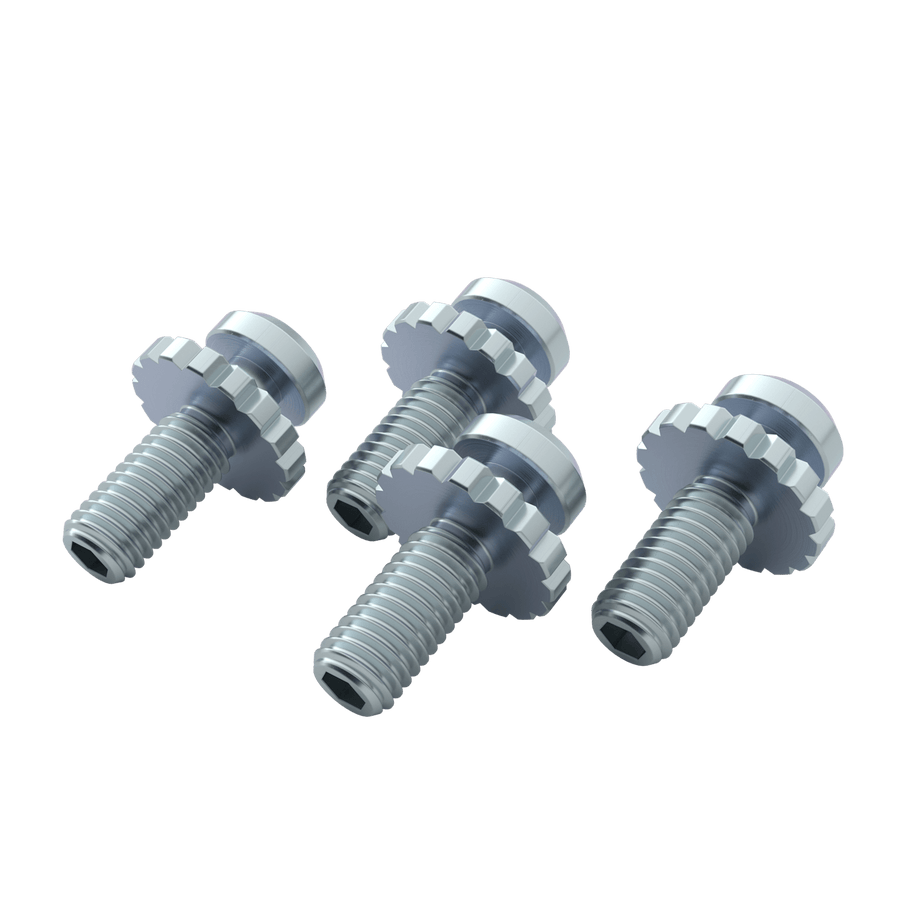

TiLED® dvLED Universal M8 Mounting Button Kit, 1 panel
M8 mounting button kit for single panel installation, featuring clear zinc finish and 0.125" micro depth adjustment
The Chief DVAM8-1 TiLED® dvLED Universal M8 Mounting Button Kit is designed to enable compatibility between TiLED® Universal mounts and most panels currently on the market. This kit is intended for wall applications and includes 4 mounting buttons required for a single panel installation. These buttons are installed directly into the back of the LED display, facilitating front or side access for necessary micro depth adjustments of 0.125" (3.2 mm). The hardware features a clear zinc finish for durability. While this specific SKU is packaged for one panel, additional hardware kits are available in M5, M6, M8, M10, and M12 sizes to accommodate different panel requirements.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Package Count | 1 Panel / 4 Buttons |
| Size | M8 |
| Accessory Type | InstallationMounting Brackets |
| Adjustments | 0.125" (3.2 mm) |
| Application | Wall |
| Finish | Clear Zinc Finish |
| Product Type | Button |
| UPC | 841872178639 |
| Color | Clear Zinc Finish |
Resources
You'll need these with it
Chief DVM0500U3E TiLED® dvLED Universal 500mm, 3 High Extender
DVM0500U3E$540.00
Chief DVM0270U1E TiLED® dvLED Universal 270mm, 1 High Extender
DVM0270U1E$180.00
Chief DVM0500U2E TiLED® dvLED Universal 500mm, 2 High Extender
DVM0500U2E$360.00
TiLED® dvLED Universal Capture H-Block Kit, Pair
DVAHBKITComing soon
Chief DVM0250U1E TiLED® dvLED Universal 250mm, 1 High Extender
DVM0250U1E$180.00
Chief DVM0540U3E TiLED® dvLED Universal 540mm, 3 High Extender
DVM0540U3E$540.00
TiLED® dvLED Universal 27" Wall Mount, 2 High Extender
DVM27U2E$240.00
TiLED® dvLED Universal 27" Wall Mount, 3 High Starter
DVM27U3$360.00
TiLED® dvLED Universal 27" Wall Mount, 3 High Extender
DVM27U3E$360.00
TiLED® dvLED Universal 27" Wall Mount, 4 High Extender
DVM27U4E$480.00
Chief DVM0540U3 TiLED® dvLED Universal 540mm, 3 High Starter
DVM0540U3$540.00
Chief DVM0540U2E TiLED® dvLED Universal 540mm, 2 High Extender
DVM0540U2E$360.00
Questions about this part
How many buttons are included in the DVAM8-1 kit?
This kit contains 4 mounting buttons, which is the required amount for a 1-panel installation.
Does this kit allow for display depth adjustment?
Yes, these buttons allow for 0.125" (3.2 mm) of micro depth adjustment via front or side access.
What other sizes of TiLED mounting buttons are available?
Additional hardware kits are available in M5, M6, M10, and M12 sizes in various quantities.
What is the difference between the DVAM8-1 and the 10-panel kit?
The DVAM8-1 is a single-panel kit with 4 buttons, whereas the 10-panel kit includes 40 buttons.
Which document should I use for installation instructions?
You can refer to the TiLED dvLED Video Wall Mounts Installation Manual for guidance on this series.
