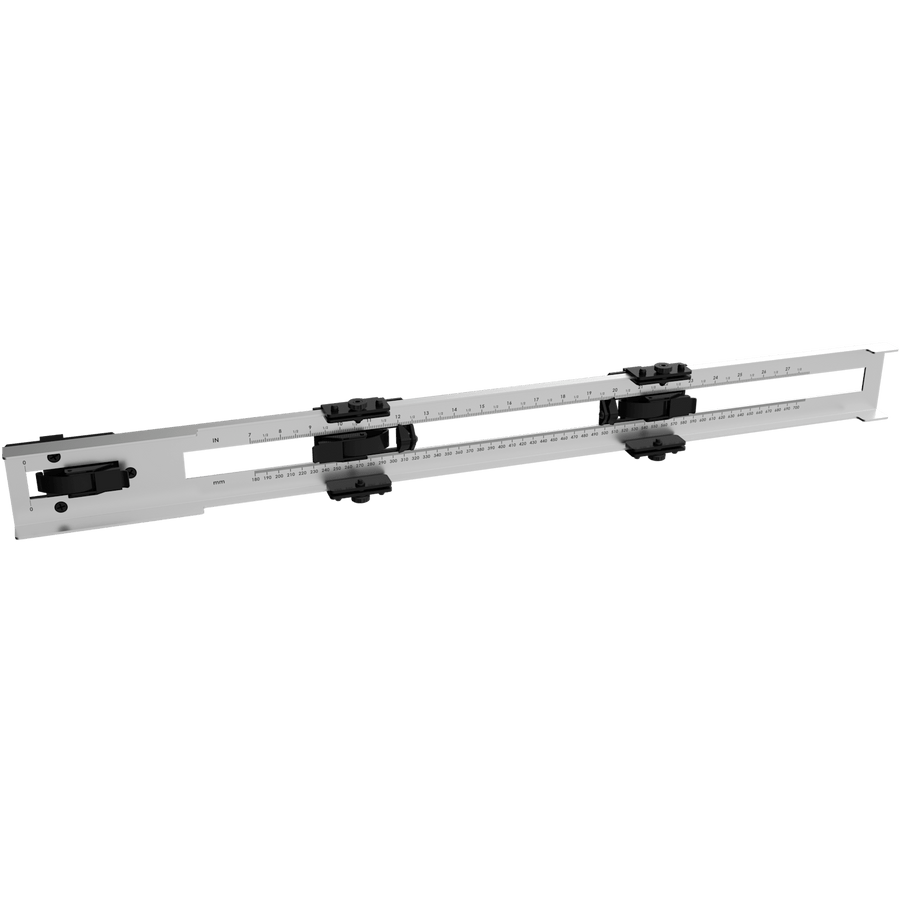

TiLED® dvLED Universal Installation Spacer Tool
Reusable installation tool for TiLED® dvLED video walls that eliminates manual measuring by copying cabinet dimensions across mounting columns
The Chief DVA700 TiLED® dvLED Universal Installation Spacer Tool is designed to significantly reduce the labor and time required for complex video wall deployments. When installing dvLED panels, such as 27" dVLED panels, manual measurement errors can lead to misaligned columns. This reusable tool allows installers to capture the precise width of a cabinet's hole pattern or edge-to-edge dimensions and then "copy and paste" those exact measurements across the wall. Once the first mounting column is leveled and secured with lag bolts, the DVA700 is latched onto the upright to transfer the spacing to subsequent columns, ensuring perfect alignment throughout the grid. The tool features a 27.5" (700mm) adjustment range and is constructed with a brushed stainless steel finish. It is TAA compliant and functions as a critical solution for maintaining precision when laying out mounting structures for large-scale LED displays.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Height | 4 in (10.2 cm) |
| Length | 36 in (91.4 cm) |
| Product Weight | 2.7 lbs (1.2 kg) |
| Typical Screen Size | 27" dVLED Panels |
| Width | 8 in (20.3 cm) |
| Accessory Type | InstallationMounting Brackets |
| Adjustments | 27.5" (700mm) |
| Application | Wall |
All other specifications 7
| Color | Brushed Stainless Steel |
| Product Type | Installation Tool |
| Solution Type | Installation Tool |
| Special Features | Reusable Installation Tool |
| TAA Compliant | Yes |
| UPC | 841872178936 |
| Certifications | TAA |
Resources
You'll need these with it
Chief DVM0500U3E TiLED® dvLED Universal 500mm, 3 High Extender
DVM0500U3E$540.00
Chief DVM0270U1E TiLED® dvLED Universal 270mm, 1 High Extender
DVM0270U1E$180.00
Chief DVM0500U2E TiLED® dvLED Universal 500mm, 2 High Extender
DVM0500U2E$360.00
Chief DVM0250U1E TiLED® dvLED Universal 250mm, 1 High Extender
DVM0250U1E$180.00
Chief DVM0540U3E TiLED® dvLED Universal 540mm, 3 High Extender
DVM0540U3E$540.00
TiLED® dvLED Universal 27" Wall Mount, 2 High Extender
DVM27U2E$240.00
TiLED® dvLED Universal 27" Wall Mount, 3 High Starter
DVM27U3$360.00
TiLED® dvLED Universal 27" Wall Mount, 3 High Extender
DVM27U3E$360.00
TiLED® dvLED Universal 27" Wall Mount, 4 High Extender
DVM27U4E$480.00
Chief DVM0540U3 TiLED® dvLED Universal 540mm, 3 High Starter
DVM0540U3$540.00
Chief DVM0540U2E TiLED® dvLED Universal 540mm, 2 High Extender
DVM0540U2E$360.00

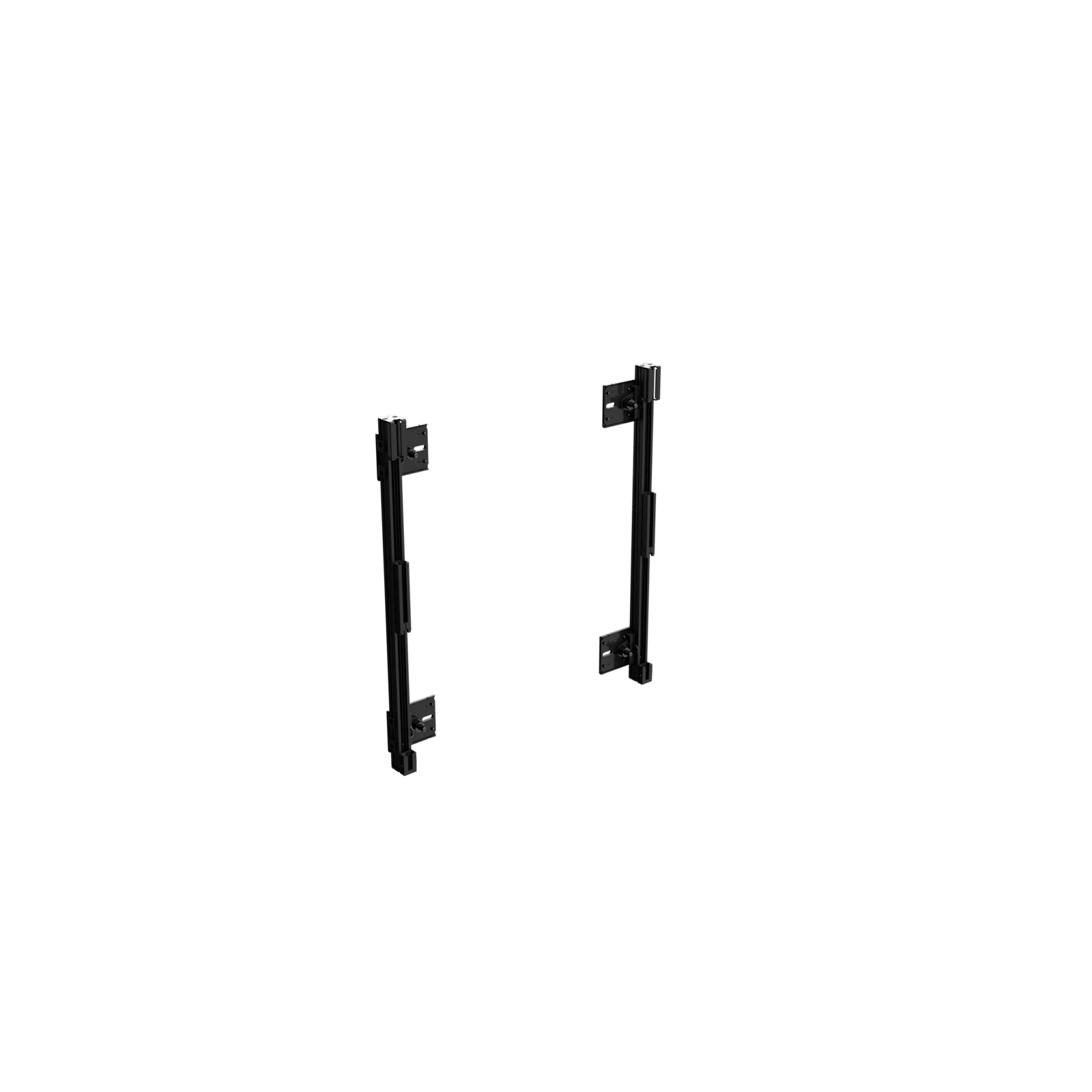

TiLED® dvLED Universal 27" Wall Mount, 2 High Starter
DVM27U2$240.00
Questions about this part
How does the DVA700 simplify video wall installation?
It acts as a physical template that locks in the width of an LED cabinet, allowing you to transfer the same measurement to every subsequent mounting column without re-measuring.
What is the adjustment range of the DVA700?
The tool features a 27.5" (700mm) adjustment capability to handle different cabinet widths and hole patterns.
Is the DVA700 TAA compliant?
Yes, this installation tool is TAA compliant for use in projects requiring compliance with the Trade Agreements Act.
What is the purpose of the DVA700 in a dvLED installation?
It is used to ensure precise, consistent spacing between mounting columns by transferring exact cabinet dimensions from the first installed column to the rest of the array.
What document is needed for submittals regarding this tool?
You can refer to the TiLED Universal Spacer Tool Installation Manual (PDF) for detailed installation procedures and technical guidance.
