TiLED® dvLED Universal M12 Mounting Button Kit, 1 panel
M12 size mounting button kit for a single dvLED panel, featuring a black zinc finish and micro depth adjustability

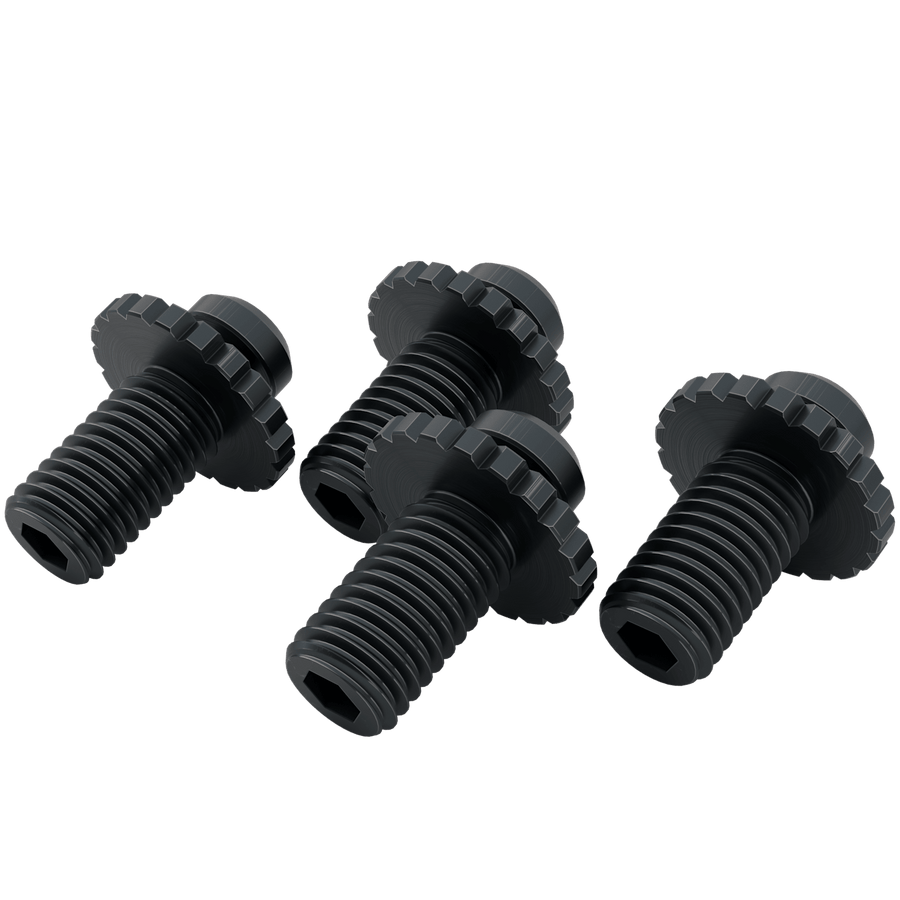

The Chief DVAM12-1 is a single-panel mounting button kit designed for the TiLED® dvLED Universal Mounting System. These M12 mounting buttons are installed directly into the back of the LED display, providing compatibility with most third-party panels currently on the market. This specific kit is intended for wall applications and features a black zinc finish. Each kit provides 0.125" (3.2 mm) of adjustment, allowing for micro depth adjustments from the front or side once the display is in place. This SKU is part of a series of M12 hardware kits; for larger installations, Chief offers kits containing 40 buttons for 10-panel arrays or 100 buttons for 25-panel arrays.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Package Count | 1 Panel / 4 Buttons |
| Size | M12 |
| Accessory Type | InstallationMounting Brackets |
| Adjustments | 0.125" (3.2 mm) |
| Application | Wall |
| Finish | Black Zinc Finish |
| Product Type | Button |
| UPC | 841872178585 |
| Color | Black Zinc Finish |
