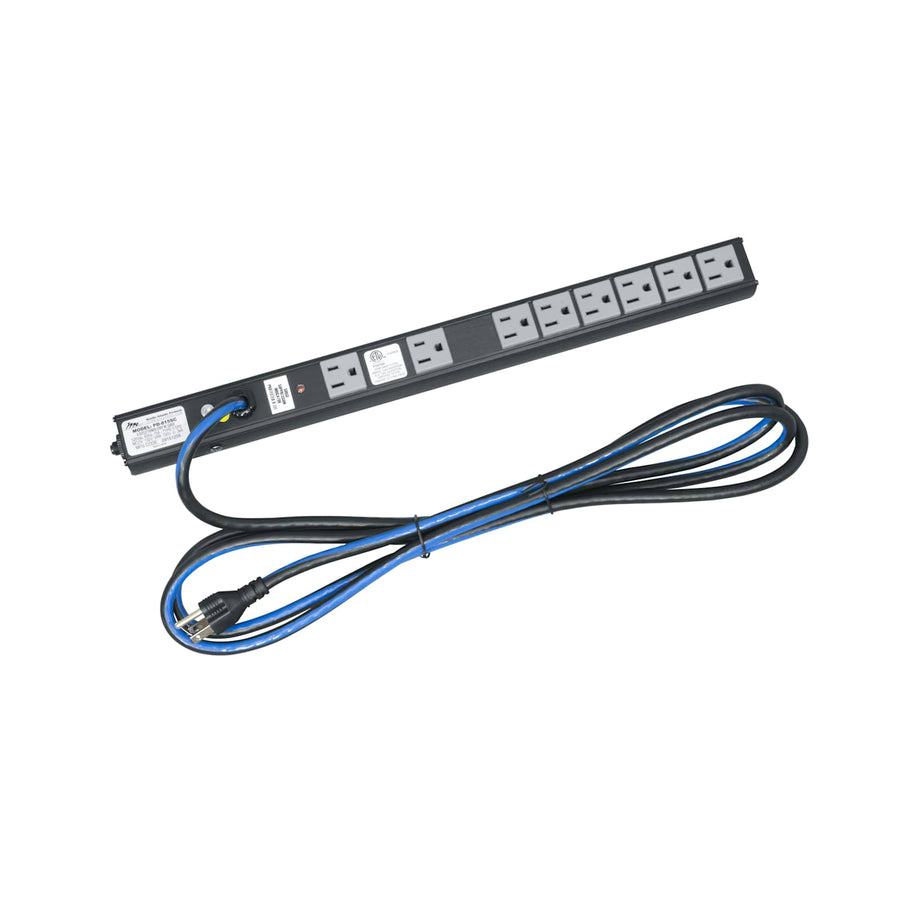

PD Slim High Density Vertical Power Strip, 8 Outlet, 15A, Basic Surge Protection - 10 ft Cord
Slim high density vertical power strip with 8 outlets, 15A capacity, and a 10 ft SignalSAFE cord
The PD-815SC is a high-density vertical power strip designed for racks packed with power-hungry AV equipment. This Select Series PDU provides 8 outlets within a slim 1.72" (4.4 cm) width and 1.78" (4.5 cm) depth, allowing it to be mounted unobtrusively at the rear of a rack. It operates on 120 VAC with a 15 Amp rating and features basic surge protection to safeguard connected devices. To minimize potential electromagnetic interference from AC magnetic fields, the unit is equipped with a 10 ft (3.1 m) SignalSAFE power cord. Installation is straightforward using the included mounting hardware, which allows the strip to snap onto the side of the rack. This ETL Listed component is an efficient solution for installers needing to maximize outlet density while minimizing the vertical space consumed within a rack enclosure.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Amps | 15 Amp |
| Cord Length | 10 ft (3.1 m) |
| Depth | 1.78 in (4.5 cm) |
| Height | 18.6 in (47.2 cm) |
| Shipping Weight | 2.7 lbs (1.2 kg) |
| Volts AC | 120 VAC |
| Width | 1.72 in (4.4 cm) |
| Cable Type | Corded |
All other specifications 8
| Finish | Black Anodized |
| Number of Circuits | 1 |
| Outlet Count | 8 |
| Plug Type | 5-15P |
| Surge Protection Type | Basic |
| TAA Compliant | No |
| UPC | 656747047657 |
| Certifications | ETL Listed |
Resources
You'll need these with it
NEXSYS™ 9 Outlet, 15 Amp Rackmount Power with Series Surge Protection
PDX-915R-SP$907.20
NEXSYS™ 2 Outlet, 15 Amp Compact Power with Multi-Stage Surge Protection
PDX-215C$262.80
Compact Premium+ PDU With RackLink™, 4 Outlet 15A & 2-Stage Surge
RLNK-P415$1,360.80
1 RU Select Series UPS Backup Power, 1000VA
UPS-S1000R$1,377.00
NEXSYS™ 2000VA, 20 Amp UPS Backup Power System with RackLink™, Individual Outlet Control
UPX-RLNK-2000R-8$3,850.20
Rackmount Power, 9 Outlet, 15A, Basic Surge Protection - 9 ft Cord
PD-915R$223.20
NEXSYS™ 2000VA, 20 Amp UPS Backup Power System with RackLink™, Bank Outlet Control
UPX-RLNK-2000R-2$3,519.90
Select Series PDU with RackLink™, 9 Outlet
RLNK-915R$715.50
NEXSYS™ 2000VA, 20 Amp Online UPS Backup Power System with RackLink™, Bank Outlet Control
UPX-RLNK-OL2000R-2$5,169.60
2 RU Select Series UPS Backup Power, 2200VA
UPS-S2200R$1,935.00
Questions about this part
Will the PD-815SC fit in my rack space?
Yes, its slim 1.72" (4.4 cm) width and 1.78" (4.5 cm) depth allow it to mount vertically at the rear of the rack without consuming significant space.
How does the power cord help with interference?
The included 10 ft (3.1 m) SignalSAFE™ power cord is designed to minimize potential interference from AC magnetic fields generated by other equipment in the rack.
What is required for installation?
The mounting hardware is included with the PD-815SC, allowing you to snap the PDU onto the side of the rack quickly.
Does this power strip include surge protection?
The PD-815SC features basic surge protection to help protect connected AV equipment from electrical surges.
Which documents are available for submittals?
Installers can access the PD Series Slim Power Strips A&E Specification Sheet, the 3 Part Specification, or CAD Technical Specification Drawings for submittal documentation.
