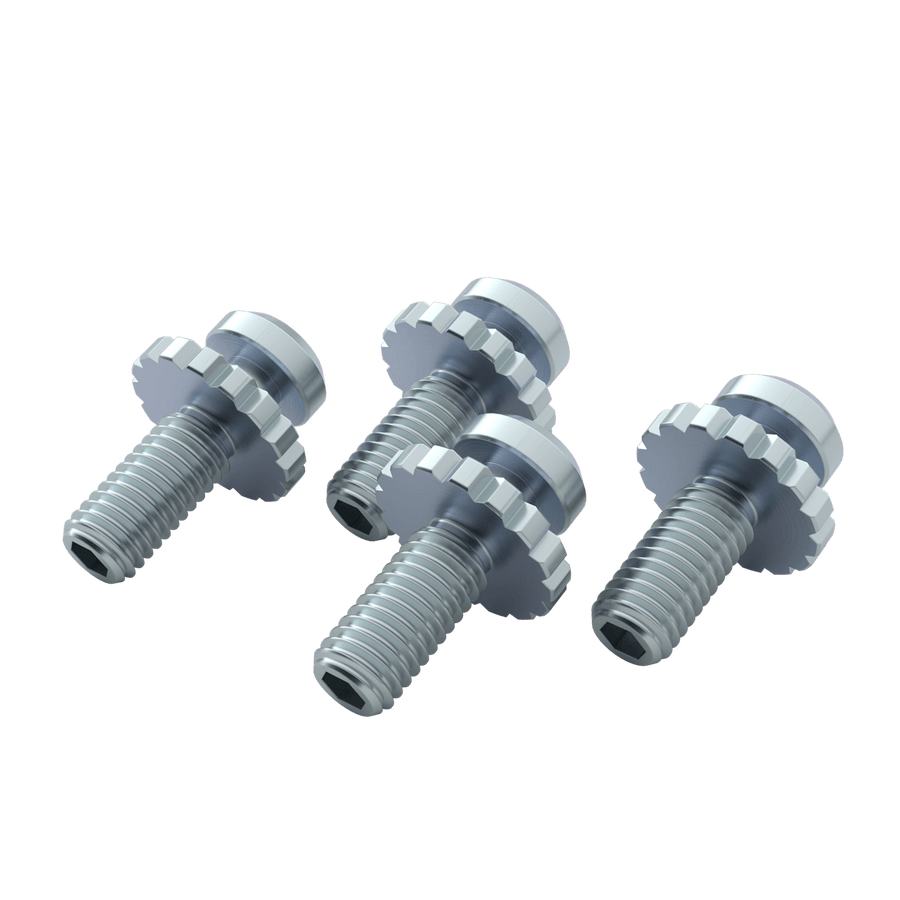

TiLED® dvLED Universal M8 Mounting Button Kit, 25 panels
M8 mounting button kit for 25 panels, providing 100 total buttons for universal dvLED display integration
The Chief DVAM8-25 TiLED® dvLED Universal M8 Mounting Button Kit provides the hardware necessary to integrate most dvLED panels currently on the market into a TiLED® mounting system. This kit is designed for wall applications and includes 100 total buttons, which is the correct quantity for a 25-panel installation. These buttons are installed directly into the back of the LED display, facilitating compatibility across various manufacturers. Once installed, the system allows for micro-depth adjustments of 0.125" (3.2 mm) through front or side access, ensuring precise alignment during the installation process. The buttons feature a clear zinc finish for durability. This specific SKU provides the M8 size hardware; other sizes including M5, M6, M10, and M12 are available for different panel requirements.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Package Count | 25 Panels / 100 Buttons |
| Size | M8 |
| Accessory Type | InstallationMounting Brackets |
| Adjustments | 0.125" (3.2 mm) |
| Application | Wall |
| Finish | Clear Zinc Finish |
| Product Type | Button |
| UPC | 841872178653 |
| Color | Clear Zinc Finish |
Resources
You'll need these with it
Chief DVM0500U3E TiLED® dvLED Universal 500mm, 3 High Extender
DVM0500U3E$540.00
Chief DVM0270U1E TiLED® dvLED Universal 270mm, 1 High Extender
DVM0270U1E$180.00
Chief DVM0500U2E TiLED® dvLED Universal 500mm, 2 High Extender
DVM0500U2E$360.00
TiLED® dvLED Universal Capture H-Block Kit, Pair
DVAHBKITComing soon
Chief DVM0250U1E TiLED® dvLED Universal 250mm, 1 High Extender
DVM0250U1E$180.00
Chief DVM0540U3E TiLED® dvLED Universal 540mm, 3 High Extender
DVM0540U3E$540.00
TiLED® dvLED Universal 27" Wall Mount, 2 High Extender
DVM27U2E$240.00
TiLED® dvLED Universal 27" Wall Mount, 3 High Starter
DVM27U3$360.00
TiLED® dvLED Universal 27" Wall Mount, 3 High Extender
DVM27U3E$360.00
TiLED® dvLED Universal 27" Wall Mount, 4 High Extender
DVM27U4E$480.00
Chief DVM0540U3 TiLED® dvLED Universal 540mm, 3 High Starter
DVM0540U3$540.00
Chief DVM0540U2E TiLED® dvLED Universal 540mm, 2 High Extender
DVM0540U2E$360.00
Questions about this part
How many panels can I outfit with the DVAM8-25 kit?
This kit is designed for 25 panels and contains 100 total mounting buttons.
Will these M8 buttons work with my specific dvLED display?
These TiLED® buttons are designed for universal compatibility by installing directly into the back of most dvLED panels on the market.
Can I adjust the display depth after the buttons are installed?
Yes, the system allows for 0.125" (3.2 mm) micro-depth adjustments through side or front access.
What is the difference between this and the DVAM8-1 or DVAM8-10 kits?
This is the 25-panel kit containing 100 buttons; smaller kits are available for 1-panel or 10-panel configurations.
Which document should I use for the installation process?
The TiLED dvLED Video Wall Mounts Installation Manual provides the necessary guidance for this series.
