TiLED® dvLED Universal 27" Wall Mount, 3 High Starter

Universal starter wall mount for 27" dvLED panels, accommodating 3 panels with 3-axis adjustment for precise pixel alignment

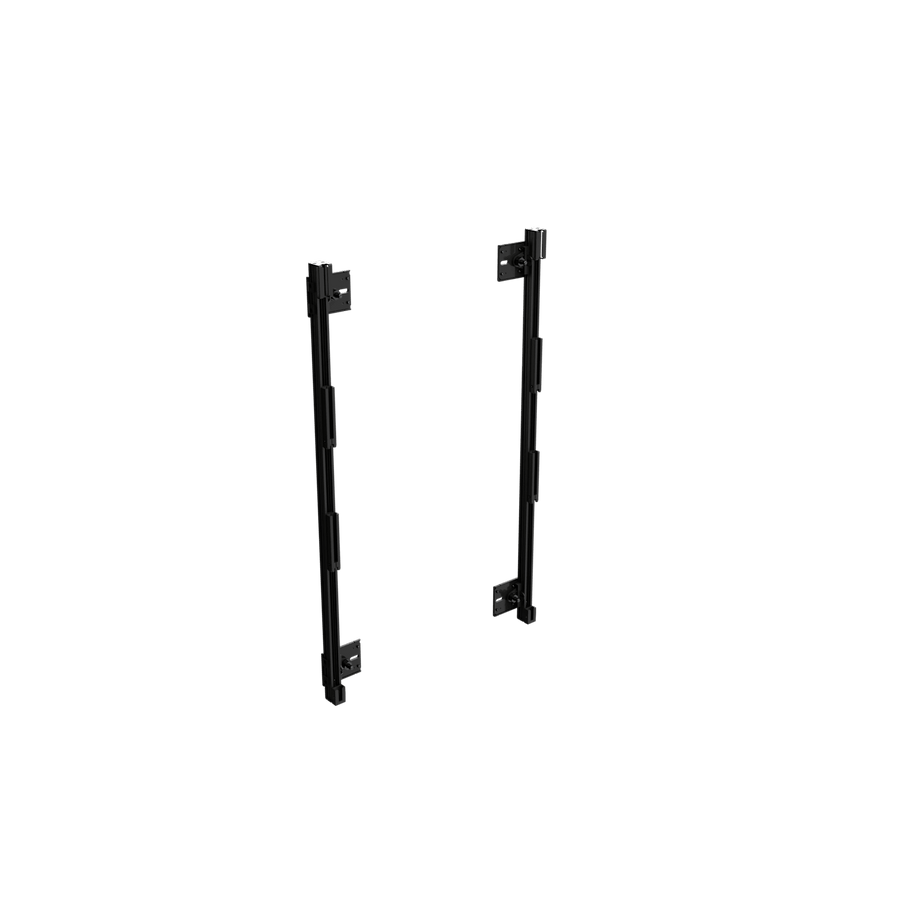

The Chief DVM27U3 is a TiLED® dvLED Universal Wall Mount designed for high-precision direct view LED video wall installations. As a starter kit, this DVM27U3 unit consists of a set of two rails specifically engineered to serve as the base for a video wall, designed to hold 3 display panels in a landscape orientation. This system is highly adaptable, utilizing a patent-pending floating button-capture technology that provides compatibility with 90% of interlocking dvLED panels from major manufacturers, including Absen, Barco, Hikvision, INFiLED, LG, LianTronics, Philips, Planar, Samsung, Sharp/NEC, Sony, and Unilumin. To ensure a flawless, uniform display, the DVM27U3 offers total X-Y-Z axis adjustability. The system includes manual height adjustment of 2 in (50.8 mm) and lateral shift of 0.32 in (0.8 cm) to compensate for wall irregularities. For precision pixel alignment, the mounts feature micro-adjustments and a double-depth Z-axis adjustment to create a perfectly flat installation. This mount is meant for plywood-reinforced walls and carries a weight capacity of 250 lbs (113.4 kg). While this starter kit forms the foundation of the wall, it is designed to scale; installers can use extender mounts to reach the desired video wall height. This TAA compliant solution is essential for professionals requiring repeatable, accurate alignment in modular LED environments.
