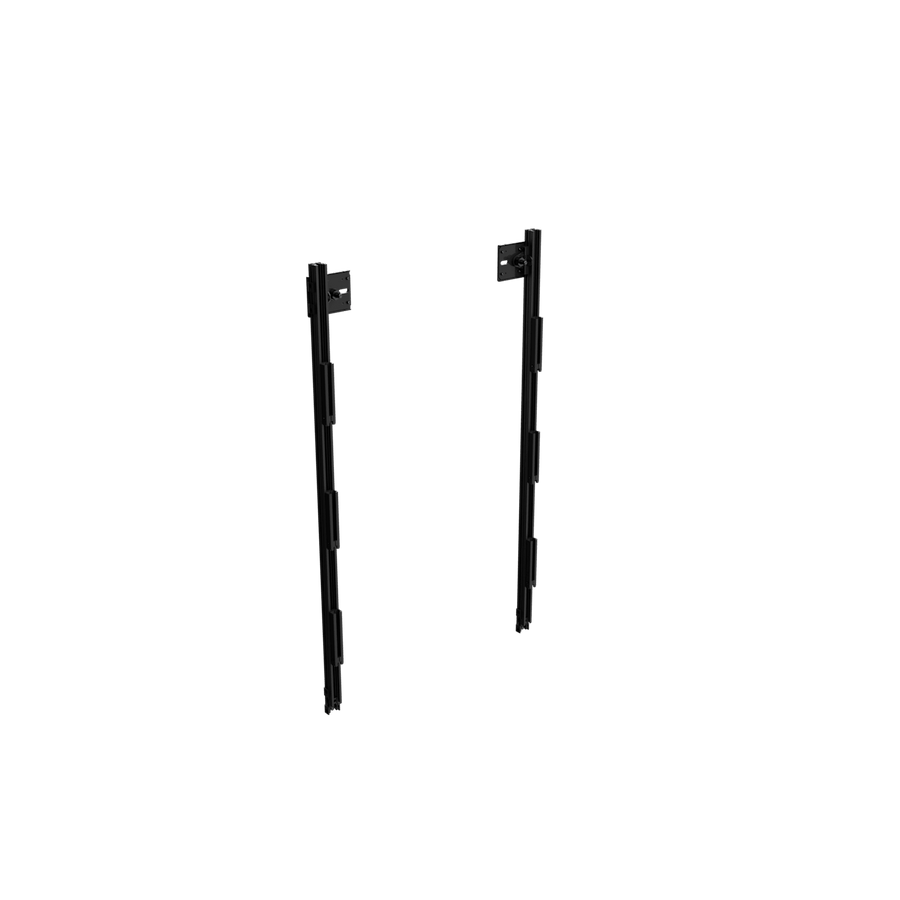

TiLED® dvLED Universal 27" Wall Mount, 3 High Extender
3-panel extender for 27" dvLED panels, featuring 3-axis adjustability and TAA compliance for precision modular video wall alignment
The Chief DVM27U3E is a TiLED® dvLED Universal Wall Mount extender designed to expand the height of modular video wall installations. Specifically sized for 27" (600mm x 337.5mm) dvLED panels, this extender holds 3 panels and is used in conjunction with starter mounts to build custom-height displays. The system utilizes patent-pending floating button-capture technology and universal mounting hardware, making it compatible with approximately 90% of interlocking dvLED panels from leading manufacturers. To achieve a flawless, uniform display—even with pixel pitches below 1 mm—the DVM27U3E provides comprehensive X-Y-Z axis adjustability. This includes a 2" (50.8 mm) manual height adjustment, 0.32" (0.8 cm) lateral shift, and .625" micro-adjustments. The double-depth Z-axis adjustment allows installers to compensate for uneven wall surfaces and ensure a perfectly flat installation. This TAA compliant solution is engineered for use on plywood-reinforced walls with a total weight capacity of 250 lbs (113.4 kg).
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Lateral Shift | 0.32 in (0.8 cm) |
| Manual Height Adjustment | 2 in (50.8 mm) |
| Minimum Depth | 2 in (5.1 cm) |
| Number of Panels | 3 |
| Shipping Dimensions | 48.25" x 9.75" x 3" (122.6 x 24.8 x 7.6 cm) |
| Shipping Weight | 10.65 lbs (4.8 kg) |
| Size | 27.5" Class (600mm W x 337.5mm H) |
| Typical Screen Size | 27" dVLED Panels |
All other specifications 14
| Wall Stud Compatibility | Meant for plywood-reinforced walls |
| Weight Capacity | 250 lbs (113.4 kg) |
| Accessory Type | InstallationMounting Brackets |
| Adjustability | FixedHeight AdjustableLateral ShiftMicro-Adjustable |
| Adjustments | .625" |
| Application | Wall |
| Color | Black |
| Orientation | Landscape |
| Product Type | Extender |
| Solution Type | Universal |
| Special Features | LED Video WallModularMulti-DisplaySecurityStacked |
| TAA Compliant | Yes |
| UPC | 841872178165 |
| Certifications | TAA |
Resources
You'll need these with it

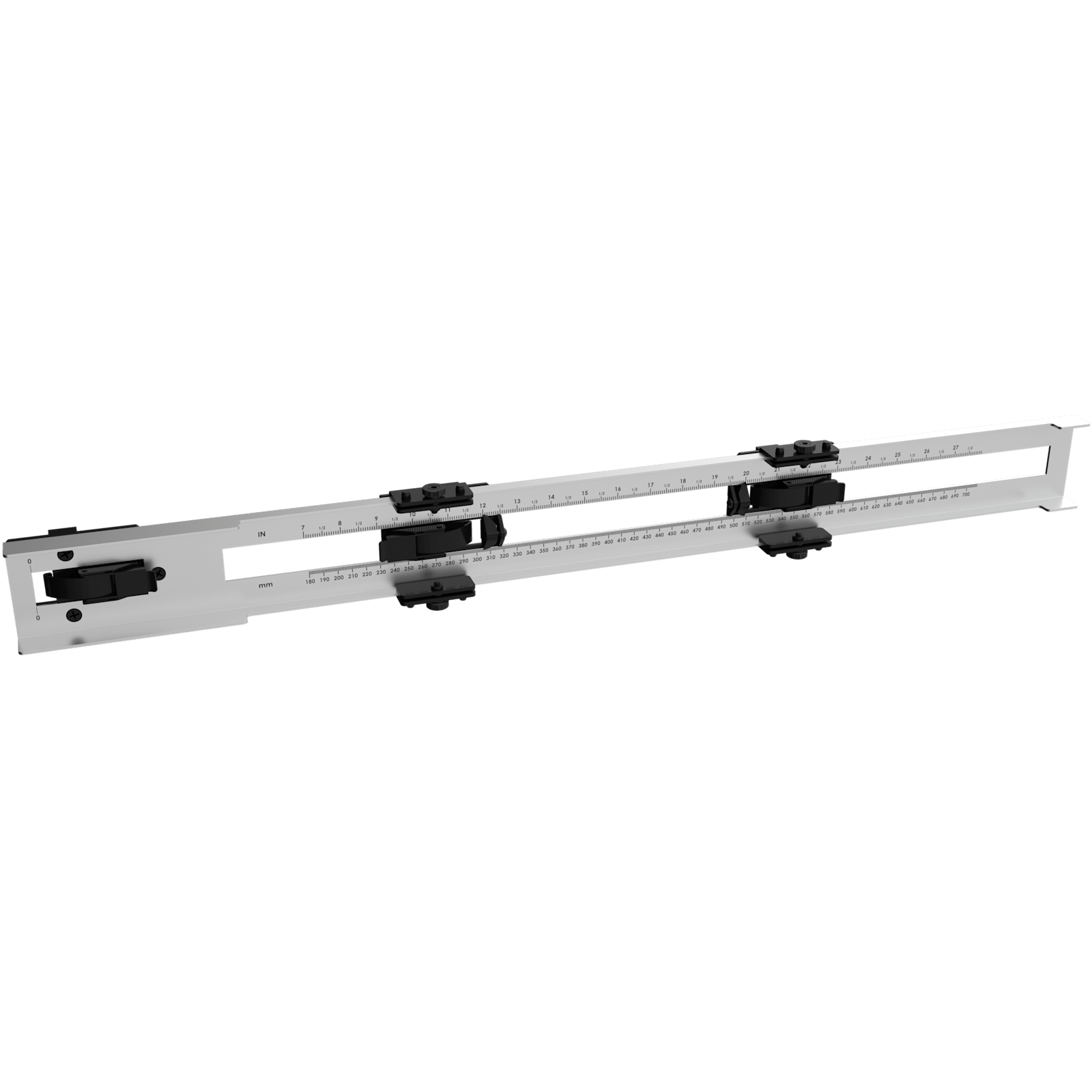

TiLED® dvLED Universal Installation Spacer Tool
DVA700$200.00

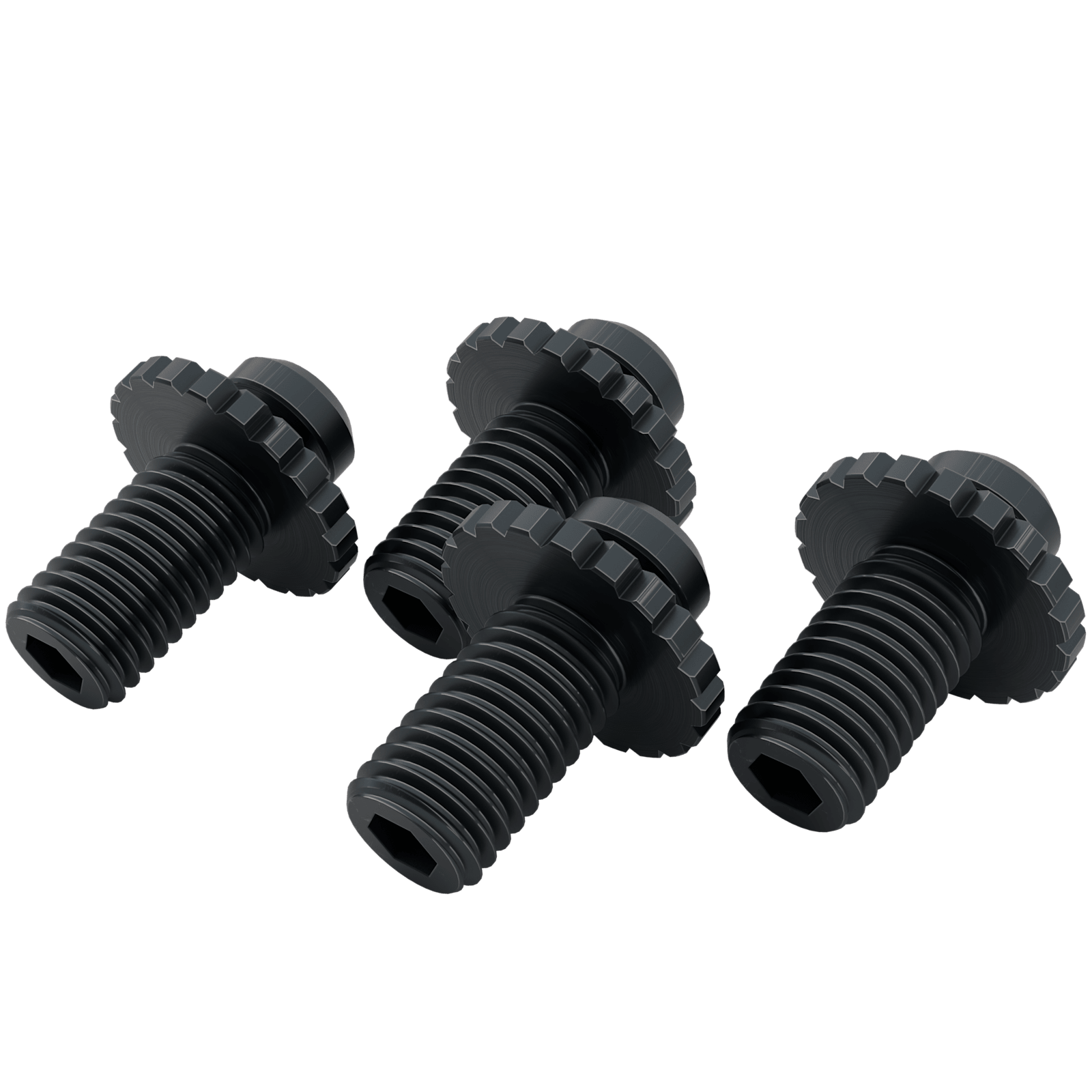

TiLED® dvLED Universal M12 Mounting Button Kit, 25 panels
DVAM12-25$380.00
TiLED® dvLED Universal Capture H-Block Kit, Pair
DVAHBKITComing soon

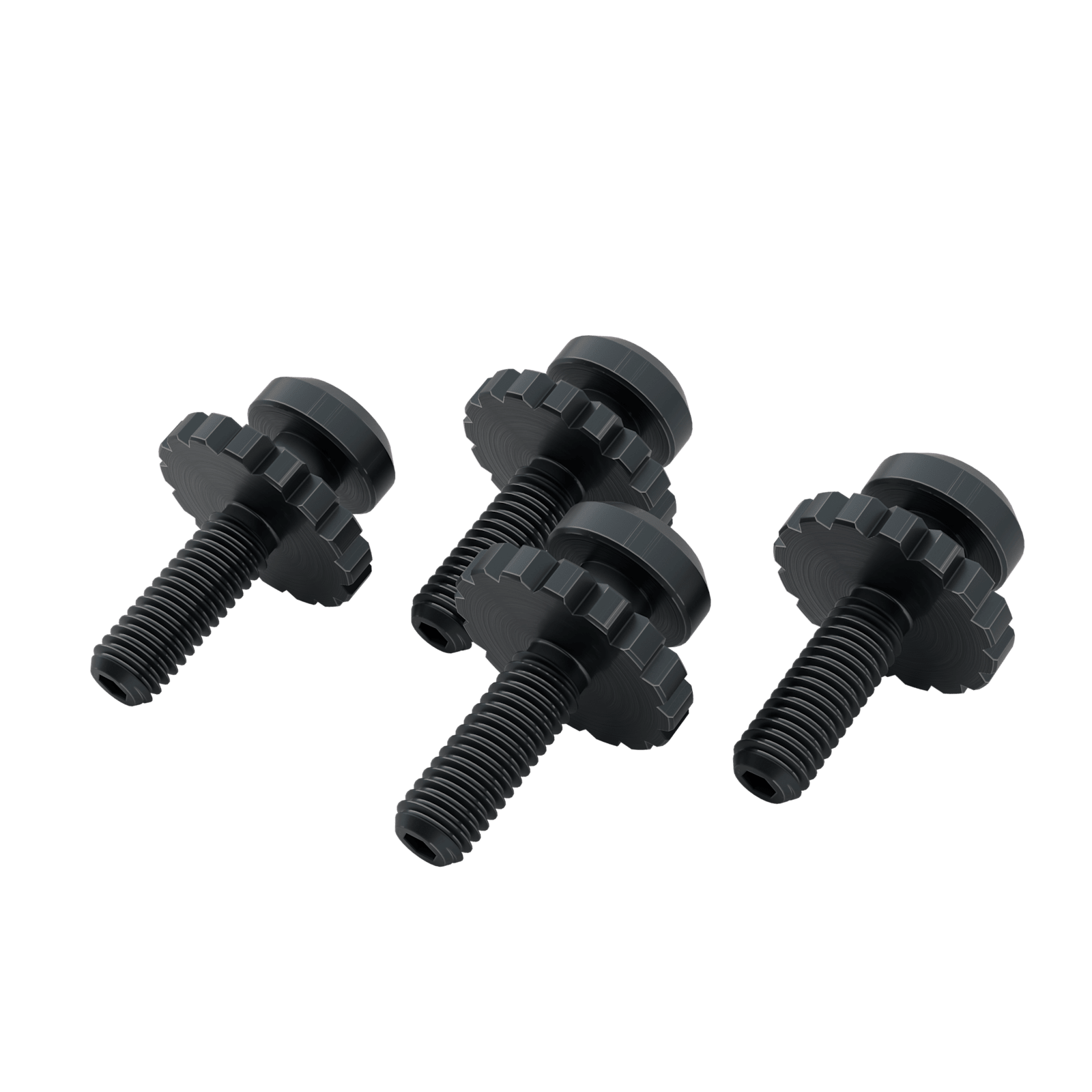

TiLED® dvLED Universal M6 Mounting Button Kit, 1 panel
DVAM6-1$15.20
TiLED® dvLED Universal M12 Mounting Button Kit, 1 panel
DVAM12-1$15.20

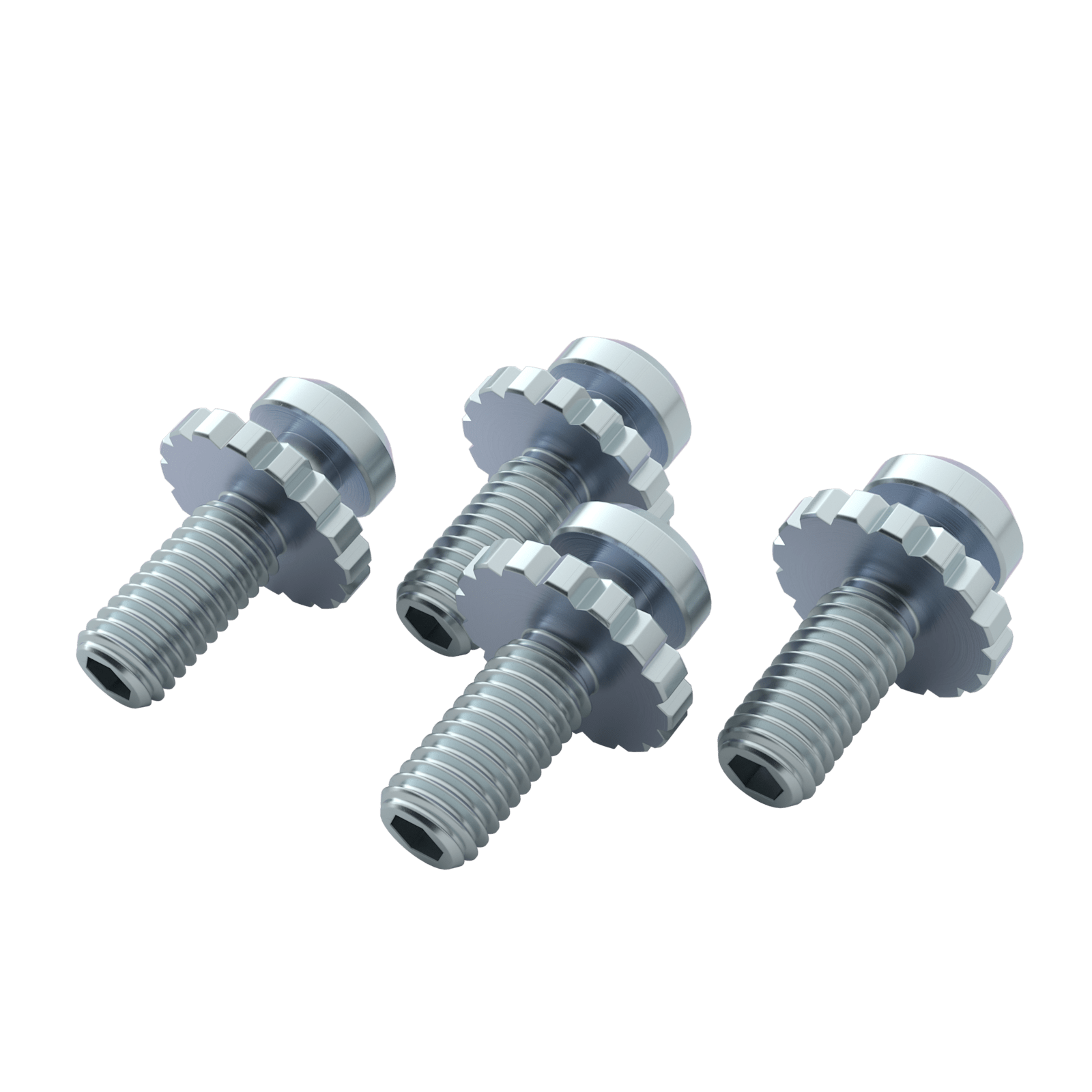

TiLED® dvLED Universal M8 Mounting Button Kit, 10 panels
DVAM8-10$152.00
TiLED® dvLED Universal M6 Mounting Button Kit, 25 panels
DVAM6-25$380.00
TiLED® dvLED Universal M6 Mounting Button Kit, 10 panels
DVAM6-10$152.00
TiLED® dvLED Universal M12 Mounting Button Kit, 10 panels
DVAM12-10$152.00
TiLED® dvLED Universal M8 Mounting Button Kit, 25 panels
DVAM8-25$380.00
TiLED® dvLED Universal M8 Mounting Button Kit, 1 panel
DVAM8-1$15.20
PD Slim High Density Vertical Power Strip, 8 Outlet, 15A, Basic Surge Protection - 10 ft Cord
PD-815SC$210.60
Verified fitment
Questions about this part
Will the DVM27U3E fit my specific dvLED panels?
This extender is verified against 364 display models from 21 manufacturers, including LG, Absen, Samsung, Sony, Unilumin, and INFiLED, specifically for 27" dvLED panels.
How do I build a full video wall with this part?
You must use starter mounts to form the base of the wall; this DVM27U3E is an extender used to add height to those starter units.
What tools are required for installation?
The installation requires specific accessories such as the TiLED® dvLED Universal Installation Spacer Tool (DVA700) and appropriate mounting button kits.
Can this mount compensate for uneven walls?
Yes, the 3-axis adjustability and double-depth Z-axis adjustment allow you to correct for wall irregularities to ensure a level, flat display.
Is this mount TAA compliant?
Yes, the DVM27U3E is TAA compliant, making it suitable for various government and enterprise procurement requirements.
