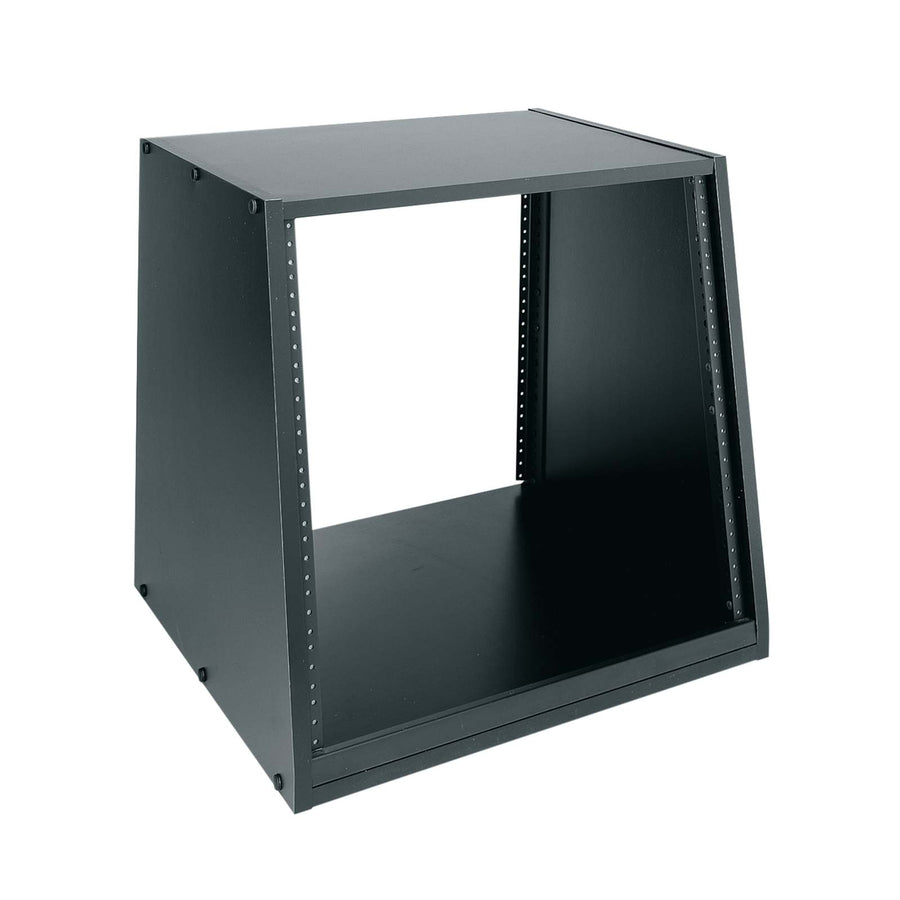

Slim 2 Series Sloped Desktop Rack - 2-10M
10 RU sloped desktop rack with black wood grain finish, providing easy equipment viewing in a knockdown design
The Middle Atlantic 2-10M is a 10 RU sloped desktop rack designed for efficient equipment organization and visibility on work surfaces. Constructed from 5/8” thick furniture-grade MDF board, this rack features a black wood grain finish that integrates well into professional environments. The sloped rack face is specifically engineered to facilitate easy equipment viewing for users. This model utilizes a knockdown design, allowing for rapid assembly and flat shipment via UPS. It features standard fixed front and rear 10-32 threaded rackrails to secure your hardware. This TAA compliant rack is a versatile desktop solution for system integrators needing a compact, 10 RU space for localized equipment. The unit has a total height of 19.38 in (49.2 cm) and a width of 20.38 in (51.8 cm), with a usable height of 17.5 in (44.5 cm) and a usable depth of 15.95 in (40.5 cm). The total product weight is 31 lbs (14.1 kg).
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 17.91 in (45.5 cm) |
| Height | 19.38 in (49.2 cm) |
| Panel Width | 19 in (48.3 cm) |
| Product Weight | 31 lbs (14.1 kg) |
| Rack Units | 10 RU |
| Shipping Weight | 33 lbs (15 kg) |
| Usable Depth | 15.95 in (40.5 cm) |
| Usable Height | 17.5 in (44.5 cm) |
All other specifications 10
| Width | 20.38 in (51.8 cm) |
| Federal Ops Country of Origin | USA |
| Finish | Black Wood Grain |
| Gangable | No |
| Material | Wood |
| Rack Rail Type | 10-32 |
| Rack Type | DesktopKnockdown |
| TAA Compliant | Yes |
| UPC | 656747000348 |
| Certifications | TAA |
Resources
You'll need these with it
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
1 RU Select Series UPS Backup Power, 500VA
UPS-S500R$927.00
2 RU Horizontal Cable Manager with Horizontal/Vertical D-Rings
HCM-2DV$74.70
1 RUs Horizontal Cable Manager with Cable Clips & D-Rings
HCM-1V$66.60
1 RU Horizontal Cable Manager with Horizontal/Vertical D-Rings
HCM-1DV$66.60
MPR Power Module 30A, L5-30R Twistlock
RLM30-L530-1$763.20
USC Universal Sequencing Controller 1 Space Sequencing Controller
USC-6R$1,044.90
MPR Power Module 20A, L5-20R Twistlock
RLM30-L520-1$716.40
MPR Module 20A, Controlled Stand-Alone
RLM-20-1CA$306.00
MPR Module 15A, Controlled Stand-Alone
RLM-15-1CA$288.00
Rackmount Power, 2 Outlet Control, 9 Outlet, 15A, & 2-Stage Surge Protection
PDC-915R-2$462.60
Rackmount Power, 6 Outlet Control, 9 Outlet, 15A, & 2-Stage Surge Protection
PDC-915R-6$462.60
Questions about this part
Will the 2-10M fit my rackmount equipment?
Yes, this 10 RU rack features standard 10-32 threaded rackrails. It provides a usable height of 17.5 in (44.5 cm) and a usable depth of 15.95 in (40.5 cm) for your components.
What is required for installation of the 2-10M?
The 2-10M is a knockdown, ready-to-assemble rack. While the rack rails are fixed, the unit is designed for quick assembly and includes rubber feet for desktop stability.
Does this rack include any mounting hardware or accessories?
The rack comes with the necessary hardware for assembly and includes rubber feet. You can further customize the setup with accessories like the HCM-2DV 2 RU Horizontal Cable Manager or the WUSS15-5 Wide Unit Shelf System.
Is the 2-10M TAA compliant for government contracts?
Yes, this model is TAA compliant and is manufactured in the USA.
What is the difference between this and other Slim 2 Series racks?
This SKU is the 10 RU version of the Slim 2 Series. It is part of a series that includes different rack unit counts and dimensions to suit varying equipment needs.
