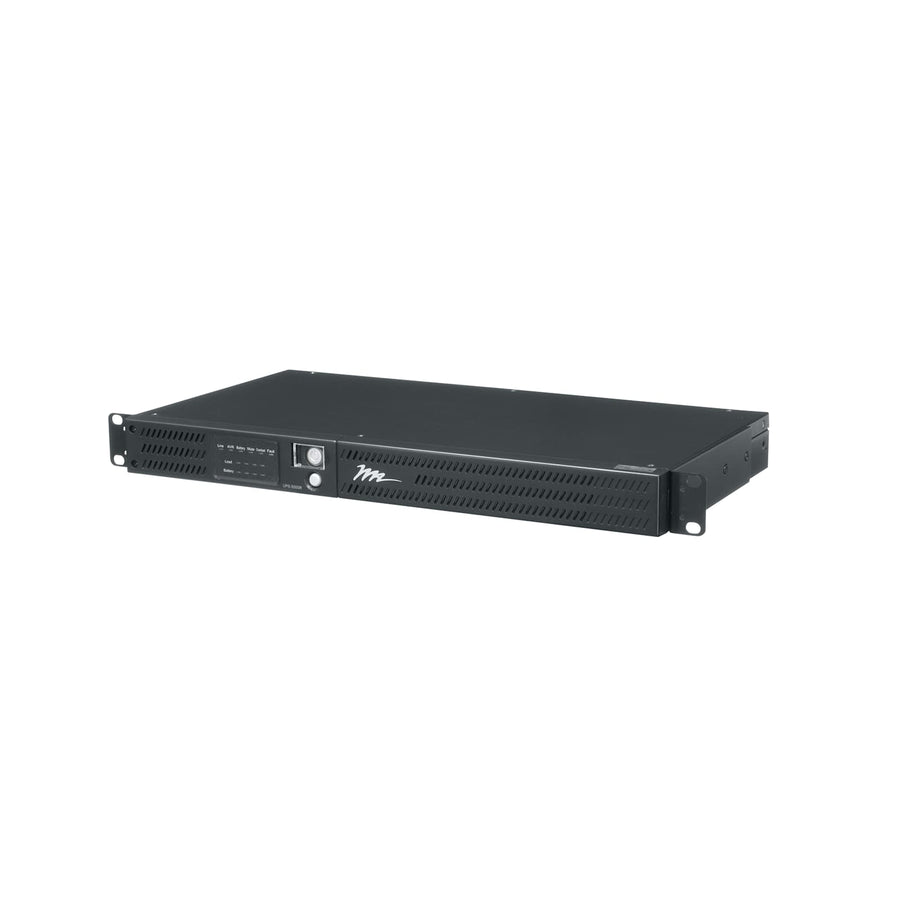

1 RU Select Series UPS Backup Power, 500VA
1 RU 500VA UPS backup system providing 6 outlets and automatic voltage regulation for AV or security applications
The Middle Atlantic UPS-S500R is a 1 RU Select Series UPS backup power system designed to maintain equipment uptime during power outages or voltage anomalies. This 500VA unit is suitable for both AV and security applications, providing essential protection through basic surge protection and EMI filtering. It utilizes automatic voltage regulation (AVR) to protect sensitive electronics from over and under-voltage by switching to battery power within 8ms of an anomaly. The unit features a simulated sine wave to keep costs efficient while ensuring equipment remains powered until voltage stabilizes. To assist in power management, the UPS includes separate critical and non-critical outlet banks that utilize load shedding to prioritize essential equipment during extended outages. For system integrators, the UPS-S500R includes an LED status indicator on the front panel for monitoring battery levels and overload status. Additionally, the hot-swappable battery pack can be replaced via the front panel, allowing for service without disrupting the installed system. Remote monitoring and control can be achieved by adding the optional UPS-OLIPCARD network interface card.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cord Length | 10 ft (3.1 m) |
| Depth | 9.06 in (23 cm) |
| Height | 1.73 in (4.4 cm) |
| Mounting Depth Max | 32 in (81.3 cm) |
| Mounting Depth Min | 19 in |
| Rack Units | 1 RU |
| Shipping Weight | 20.4 lbs (9.3 kg) |
| VA Rating | 500VA |
All other specifications 8
| Width | 19 in (48.3 cm) |
| Cable Type | Corded |
| Mounting Points | 2 |
| Outlet Count | 6 |
| Surge Protection Type | Basic |
| TAA Compliant | No |
| UPC | 656747237195 |
| Certifications | FCCUL Listed |
Resources
You'll need these with it
Questions about this part
Can I monitor this UPS remotely?
Yes, you can achieve remote monitoring and control by installing the optional UPS-OLIPCARD network interface card.
How is the battery replaced on the UPS-S500R?
The battery pack is hot-swappable and can be replaced through the front panel, allowing for maintenance without disrupting your system.
What happens if the power stays out for a long time?
The unit features separate outlet banks that allow for load shedding, which stops power to non-critical equipment to extend uptime for critical devices.
What mounting depth is required for installation?
This 1 RU unit requires a minimum mounting depth of 19 in (48.3 cm) and can accommodate a maximum mounting depth of 32 in (81.3 cm).
Does this unit provide surge protection?
The UPS-S500R provides basic surge protection and EMI filtering to protect your AV and security equipment.
