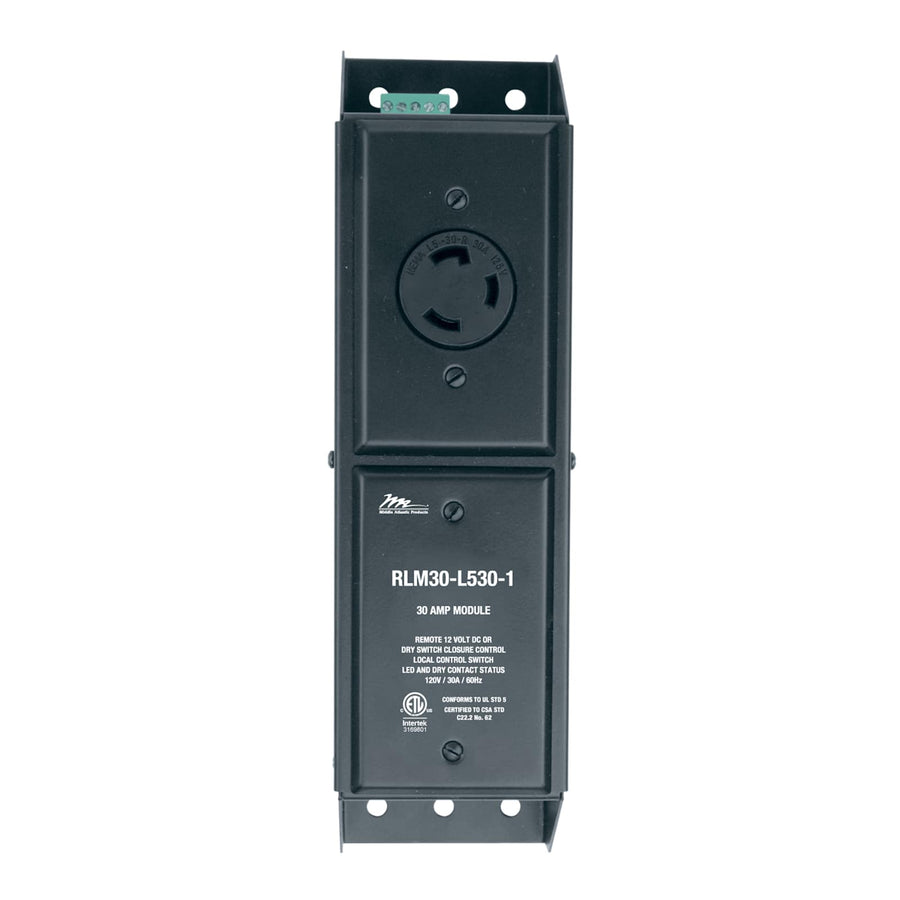

MPR Power Module 30A, L5-30R Twistlock
Stand-alone 30 Amp power module with L5-30R Twistlock, hard-wired connection, and TAA compliance
The RLM30-L530-1 is a stand-alone power distribution module from the Middle Atlantic MPR Series. This unit is designed for rapid deployment, arriving already installed in a MPR-style enclosure with an attached power cord for immediate use. It features a 30 Amp capacity and is configured for a hard-wired connection. This specific SKU is the L5-30R Twistlock version, providing a secure power interface for professional AV installations. As part of the MPR line, these remote power modules are compatible with MPR raceways for flexible integration into larger power distribution systems. This ETL Recognized and TAA compliant module offers a high-capacity solution to many installation challenges in professional environments.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Amps | 30 Amp |
| Depth | 11.63 in (29.5 cm) |
| Height | 2.63 in (6.7 cm) |
| Shipping Weight | 3.7 lbs (1.7 kg) |
| Width | 3.13 in (8 cm) |
| Cable Type | Hard-Wired |
| Number of Circuits | 1 |
| UPC | 656747057656 |
| Compliance | ETL Recognized |
Resources
Questions about this part
How is this power module installed?
The RLM30-L530-1 features a hard-wired cable type, meaning it requires direct connection to your building's power supply rather than a standard plug-in connection.
Is the RLM30-L530-1 TAA compliant?
Yes, this RLM30-L530-1 power module is TAA compliant and ETL Recognized.
Can this be used in MPR raceways?
Yes, these remote power modules are designed to fit into MPR raceways as part of the MPR Stand Alone Power Distribution series.
What is the connection type for this 30 Amp module?
This module is equipped with an L5-30R Twistlock interface to accommodate specific power cord requirements.
What documentation is available for the RLM30-L530-1?
You can access the RLM Series Instruction Sheet or the 30 Amp Power Instruction Sheet for installation and operational guidance.
