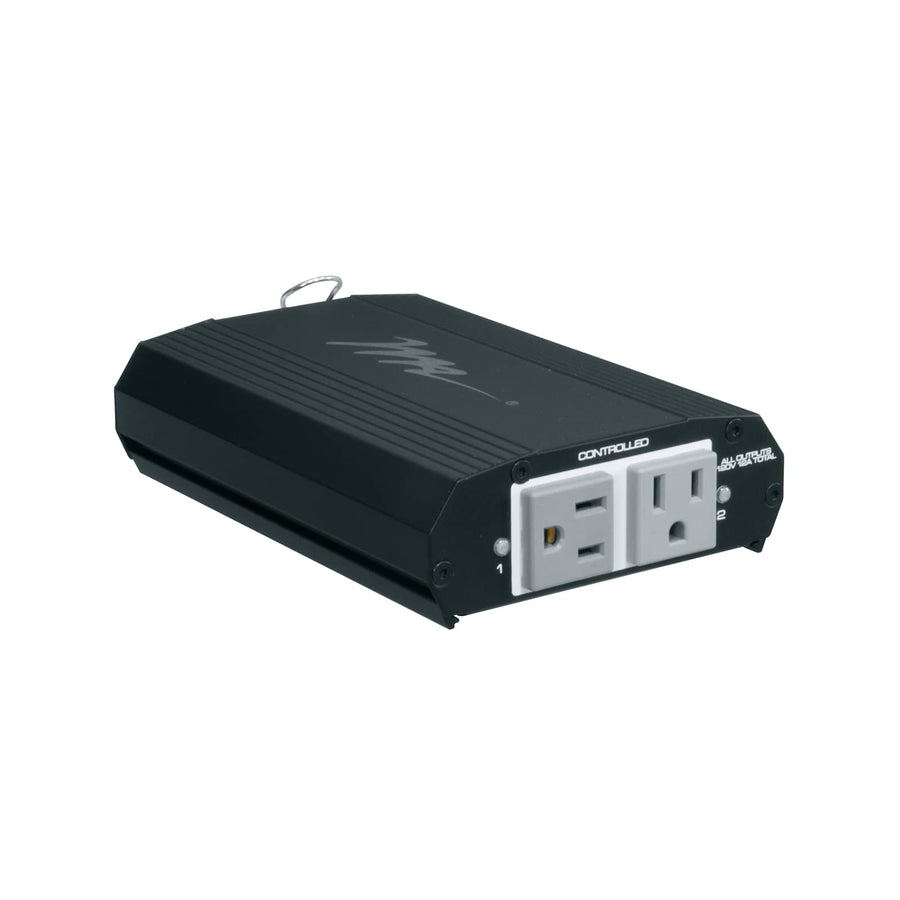

Select Series PDU with RackLink™, 2 Outlet
Compact 2-outlet intelligent PDU with RackLink™ technology for remote power management and monitoring
The Middle Atlantic RLNK-215 is a compact, intelligent power distribution unit designed specifically for space-constrained environments, such as behind-the-display digital signage installations. This Select Series PDU provides 15 Amp capacity and features two IEC outlets, allowing for individual IP outlet control of each device. By integrating RackLink™ technology, installers can monitor and manage power from a single, customizable dashboard via the RackLink™ Cloud. This enables remote sequencing with user-selectable delays, which optimizes the start-up and shut-down progression of connected equipment. The unit is designed for easy commissioning using the RackLink™ Discovery app on iPhone or Android devices. This PDU includes basic surge protection to safeguard connected electronics from harmful power anomalies and is ETL Listed for safety. Its compact dimensions—1.74 in (4.4 cm) in height and 4.65 in (11.8 cm) in width—make it an efficient solution for tight mounting spaces.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Amps | 15 Amp |
| Cord Length | 2 ft (0.6 m) |
| Depth | 6.5 in (16.5 cm) |
| Height | 1.74 in (4.4 cm) |
| Shipping Weight | 3 lbs (1.4 kg) |
| Width | 4.65 in (11.8 cm) |
| Available Internationally | No |
| Cable Type | IEC |
All other specifications 10
| Finish | Powder Coat |
| Mounting Style | Compact |
| Number of Circuits | 1 |
| Outlet Control Type | 2 |
| Outlet Count | 2 |
| Plug Type | 5-15P |
| Surge Protection Type | Basic |
| TAA Compliant | No |
| UPC | 656747275296 |
| Certifications | ETL Listed |
Resources
Questions about this part
What is the benefit of using the RackLink™ Cloud with this PDU?
The RackLink™ Cloud provides a centralized dashboard to monitor and manage all deployed Select Series PDUs globally, including remote sequencing and automatic notifications of connection status.
How do I set up and manage the RLNK-215 remotely?
You can use the RackLink™ Discovery app on Android or iPhone for fast commissioning, and manage the unit from anywhere using the RackLink™ Cloud interface.
Will this PDU work with my existing AV control system?
Yes, this unit interfaces with third-party AV control systems and cloud platforms for customized scheduling, reporting, and control.
What kind of power protection does the RLNK-215 provide?
This PDU features basic surge protection designed to protect your connected equipment from harmful power anomalies.
What do I need to know about the physical installation of the RLNK-215?
The unit has a compact mounting style with a height of 1.74 in (4.4 cm), a width of 4.65 in (11.8 cm), and a depth of 6.5 in (16.5 cm).
