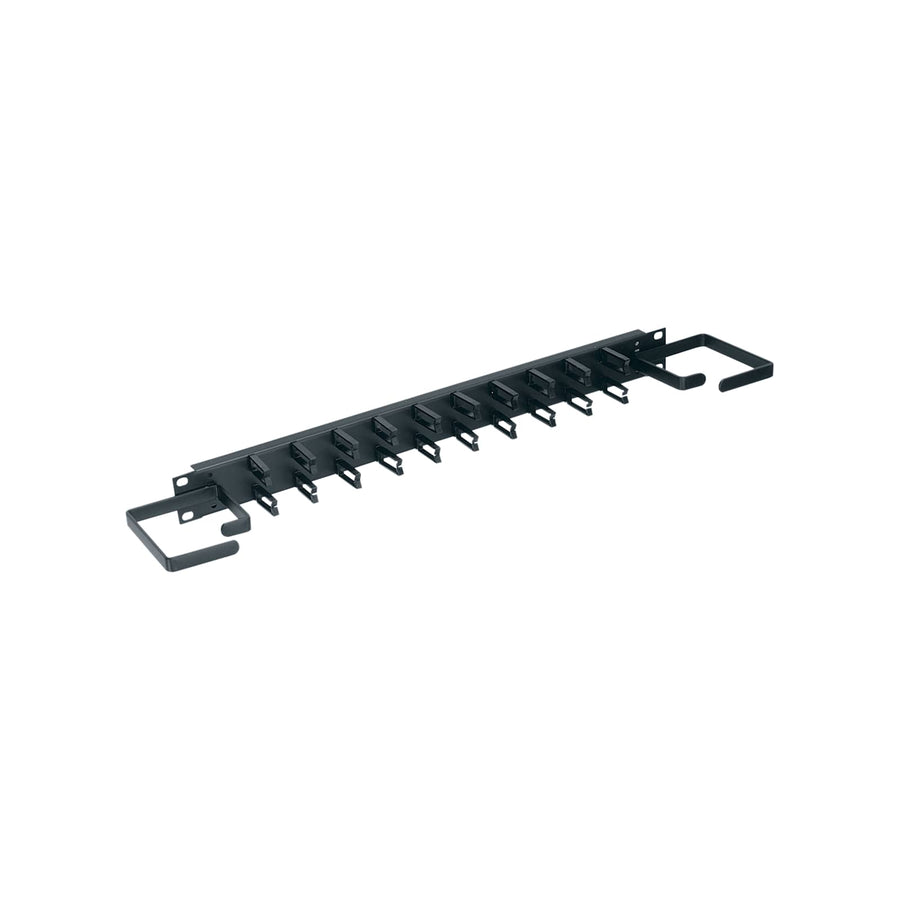

1 RUs Horizontal Cable Manager with Cable Clips & D-Rings
1 RU horizontal cable manager featuring micro-clip routing and D-ring ends for maintaining cable bend radius
The Middle Atlantic HCM-1V is a 1 RU horizontal cable manager designed to organize patch cords and maintain necessary bend radii within a rack. This steel unit features a "micro-clip" style on the front for fast, easy cable routing and utilizes "D-ring" style end rings to manage connections. Constructed from 16-gauge welded steel with a durable black powder coat finish, this component provides a robust solution for high-density environments. To ensure optimal performance and avoid excessive stress on connections, the manufacturer recommends not exceeding a 50% fill rate when passing cables through the rings. This TAA-compliant manager is 22.5 in (57.2 cm) wide and 4.22 in (10.7 cm) deep, offering a 1.75 in (4.4 cm) height for rack integration.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Depth | 4.22 in (10.7 cm) |
| Height | 1.75 in (4.4 cm) |
| Rack Units | 1 RU |
| Width | 22.5 in (57.2 cm) |
| Component Type | Horizontal |
| Finish | Black Powder Coat |
| Material | Steel |
| Mounting Points | 2 |
| UPC | 656747008146 |
Resources
Questions about this part
How do I ensure I don't damage my patch cords in the HCM-1V?
For optimal performance and to protect your cables, do not exceed a 50% fill rate when passing them through the cable rings.
What is the maximum cable capacity for this manager?
The unit is designed to maintain the required bend radius, but you should limit cable usage to a 50% fill rate of the rings.
What type of construction is used for the HCM-1V?
This manager is built from 16-gauge welded steel and finished with a black powder coat.
Is the Middle Atlantic HCM-1V TAA compliant?
Yes, this model is TAA compliant and carries PEP certification.
