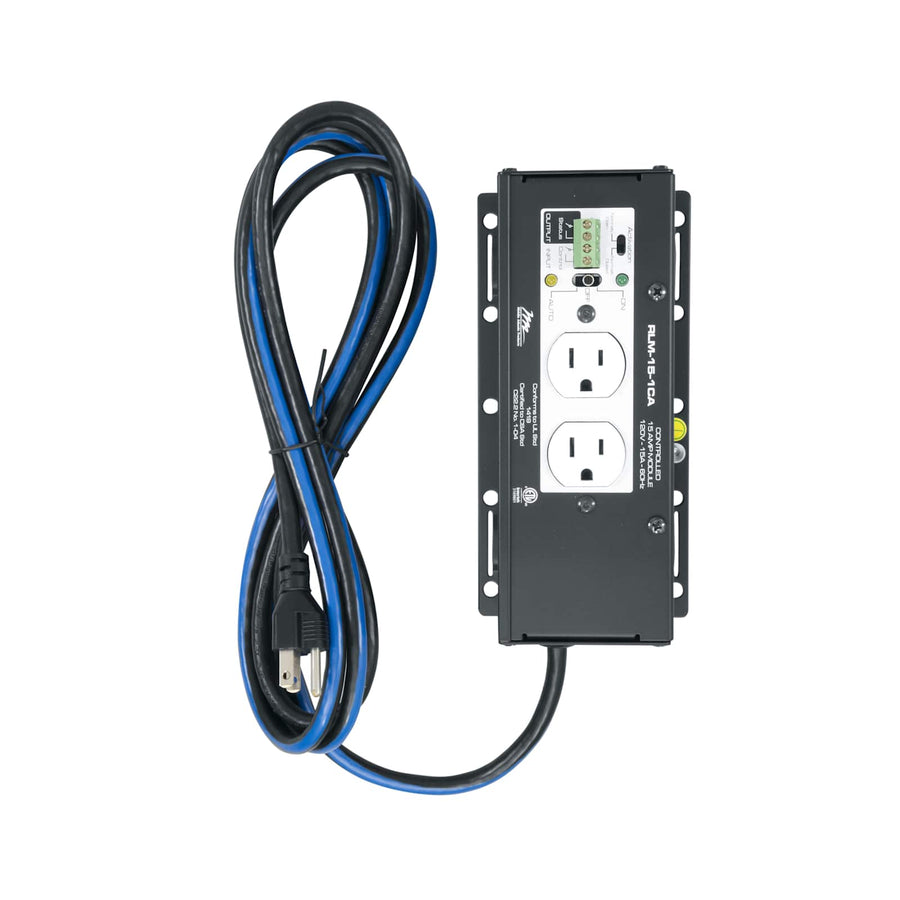

MPR Module 15A, Controlled Stand-Alone
Stand-alone 15 Amp power distribution module with a 9 ft (2.7 m) cord for flexible power solutions
The RLM-15-1CA is a stand-alone power distribution module from the MPR Stand Alone Power Distribution Series. This unit is pre-installed in a MPR-style enclosure and comes with an attached power cord, making it ready to use immediately upon arrival at the job site. It features a 15 Amp capacity and a 5-15P plug type. This corded module is designed as a fast and flexible solution to address various installation power challenges without needing a full raceway system. The module has a cord length of 9 ft (2.7 m) and measures 3.82 in (9.7 cm) in height, 4 in (10.2 cm) in width, and 8.52 in (21.6 cm) in depth. It is ETL Recognized and provides configurable power for a single circuit.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Amps | 15 Amp |
| Cord Length | 9 ft (2.7 m) |
| Depth | 8.52 in (21.6 cm) |
| Height | 3.82 in (9.7 cm) |
| Shipping Weight | 4.2 lbs (1.9 kg) |
| Width | 4 in (10.2 cm) |
| Cable Type | Corded |
| Number of Circuits | 1 |
All other specifications 5
| Plug Type | 5-15P |
| Special Features | Configurable Power |
| TAA Compliant | No |
| UPC | 656747190704 |
| Compliance | ETL Recognized |
Resources
Questions about this part
Does this module require a raceway for installation?
No, the RLM-15-1CA is a stand-alone module that is already installed in a MPR-style enclosure and is ready to use out of the box.
What are the dimensions of the RLM-15-1CA?
This module measures 3.82 in (9.7 cm) high, 4 in (10.2 cm) wide, and 8.52 in (21.6 cm) deep.
What is the cord length and plug type for this module?
The RLM-15-1CA features a 9 ft (2.7 m) corded connection with a 5-15P plug type.
Is the RLM-15-1CA TAA compliant?
No, this specific model is not TAA compliant.
Can I use this module with existing MPR raceways?
Yes, while this is a stand-alone unit, remote power modules in this series are designed to fit within MPR raceways.
