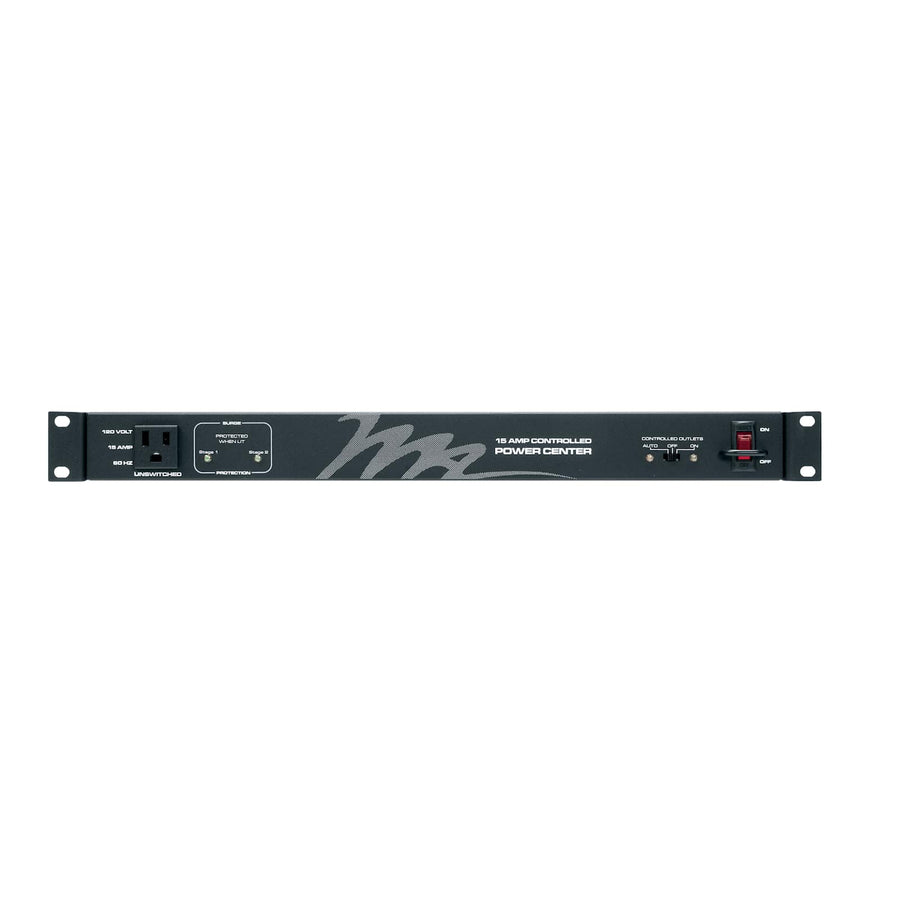

Rackmount Power, 6 Outlet Control, 9 Outlet, 15A, & 2-Stage Surge Protection
1RU rackmount power strip with 9 total outlets, featuring 6 dry contact controlled rear outlets and 2-stage surge protection
The Middle Atlantic PDC-915R-6 is a 1RU intelligent power solution designed to provide sequenced or controlled power distribution within a rack. This 15 Amp unit provides a total of 9 outlets, including 6 rear outlets that are managed via dry contact control. These controlled outlets allow for automated power cycling or sequencing of sensitive equipment. For convenience, the unit also features one front-facing outlet for easy access. Electrical protection is handled by a 2-stage surge and spike protection system that includes notification capabilities to alert the user of protection status. The unit operates on 120 VAC with a 5-15P plug type and includes a 9 ft (2.7 m) corded power cable. This ETL Listed component occupies 1.75 in (4.4 cm) of vertical rack space and has a depth of 9.81 in (24.9 cm). Installation requires 2 mounting points for secure placement in a standard 19 in (48.3 cm) wide rack.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Amps | 15 Amp |
| Cord Length | 9 ft (2.7 m) |
| Depth | 9.81 in (24.9 cm) |
| Height | 1.75 in (4.4 cm) |
| Rack Units | 1 RU |
| Shipping Weight | 9.2 lbs (4.2 kg) |
| Volts AC | 120 VAC |
| Width | 19 in (48.3 cm) |
All other specifications 10
| Cable Type | Corded |
| Mounting Points | 2 |
| Number of Circuits | 1 |
| Outlet Control Type | 6 |
| Outlet Count | 9 |
| Plug Type | 5-15P |
| Surge Protection Type | 2-Stage |
| TAA Compliant | No |
| UPC | 656747125706 |
| Certifications | ETL Listed |
Resources
Questions about this part
How is the outlet control managed on the PDC-915R-6?
This unit features 6 controlled outlets on the rear that utilize dry contact control for power management.
Does the PDC-915R-6 include surge protection?
Yes, it features 2-stage surge and spike protection that includes notification features.
What is the cord length and plug type for this power strip?
The PDC-915R-6 comes with a 9 ft (2.7 m) cord and uses a standard 5-15P plug.
What is the total outlet count for this rackmount unit?
This model provides 9 total outlets, including 6 rear distribution outlets and one front convenience outlet.
Which document should I use for submittal or installation?
The PDC Series Instruction Sheet is available for operation guidance, and the A&E Specification Sheet provides technical details.
