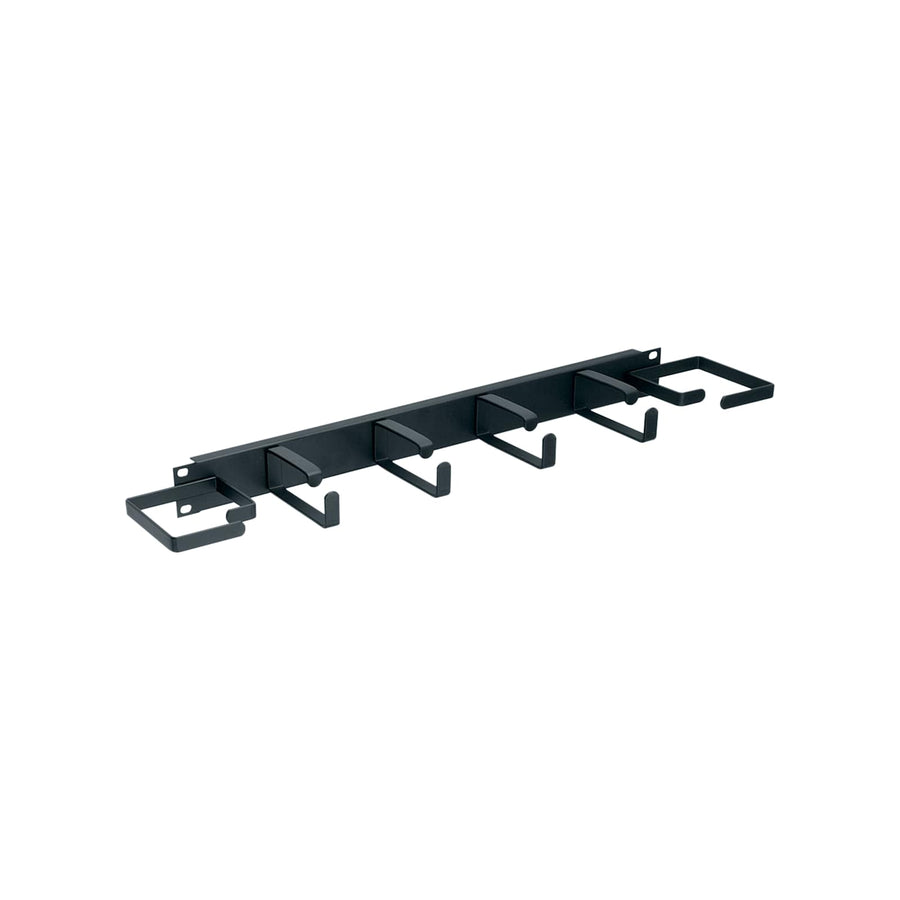

1 RU Horizontal Cable Manager with Horizontal/Vertical D-Rings
1 RU horizontal cable manager with D-rings to organize patch cords and maintain required bend radius
The Middle Atlantic HCM-1DV is a 1 RU horizontal cable manager designed to organize patch cords and maintain a required bend radius within a rack. This component utilizes D-Rings to provide a creative solution for adding individual cable management to a rack or a wall when used with appropriate fasteners. Constructed from 16-gauge steel, the unit has a width of 22.5 in (57.2 cm), a height of 1.75 in (4.4 cm), and a depth of 4.22 in (10.7 cm). For optimal performance and to avoid overcrowding, it is recommended not to exceed a 50% fill rate when passing cables through the cable rings. This 1 RU manager includes 2 mounting points and is part of the HCM series.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Depth | 4.22 in (10.7 cm) |
| Height | 1.75 in (4.4 cm) |
| Rack Units | 1 RU |
| Width | 22.5 in (57.2 cm) |
| Component Type | Horizontal |
| Mounting Points | 2 |
| TAA Compliant | No |
| UPC | 656747008122 |
Resources
Questions about this part
What is the maximum cable fill for the HCM-1DV?
For optimal performance, do not exceed a 50% fill rate when passing cables through the cable rings.
What are the dimensions of this 1 RU cable manager?
The HCM-1DV measures 22.5 in (57.2 cm) wide, 1.75 in (4.4 cm) high, and 4.22 in (10.7 cm) deep.
Can I use this for wall mounting?
Yes, the D-Rings can be used for adding individual management to a wall when used with appropriate fasteners.
How many mounting points does the HCM-1DV have?
This 1 RU manager is equipped with 2 mounting points.
