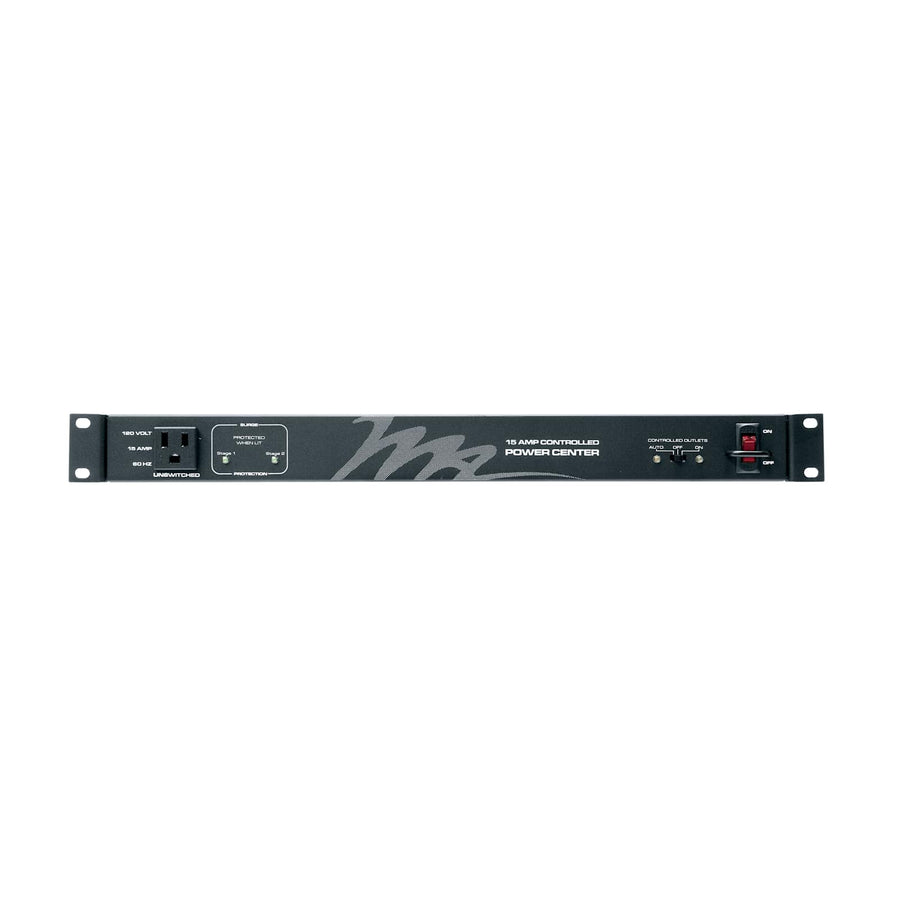

Rackmount Power, 2 Outlet Control, 9 Outlet, 15A, & 2-Stage Surge Protection
1U rackmount power strip with 9 total outlets, including 2 dry contact controlled rear outlets and 2-stage surge protection
The Middle Atlantic PDC-915R-2 provides intelligent power distribution within a single rack unit. This 15 Amp, 120 VAC power strip is designed to fit into standard 19-inch rack spaces, occupying 1 RU of vertical space. It features a total of 9 outlets, which includes two controlled outlets on the rear utilizing dry contact control. These rear outlets allow for remote power sequencing or shutdown via external control systems. For ease of use in a rack environment, the unit also includes one front-facing convenience outlet. To protect sensitive equipment, the PDC-915R-2 incorporates 2-stage surge and spike protection and provides notification when protection is active. The unit is supplied with a 9 ft (2.7 m) cord and utilizes a standard 5-15P plug type. This ETL Listed component is ideal for integrators requiring specific power management and surge mitigation in professional AV racks.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Amps | 15 Amp |
| Cord Length | 9 ft (2.7 m) |
| Depth | 9.81 in (24.9 cm) |
| Height | 1.75 in (4.4 cm) |
| Rack Units | 1 RU |
| Shipping Weight | 9 lbs (4.1 kg) |
| Volts AC | 120 VAC |
| Width | 19 in (48.3 cm) |
All other specifications 10
| Cable Type | Corded |
| Mounting Points | 2 |
| Number of Circuits | 1 |
| Outlet Control Type | 2 |
| Outlet Count | 9 |
| Plug Type | 5-15P |
| Surge Protection Type | 2-Stage |
| TAA Compliant | No |
| UPC | 656747125690 |
| Certifications | ETL Listed |
Resources
Questions about this part
How does the outlet control work on the PDC-915R-2?
The PDC-915R-2 includes two rear outlets that utilize dry contact control, allowing them to be managed via external control systems for sequencing.
What is the difference between the front and rear outlets?
The unit provides 9 total outlets, featuring two controlled outlets located on the rear and one convenience outlet located on the front for easy access.
What kind of surge protection does this unit offer?
This power strip provides 2-stage surge and spike protection and includes a notification feature for when protection is engaged.
What is required for installation in a standard rack?
This 1U device is 19 in (48.3 cm) wide and utilizes 2 mounting points for secure installation in a standard rack.
Which document should I use for installation or submittals?
You can refer to the PDC Series Instruction Sheet for operation or the Rackmount Power Strips Dry Contact Controlled A&E Specification Sheet for technical details.
