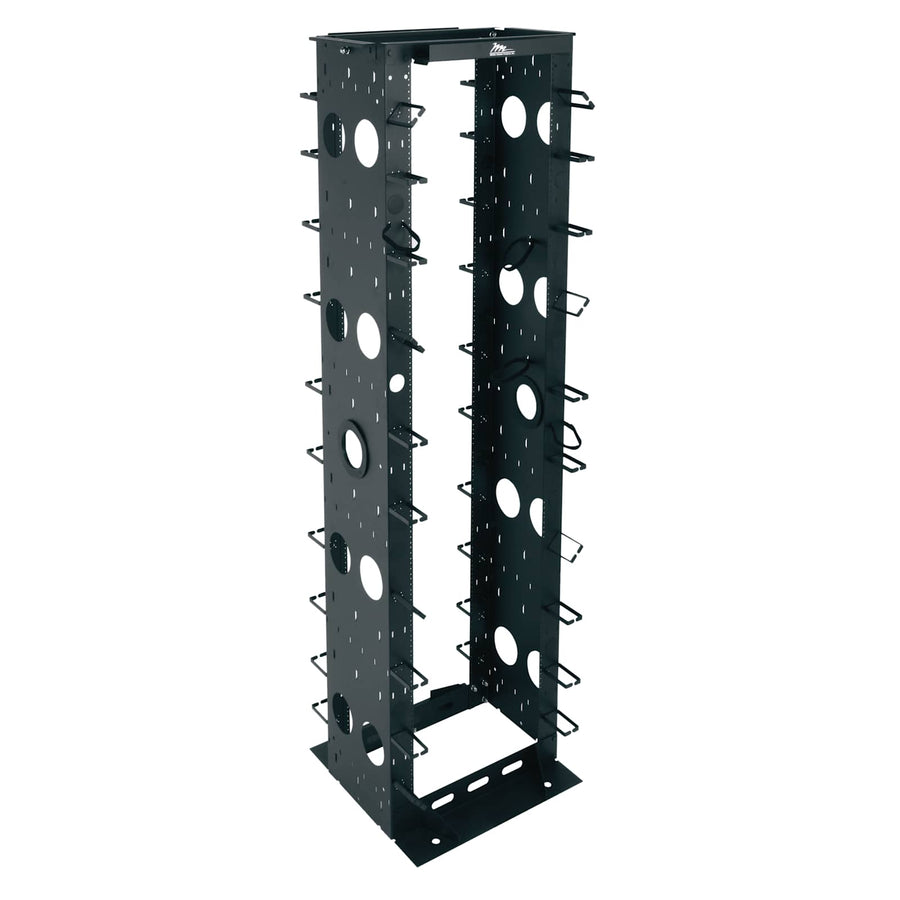

MK Series Cable Management Rack - MK-1945-24
45 RU cable management rack with 500 lbs capacity, seismic rated, and 14" deep cable channels
The MK-1945-24 is a 45 RU MK Series Cable Management Rack designed to handle massive cable bundles in high-density environments. This seismic-rated rack features a sturdy steel construction and an ASCE 7-10 rating, ensuring stability under load. It provides a usable height of 78.75" (200 cm) within a total height of 84.28" (214.1 cm) and a total depth of 24" (61 cm). To facilitate efficient organization, the unit includes integral top cable ladders and cable trays in both the front and rear, alongside 14" deep channels. The rack is built with 10-32 threaded front and rear rails and incorporates captive fasteners to speed up assembly by eliminating loose bolts. This TAA compliant unit is manufactured in the USA and supports a total weight capacity of 500 lbs (226.8 kg). For cable organization, it comes equipped with hook and loop fasteners and front cable feed-through hole plugs.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 24 in (61 cm) |
| Height | 84.28 in (214.1 cm) |
| Rack Units | 45 RU |
| Shipping Weight | 92 lbs (41.7 kg) |
| Usable Depth | 14 in (35.6 cm) |
| Usable Height | 78.75 in (200 cm) |
| Weight Capacity | 500 lbs (226.8 kg) |
| Width | 23.96 in (60.9 cm) |
All other specifications 8
| Federal Ops Country of Origin | USA |
| Rack Rail Type | 10-32 |
| Seismic Rated | Yes |
| TAA Compliant | Yes |
| UPC | 656747068850 |
| ASCE Number | 7-10 |
| Certifications | TAA |
| Seismic Load Capacity | 500 lbs (226.8 kg) |
Resources
You'll need these with it
2 RU Hinged Horizontal Cable Manager
HHCM-2$94.50
Power Strip, 24 Outlet, 30A, 2 Circuits Twistlock Plug
PD-2X1215TL-30CB$1,429.20
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
PDT Low Profile Vertical Power Strip with TwistLock Plug, 20 Outlet, 20A with Local Meter
PDT-2020TL-M-NS$703.80
45 RU Cable Duct 6 Inches Wide - Dual Duct
VCD-6-45-DC$1,913.40
USC Universal Sequencing Controller 1 Space Sequencing Controller
USC-6R$1,044.90
MPR Power Module 30A, L5-30R Twistlock
RLM30-L530-1$763.20
MPR Module 15A, Controlled Stand-Alone
RLM-15-1CA$288.00
MPR Power Module 20A, L5-20R Twistlock
RLM30-L520-1$716.40
MPR Module 20A, Controlled Stand-Alone
RLM-20-1CA$306.00
PDW Power Strip, 24 Outlet, 20A & 12 Circuit with J-Box
PDW-12X220J$1,318.50
Rackmount Power, 6 Outlet Control, 9 Outlet, 15A, & 2-Stage Surge Protection
PDC-915R-6$462.60
Questions about this part
Is the MK-1945-24 suitable for seismic installations?
Yes, this rack is seismic rated with an ASCE 7-10 rating and a seismic load capacity of 500 lbs (226.8 kg).
What is the usable depth of this MK Series rack?
The MK-1945-24 provides a usable depth of 14" (35.6 cm) within its 24" (61 cm) total depth.
What hardware is included for installation?
This rack includes 100 rack screws, 2 J-bolts, hook and loop fasteners, and front cable feed-through hole plugs.
What is the difference between this and other MK Series racks?
The MK-1945-24 is a 45 RU variant in the MK Series; other versions in the series may offer different heights or configurations.
Which documents are available for submittals?
You can access the MK-1945-24 Instruction Sheet, the MK Series Seismic Certification letter, and CAD technical drawings for your submittal.
