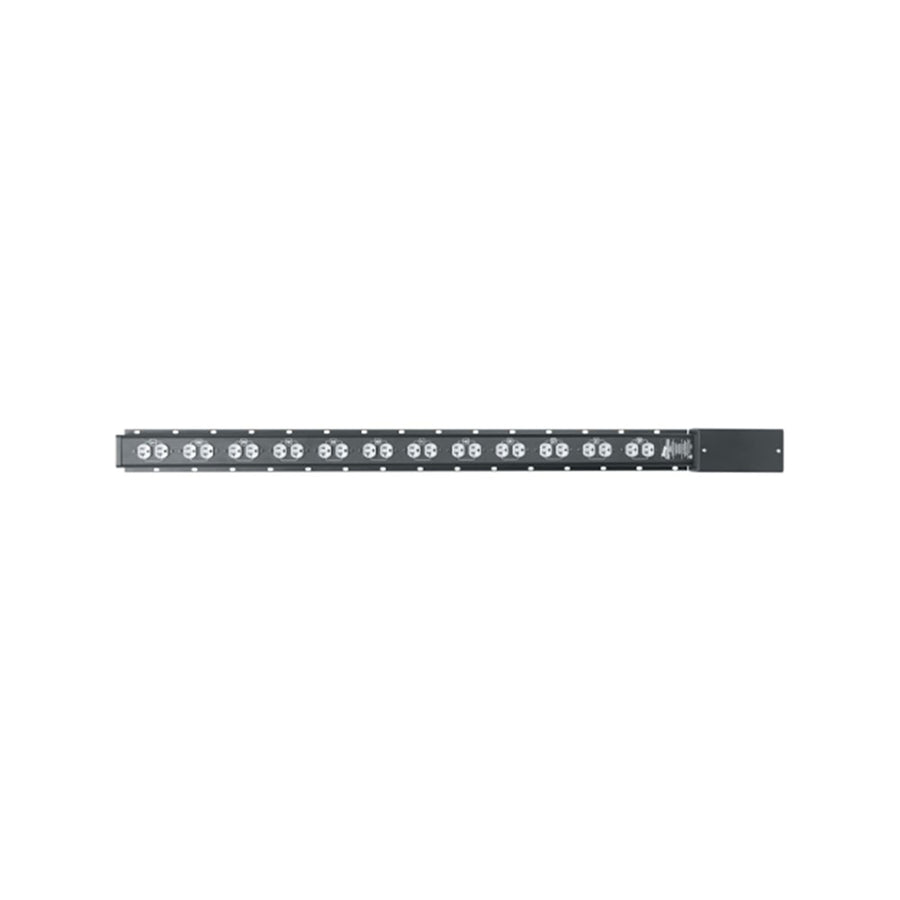

PDW Power Strip, 24 Outlet, 20A & 12 Circuit with J-Box
Custom 24-outlet vertical power strip featuring 12 circuits, 20 Amp capacity, and a J-Box connection for high-capacity installations
The PDW-12X220J is a custom-configured vertical power strip designed for high-capacity, multi-circuit applications that require varied power capacities within a single unit. This specific model provides 24 outlets distributed across 12 distinct circuits to accommodate power-hungry installations. It is rated for 20 Amp service and features a hard-wired J-Box plug type for secure installation. Measuring 61.5 in (156.2 cm) in height with a 4.1 in (10.4 cm) width and 2.7 in (6.9 cm) depth, this strip is ETL Listed and TAA compliant. The PDW Series is built for customization, offering options for isolated or standard ground, as well as specific receptacle types, orientations, and labeling to meet precise project requirements.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Amps | 20 Amp |
| Depth | 2.7 in (6.9 cm) |
| Height | 61.5 in (156.2 cm) |
| Shipping Weight | 14.5 lbs (6.6 kg) |
| Width | 4.1 in (10.4 cm) |
| Cable Type | Hard-Wired |
| Number of Circuits | 12 |
| Plug Type | J-Box |
| Special Features | Configurable Power |
| UPC | 656747117558 |
| Certifications | ETL Listed |
Resources
Questions about this part
What is the circuit and outlet count for the PDW-12X220J?
This specific model features 12 circuits providing a total of 24 outlets for high-capacity power needs.
How is this power strip connected to the building power supply?
The PDW-12X220J is a hard-wired unit that utilizes a J-Box plug type for installation.
What are the dimensions of the PDW-12X220J?
The vertical strip measures 61.5 in (156.2 cm) in height, 4.1 in (10.4 cm) in width, and 2.7 in (6.9 cm) in depth.
Is this power strip TAA compliant?
Yes, the PDW-12X220J is TAA compliant and is ETL Listed.
Can I customize the labeling on the outlets?
Yes, the PDW Series allows for custom laser marking for circuit identification and custom laser engraved messaging or logos upon request.
