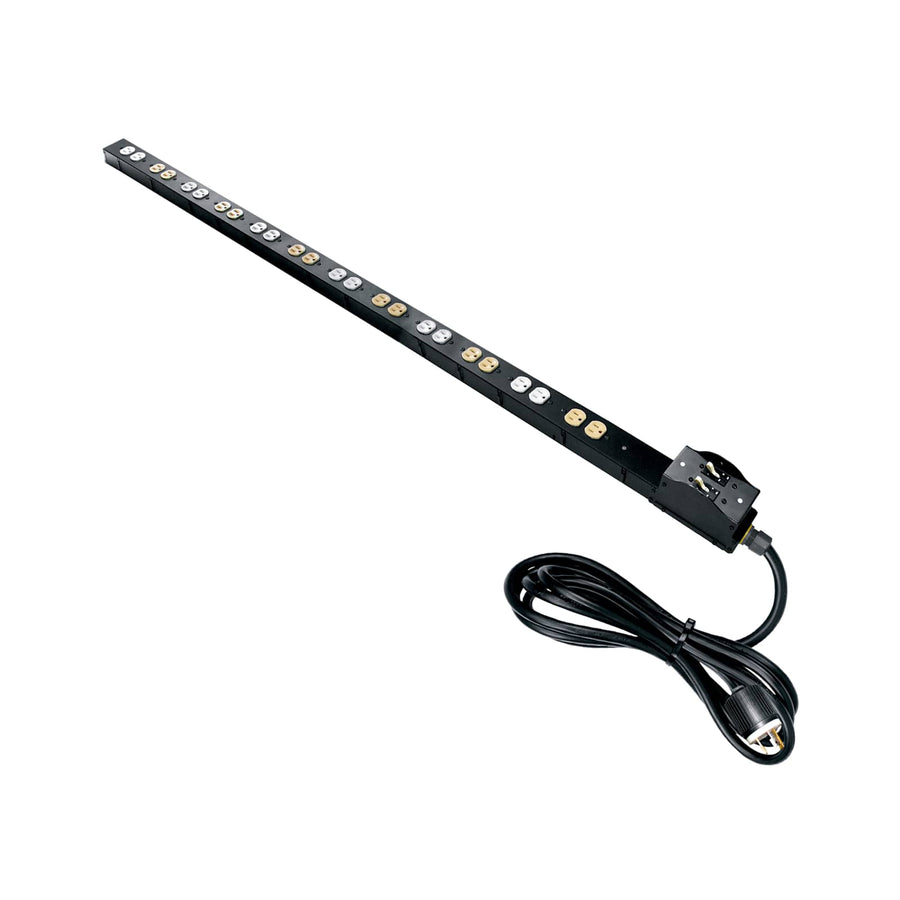

Power Strip, 24 Outlet, 30A, 2 Circuits Twistlock Plug
24-outlet vertical power strip with 30A capacity, featuring two independent 15A circuits and an L5-30P twistlock plug
The PD-2X1215TL-30CB is a vertical power distribution strip designed to manage high-density power needs within a rack or enclosure. This unit provides 24 total outlets divided into two independent 15A circuits, all fed by a single 30A branch circuit. To help installers manage load distribution, the outlets are color-coded to clearly indicate which circuit they belong to. Each circuit contains 6 duplex outlets. Safety is managed via dual circuit breakers that feature a lock-out pin to prevent accidental tampering. This corded power strip has a 9 ft (2.7 m) cable and uses an L5-30P twistlock plug. It is TAA compliant and UL listed, making it suitable for various professional integration environments.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Amps | 30 Amp |
| Cord Length | 9 ft (2.7 m) |
| Depth | 1.52 in (3.9 cm) |
| Height | 56.5 in (143.5 cm) |
| Shipping Weight | 16.2 lbs (7.4 kg) |
| Width | 2.82 in (7.2 cm) |
| Cable Type | Corded |
| Number of Circuits | 2 |
| Outlet Count | 24 |
| Plug Type | L5-30P |
| UPC | 656747080944 |
| Certifications | UL Listed |
Resources
Questions about this part
How are the two circuits distributed on the PD-2X1215TL-30CB?
The 24 outlets are divided into two independent 15A circuits, with each circuit containing 6 duplex outlets.
What type of plug is required for this power strip?
The PD-2X1215TL-30CB uses a 30A L5-30P twistlock plug to ensure a secure connection to the branch circuit.
Does this unit include circuit protection?
Yes, it features dual circuit breakers that include a lock-out pin designed to prevent tampering.
Is the PD-2X1215TL-30CB TAA compliant?
Yes, this model is TAA compliant and UL listed for professional installations.
What is the physical height of the power strip?
The PD-2X1215TL-30CB has a height of 56.5 in (143.5 cm) for vertical mounting.
