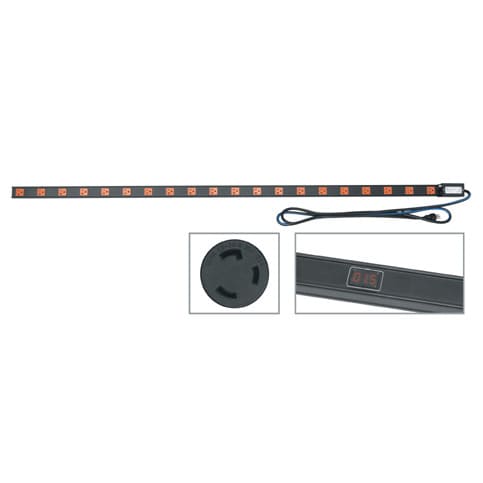

PDT Low Profile Vertical Power Strip with TwistLock Plug, 20 Outlet, 20A with Local Meter
Vertical 20-outlet power strip with 20A twist-lock plug, local amperage meter, and SignalSAFE™ cord
The Middle Atlantic PDT-2020TL-M-NS is a low-profile vertical power distribution unit designed to maximize rack space by mounting unobtrusively in the back of a rack. This 20-outlet strip provides 20A of power via a 120 VAC L5-20P twist-lock plug, which secures the connection to prevent accidental unplugging. An integrated local meter with a bright LED display allows installers to monitor real-time amperage draw for the equipment on the circuit. The unit features a 73.13 in (185.8 cm) height and a slim 2.1 in (5.3 cm) depth to ensure it fits within tight rack environments. To reduce electromagnetic interference, the unit includes a 9 ft (2.7 m) SignalSAFE™ power cord. This PDT model is ETL Listed and includes mounting hardware that allows it to snap directly onto all Middle Atlantic rack rail brackets.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Amps | 20 Amp |
| Cord Length | 9 ft (2.7 m) |
| Depth | 2.1 in (5.3 cm) |
| Height | 73.13 in (185.8 cm) |
| Shipping Weight | 7 lbs (3.2 kg) |
| Volts AC | 120 VAC |
| Width | 2.13 in (5.4 cm) |
| Cable Type | Corded |
All other specifications 8
| Finish | Black Anodized |
| Local Meter | Yes |
| Number of Circuits | 1 |
| Outlet Count | 20 |
| Plug Type | L5-20P |
| TAA Compliant | No |
| UPC | 656747129827 |
| Certifications | ETL Listed |
Resources
Questions about this part
What kind of plug does the PDT-2020TL-M-NS use?
This unit features a 20A L5-20P twist-lock plug, which ensures the power cord remains securely seated and cannot be accidentally unplugged.
How do I monitor the power usage on this PDU?
The PDT-2020TL-M-NS includes a built-in local meter with a bright LED display that shows the current amperage being drawn by your equipment.
Will this PDU fit my Middle Atlantic rack?
Yes, the PDT series is designed to mount to every style of Middle Atlantic rack rail brackets using the included mounting hardware.
What is the length of the power cord?
The unit comes with a 9 ft (2.7 m) SignalSAFE™ power cord designed to minimize potential interference from AC magnetic fields.
What documentation is available for submittals?
You can access the PDT Series instruction sheet, the 3-part specification, or the full A&E specification sheet in the Resources tab.
