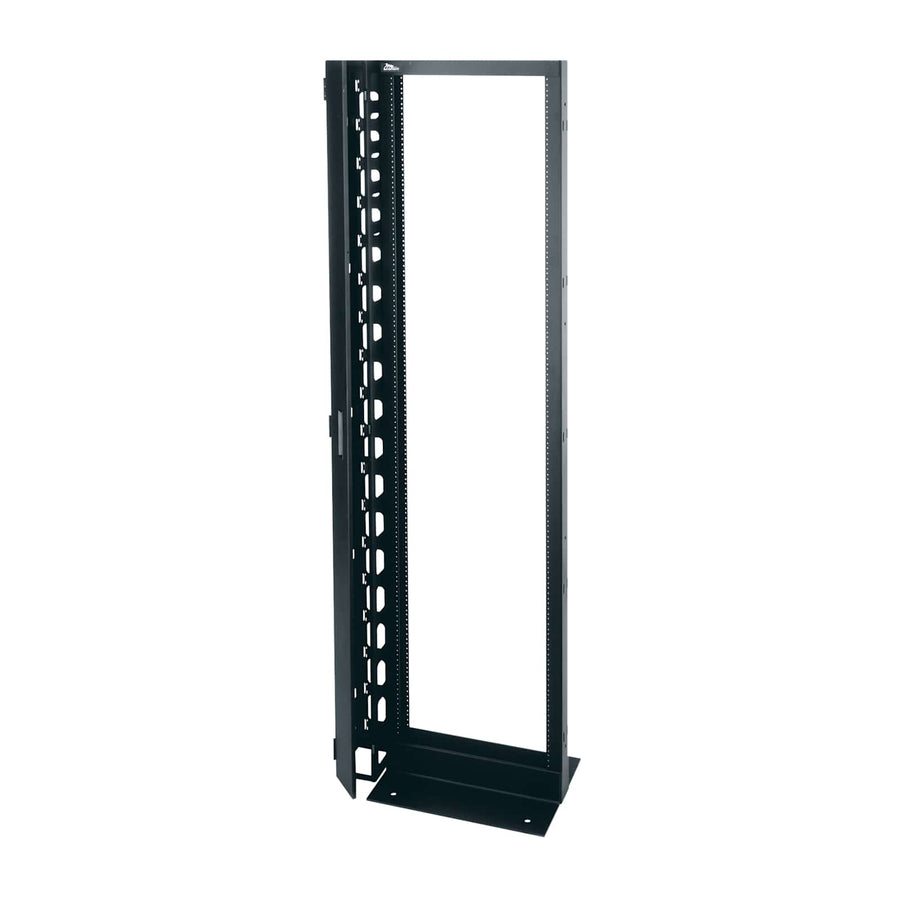

RLA Series 2 Post Aluminum Open Frame Rack - RLA19-1245B
45 RU two-post aluminum open frame rack with 15" depth and 400 lbs UL load capacity
The RLA19-1245B is a 45 RU two-post aluminum open frame rack designed for high-density equipment integration. Featuring 3/16" aluminum channels, this rack is built with a heavy-duty 15" (38.1 cm) deep base that includes pre-drilled holes for floor mounting to ensure stability in permanent installations. The front and rear rails utilize 12-24 threaded mounting, which includes numbered rackspace increments to simplify component alignment. This series provides a 78.75 in (200 cm) usable height and a 20.28 in (51.5 cm) width. For installers managing power distribution, please note that the PB-5A power bracket is required to mount vertical power strips within this rack. The unit arrives with 50 pieces of 12-24 threaded rack screws to assist with initial setup.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 15 in (38.1 cm) |
| Height | 84 in (213.4 cm) |
| Rack Units | 45 RU |
| UL Load Capacity | 400 lbs (181.4 kg) |
| Usable Depth | 3 in (7.6 cm) |
| Usable Height | 78.75 in (200 cm) |
| Width | 20.28 in (51.5 cm) |
| Color | Black |
All other specifications 5
| Federal Ops Country of Origin | USA |
| Rack Rail Type | 12-24 |
| TAA Compliant | Yes |
| UPC | 656747046490 |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
2 RU Utility Rackshelf, 15.4 Inches Deep, Vented
U2V$96.30
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
2 RU Plastic Cable Manager, 3 Inches Deep
PHCM-2-3$61.20
2 RU Hinged Horizontal Cable Manager
HHCM-2$94.50
45 RU Cable Duct , 6 Inches Wide - Single Duct
VCD-6-45-SC$1,533.60
45 RU Cable Duct for RLA Racks
RLA-CC$476.10
3 RU Utility Rackshelf, 15.4 Inches Deep, Vented
U3V$111.60
Top Ladder Adapter for MK Series Racks
MK-LA$95.40
45 RU Cable Duct 6 Inches Wide - Dual Duct
VCD-6-45-DC$1,913.40
1 RU Utility Panel, 10 Piece
UP1P$190.80
PDT Low Profile Vertical Power Strip, 12 Outlet, 20A
PDT-1220C-NS$330.30
Questions about this part
What do I need to buy to install vertical power strips in this rack?
You must purchase the PB-5A power bracket to properly mount vertical power strips within the RLA19-1245B.
Is the RLA19-1245B TAA compliant for government contracts?
Yes, this rack is TAA compliant and is manufactured in the USA.
What is the maximum weight capacity for this rack?
The RLA19-1245B is UL Listed with a load capacity of 400 lbs (181.4 kg).
Does this rack include mounting hardware?
This rack includes 50 pieces of 12-24 threaded rack screws to facilitate installation.
How can I mount this rack to the floor?
The heavy-duty base is designed with built-in holes to allow the rack to be secured directly to the floor.
