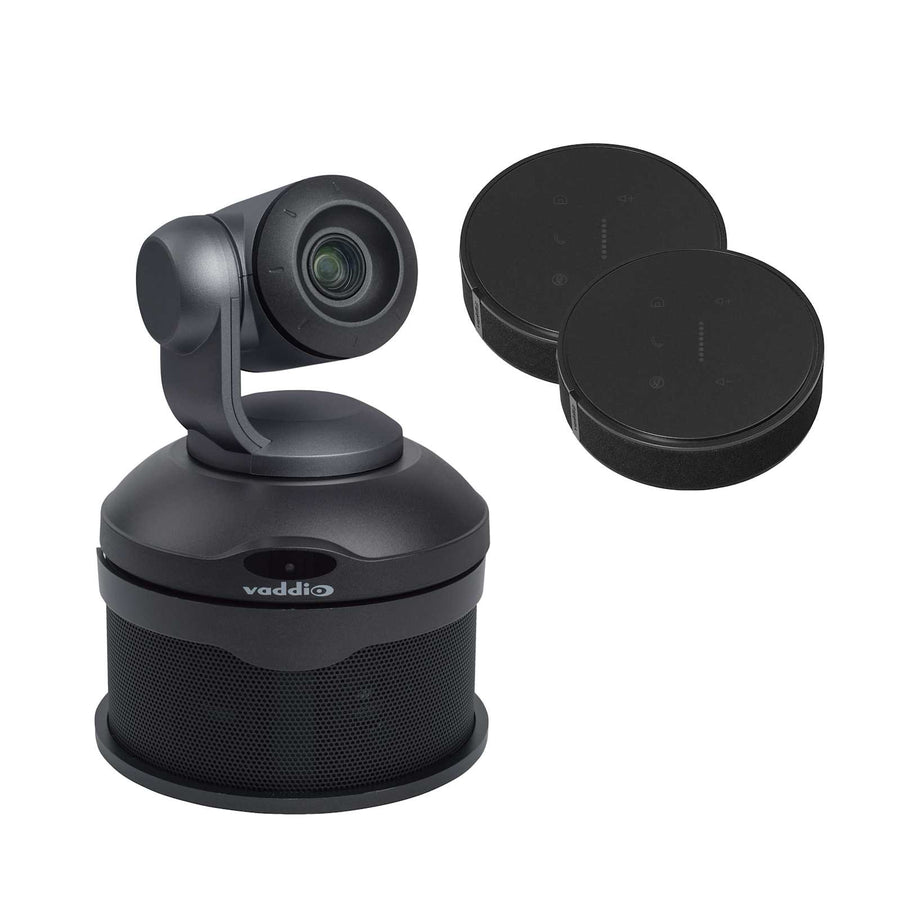

ConferenceSHOT AV HD Conference Room System
HD PTZ camera and audio conferencing mixer system with 10x zoom, 2 TableMIC microphones, and speaker for small to medium rooms
The Vaddio 999-99950-400B ConferenceSHOT AV is an integrated HD conferencing solution designed for small to medium-sized rooms. This system combines a 10x zoom PTZ camera with an audio conferencing mixer into a single USB 3.0 device, facilitating easy connection to up to two microphones and an external speaker. Designed for rapid deployment in BYOD environments, it offers plug-and-play functionality with major UCC software clients, including Microsoft Teams, Google Meet, and Zoom. The system is UVC compliant, eliminating the need for external drivers on a PC. For enterprise-level management, the 999-99950-400B features a built-in browser-based user interface, allowing for remote monitoring, setup, and IP-live preview from PCs, Macs, or mobile devices like iPhone, iPad, and Android. Control is highly versatile, supporting IR remote, joystick, Telnet, touch screens, and the Web UI. This bundle is TAA compliant and is certified for Barco ClickShare Conference. The package is configured in black and includes a PoE+ Midspan Power Injector with an AC cord set, a thin profile wall mount, and a 6' USB 3.0 cable (Type A to B) for immediate installation.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | Camera: 5.5" (145 mm) Speaker: 6.75" (171 mm) |
| Height | Camera: 6.3" (163 mm) Speaker: 3.63" (92 mm) |
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Product Weight | 5.54 lbs (2.5 kg) |
| Shipping Dimensions | 28" x 13" x 18" (711.2 x 330.2 x 457.2 mm) |
| Shipping Weight | 17 lbs (7.7 kg) |
| Width | Camera: 6.1" (155 mm) Speaker: 7.25" (184 mm) |
| 3rd Party Control | Telnet |
All other specifications 39
| Audio Type | MicrophoneMixers and IO DevicesSpeaker |
| Browser-based User Interface for Remote Control | Built-in |
| Camera Type | PTZ |
| Color | Black |
| Compatible With | Vaddio |
| Control Method | IR RemoteJoystickTelnetTouch ScreenWeb UI |
| Estimated Room Size | Medium RoomSmall Room |
| Field of View | 74° Wide End to 7.6° Tele End |
| Field of View Wide | Greater than 70 |
| Focus System | AutoManual |
| Gain | AutoManual |
| Image Sensor Type | 1-2_8 Exmor CMOS |
| Input Ports | EasyMICNetworkUSB 3.0 |
| Invertible | Yes |
| Manufacturer | Vaddio |
| Max Resolution | 1080p 60 |
| Microphones | Two Table Microphones |
| Minimum Illumination | 0.4 Lux (F1.6) |
| OneLINK Compatibility | No |
| Output Ports | AudioIP StreamingNetworkUSB 3.0 Type B |
| Pan and Tilt Range | Tilt: +90· to -30°Pan: ±162° |
| Pan and Tilt Speed | 0.35°/sec - 90°/sec |
| Pixels | 2.14 Megapixel |
| Power Cord | US Cord |
| Power Supply | PoE+ |
| Power Type | PoE+ |
| Preset Positions | 16 Custom Home Position |
| PTZ Motors | Stepper Motors |
| Quick-Connect Compatibility | No |
| Signal Type | AudioIP StreamingUSB 2.0USB 3.0 |
| Solution Type | Conference Room System |
| Speaker | ConferenceSHOT AV Speaker |
| TAA Compliant | YesYes |
| Tri-Sync Motion | No |
| UPC | 840077506414 |
| White Balance | AutoManualOne Push |
| Zoom | 10x |
| Certifications | CECertified for Barco ClickShare ConferenceFCCTAAUL Listed |
| Warranty | 3 years |
Resources
You'll need these with it
Vaddio Device Controller
999-42300-000$855.00
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
Above/Below ConferenceSHOT ePTZ Camera Mount for Large Displays
PAC800K$116.00
Suspended Ceiling Mount for Vaddio Cameras
535-2000-206$141.30
CeilingMIC Microphone
999-85100-000$641.70
TableMIC Microphone
999-85000-000$570.60
ConferenceSHOT AV Table Mount
999-89995-000$184.50
Superbooster® 1-Port USB over Cat6a Box to Box Extender Kit - USB 3.2 Gen1 (5Gbps)
C2G54266$681.99
Superbooster® 1-Port USB over Cat6a Wall Plate to Box Extender Kit - USB 3.2 Gen1 (5Gbps)
C2G54267$681.99
Superbooster® 1-Port USB over Cat6a Wall Plate to Wall Plate Extender Kit - USB 3.2 Gen1 (5Gbps)
C2G54268$681.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
8 PoE+ | 2 RJ45 | 2 SFP Front-Facing Ports - 1Gb L2/L3 Managed Switch, US Power Cord
SW-505-8P-F$657.00
Verified fitment
Questions about this part
What is included in the ConferenceSHOT AV 999-99950-400B bundle?
This bundle includes the ConferenceSHOT AV camera (black), ConferenceSHOT AV speaker (black), 2 TableMIC microphones (black), a thin profile wall mount with hardware, an IR remote commander, a PoE+ Midspan Power Injector, and necessary cabling including a 6' USB 3.0 cable.
Does the 999-99950-400B work with Microsoft Teams or Zoom?
Yes, it offers plug-and-play UVC compliance with major UCC soft clients, including Microsoft Teams, Google Meet, and Zoom, making it ideal for BYOD setups.
Can I control the camera remotely?
Yes, you can manage the camera network through a built-in browser-based user interface for IP-live preview and setup using a PC, Mac, or mobile device.
What mounting options are available for this system?
The package includes a thin profile wall mount. Additional options such as a Table Mount (999-89995-000) or a Suspended Ceiling Mount (535-2000-206) can be purchased separately.
How do I power the ConferenceSHOT AV system?
The system is powered via PoE+ and comes with a PoE+ Midspan Power Injector and an AC cord set included in this bundle.
