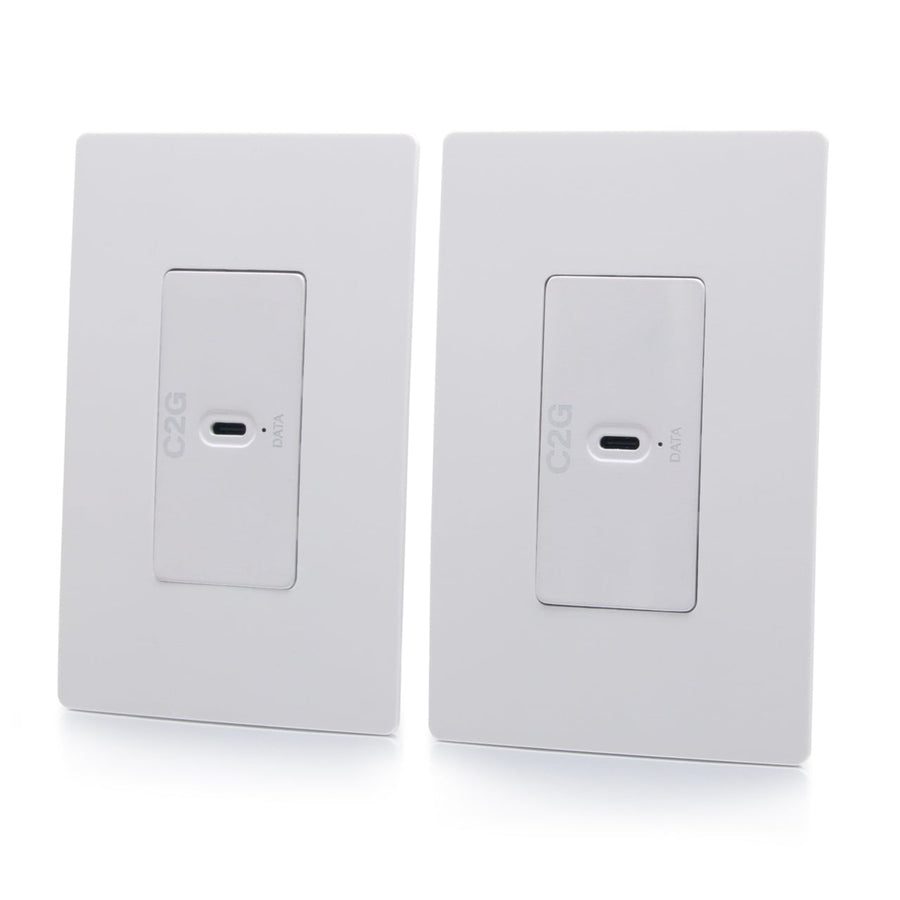

Superbooster® 1-Port USB over Cat6a Wall Plate to Wall Plate Extender Kit - USB 3.2 Gen1 (5Gbps)
USB 3.2 Gen1 extender kit for signal extension up to 328 ft (100 m) over Cat6a F/FTP cabling
The C2G C2G54268 Superbooster® 1-Port USB over Cat6a Wall Plate to Wall Plate Extender Kit provides high-speed USB 3.2 Gen1 data transmission for a wide range of peripherals. This kit is designed to extend signals from a host computer to devices like PTZ cameras, interactive whiteboards, printers, or storage drives across distances up to 328 ft (100 m) using a single Cat6a F/FTP network cable. The kit features a plug-and-play operation with no drivers required for deployment. It is backwards compatible with USB 2.0 and USB 1.1 technologies. For installation flexibility, the system supports bidirectional 24V Power over Cable (PoC), allowing the 24V/1A power supply to be connected at either the transmitter or the receiver end. This solution is TAA compliant and is suitable for professional environments such as command centers, lecture halls, and medical facilities. Note that this device is for data transmission only and does not support DisplayPort Alt Mode video.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Amps | 1 Amp |
| Cable Length | 1.72 in (4.4 cm) |
| Depth | 1.51 in (3.8 cm) |
| Height | Transmitter: 1.5" (3.85cm), Receiver: 1.5" (3.85cm) |
| Length | Transmitter: 4.2" (10.7cm), Receiver: 4.2" (10.7cm) |
| Max Distance Support | 328 ft (100 m) |
| Product Weight | 0.88 lbs (0.4 kg) |
| Shipping Weight | 1.15 lbs (0.5 kg) |
All other specifications 14
| Width | Transmitter: 1.7" (4.4cm), Receiver: 1.7" (4.4cm) |
| Color | White |
| Connector 1 | (1) RJ-45 Female(1) USB-C Female |
| Connector 2 | (1) RJ-45 Female(1) USB-C Female |
| Federal Ops Country of Origin | Taiwan |
| Product Type | Active DeviceExtenderKit |
| Signal Type | USB 3.2 Gen 1 |
| Special Features | Data Transfer Protocol: Isochronous, Control, Interrupt, and BulkNumber of Tiers Occupied: 1 |
| TAA Compliant | Yes |
| Technology Specifications | USB 1.3USB 2.0USB 3.2 |
| UPC | 757120542681 |
| Certifications | CEFCCProp 65REACHRoHSTAAUKCA |
| Data Transfer Rate | 5 GBPS |
| Warranty | 5 years |
Resources
You'll need these with it
6.5ft (2m) USB-C® Male to USB-C Male Cable (20V 3A) - USB 3.2 Gen 1 (5Gbps)
C2G28883$42.99
15ft (4.6m) Cat6a Snagless Unshielded UTP Ethernet Network Patch Cable - Blue
CG00701$25.99
3ft (0.9m) USB-C to C 3.2 Gen 1 (5Gbps) Male to Female Extension Cable
CG28656$28.99
10ft (3m) Cat6a Snagless Unshielded UTP Ethernet Network Patch Cable - Blue
CG00698$15.99
3ft (0.9m) Cat6a Snagless Unshielded UTP Ethernet Network Patch Cable - Black
CG00725$11.99
3.3 ft (1m) USB-C 3.2 (Gen 2) Male to Male Cable (20V 5A)
CG28848$40.99
1.5ft (0.46m) USB-C® Male to USB-A Male Cable - USB 3.2 Gen 1 (5Gbps)
C2G28876$16.99
7ft (2.1m) Cat6a Snagless Unshielded UTP Ethernet Network Patch Cable - Black
CG00729$14.99
10ft (3m) Cat6a Snagless Shielded STP Ethernet Network Patch Cable - Black
CG00715$25.99
Questions about this part
Will this C2G54268 extender work with my PTZ camera?
Yes, it is tested and proven to support leading PTZ cameras at either 1080p or 4K resolutions depending on the specific camera model.
Can I send video through this USB extender?
No, this device supports data transmission only and does not provide DisplayPort Alt Mode video support.
How do I provide power to the receiver end?
The system supports bidirectional 24V PoC, meaning you can supply power from either the transmitter or the receiver end.
What type of cabling is required for this installation?
This kit requires a Cat6a F/FTP network cable to achieve the full 328 ft (100 m) extension range.
Does this kit include the power supply and mounting hardware?
The package includes one Transmitter, one Receiver, a 24V/1A multinational power supply with conversion plug, two 3.5mm Phoenix connectors, and four machine screws.
