ConferenceSHOT AV HD Conference Room System
HD PTZ camera and audio mixer system for small to medium conference rooms, featuring 10x zoom and dual CeilingMIC microphones

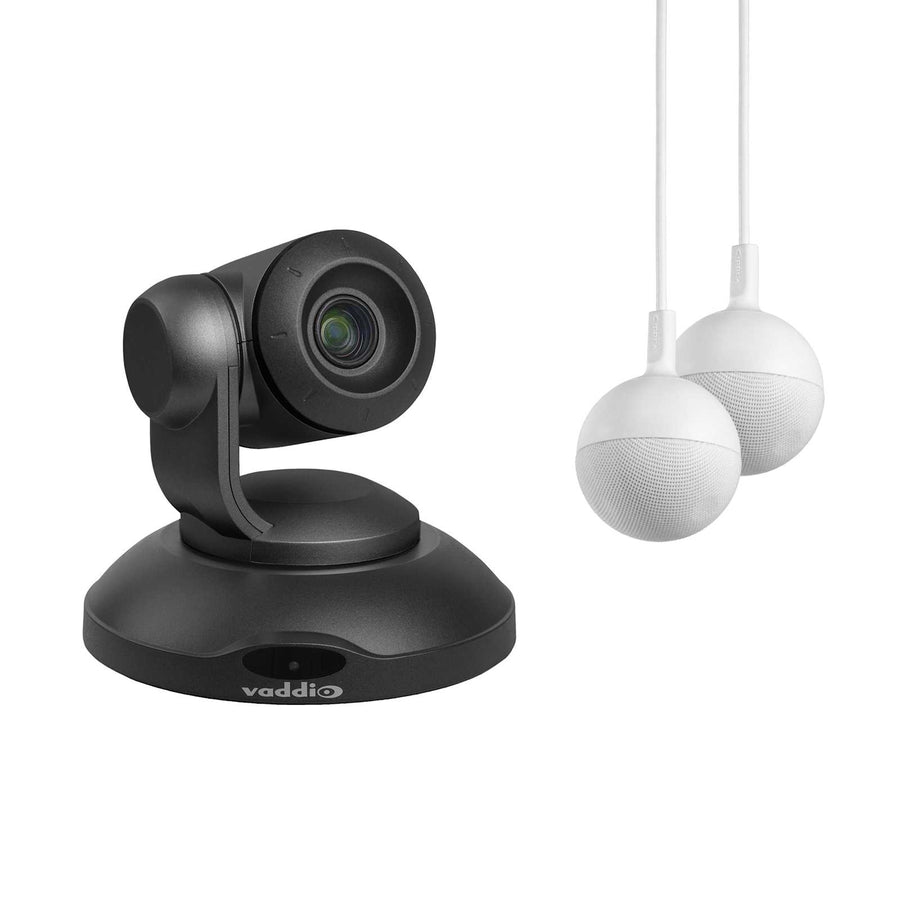

The Vaddio 999-99950-700B ConferenceSHOT AV HD Conference Room System provides an integrated video and audio solution for small to medium-sized conferencing spaces. This bundle includes the black ConferenceSHOT AV PTZ camera, two white CeilingMIC microphones, two silicone split strain relief boots, and two CeilingMIC interface boxes. To simplify deployment, the system includes a PoE+ midspan power injector with a US cord set, allowing the camera to be powered via Ethernet. The camera features a 10x zoom with a field of view ranging from 74° wide to 7.6° tele end, making it capable of capturing participants effectively in various room layouts. For control, installers can utilize the built-in web UI, an IR remote commander, or Telnet. This TAA-compliant system is UVC compliant, ensuring plug-and-play functionality with major UCC platforms like Microsoft Teams, Zoom, and Google Meet via USB 3.0 or USB 2.0 interfaces.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 6.5 in (16.5 cm) |
| Height | 7 in (17.8 cm) |
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Product Weight | 3.6 lbs (1.6 kg) |
| Shipping Dimensions | 28" x 13" x 20" (711.2 x 330.2 x 508 mm) |
| Shipping Weight | 20 lbs (9.1 kg) |
| Width | 7.06 in (17.9 cm) |
| 3rd Party Control | Telnet |
All other specifications 38
| Audio Type | MicrophoneMixers and IO Devices |
| Browser-based User Interface for Remote Control | Built-in |
| Camera Type | PTZ |
| Color | Black |
| Compatible With | Vaddio |
| Control Method | IR RemoteJoystickTelnetTouch ScreenWeb UI |
| Estimated Room Size | Medium RoomSmall Room |
| Field of View | 74° Wide End to 7.6° Tele End |
| Field of View Wide | Greater than 70 |
| Focus System | AutoManual |
| Gain | AutoManual |
| Image Sensor Type | 1-2_8 Exmor CMOS |
| Input Ports | EasyMICNetworkUSB 3.0 |
| Invertible | Yes |
| Manufacturer | Vaddio |
| Max Resolution | 1080p 60 |
| Microphones | Two Ceiling Microphones |
| Minimum Illumination | 0.4 Lux (F1.6) |
| OneLINK Compatibility | No |
| Output Ports | AudioIP StreamingNetworkUSB 3.0 Type B |
| Pan and Tilt Range | Tilt: +90· to -30°Pan: ±162° |
| Pan and Tilt Speed | 0.35°/sec - 90°/sec |
| Pixels | 2.14 Megapixel |
| Power Cord | US Cord |
| Power Supply | PoE+ |
| Power Type | PoE+ |
| Preset Positions | 16 Custom Home Position |
| PTZ Motors | Stepper Motors |
| Quick-Connect Compatibility | No |
| Signal Type | AudioIP StreamingUSB 2.0USB 3.0 |
| Solution Type | Conference Room System |
| TAA Compliant | YesYes |
| Tri-Sync Motion | No |
| UPC | 840077506476 |
| White Balance | AutoManualOne Push |
| Zoom | 10x |
| Certifications | CEFCCTAAUL Listed |
| Warranty | 3 years |
Resources
Verified fitment
Questions about this part
What is included in the ConferenceSHOT AV 999-99950-700B bundle?
This package includes the black ConferenceSHOT AV camera, two white CeilingMIC microphones, two interface boxes, two white silicone split strain relief boots, a PoE+ midspan power injector with US cord, a thin profile black wall mount with hardware, and an IR remote commander.
Does this system work with Microsoft Teams or Zoom?
Yes, the system is UVC compliant and offers plug-and-play functionality with major UCC soft clients including Microsoft Teams, Google Meet, and Zoom via USB 3.0 or USB 2.0.
How is the camera powered and controlled?
The camera is powered via PoE+ and can be managed remotely through a built-in browser-based user interface, Telnet, or an IR remote commander.
What kind of wall mount is provided with this SKU?
This bundle includes a black thin profile wall mount along with the necessary mounting hardware and an installation manual.
What is the zoom and field of view for this PTZ camera?
The camera features a 10x zoom with a field of view that ranges from 74° at the wide end to 7.6° at the tele end.
