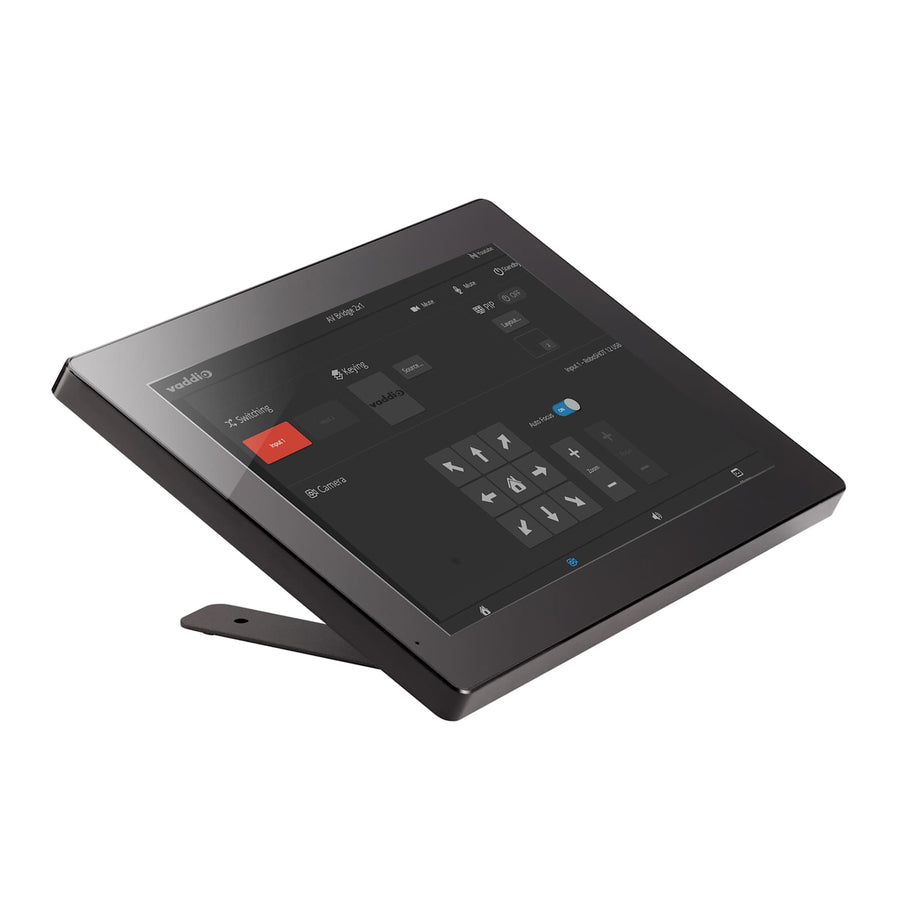

Vaddio Device Controller
10-inch color touch panel for controlling Vaddio PTZ cameras and EasyIP peripherals via PoE network connectivity
The Vaddio Device Controller 999-42300-000 provides a centralized 10-inch color touch screen interface to manage Vaddio hardware within a professional AV environment. This device allows users to access the web-based user interfaces of multiple connected devices through a single interface, including PTZ cameras and EasyIP peripherals like AV Bridge 2x1 or RoboSHOT 30E HDBT PTZ cameras. When installed on the same subnet as the target equipment, the controller can auto-discover devices using the scan function. This unit is ideal for lecture halls, conference rooms, and meeting spaces to manage video switching, camera presets, volume levels, and picture adjustments. The controller is powered via PoE, which simplifies installation by reducing cabling requirements. It includes a thin profile tabletop mount made of commercial-grade steel that features integrated category cable routing for a clean, modern aesthetic in professional installs.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 1.13 in (2.9 cm) |
| Height | 7 in (17.8 cm) |
| Shipping Dimensions | 22" x 13" x 7" (558.8 x 330.2 x 177.8 mm) |
| Shipping Weight | 3.5 lbs (1.6 kg) |
| Width | 10.25 in (26 cm) |
| Color | Black |
| Control Method | Touch Screen |
| Control Type | Touch Screen |
All other specifications 8
| Input Ports | Network |
| Max Resolution | 1280x800 |
| Power Supply | PoE |
| Power Type | PoE |
| TAA Compliant | No |
| UPC | 840077506513 |
| Certifications | CEFCC |
| Warranty | 3 years |
Resources
You'll need these with it
Mini Joystick & Vaddio Device Controller Table Stand
535-5775-000$170.10

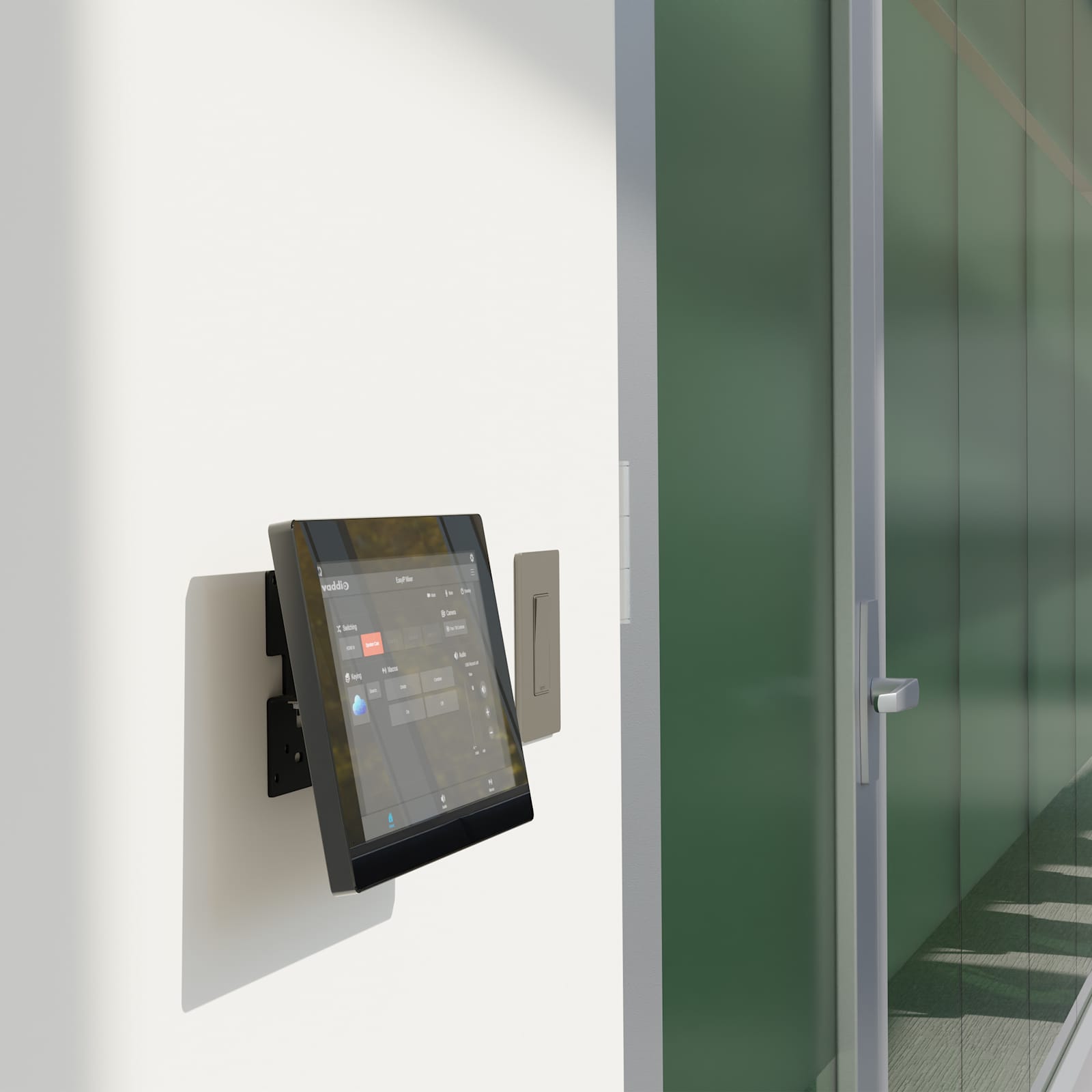

Vaddio Device Controller Tilt Wall Mount
535-2100-300$138.60

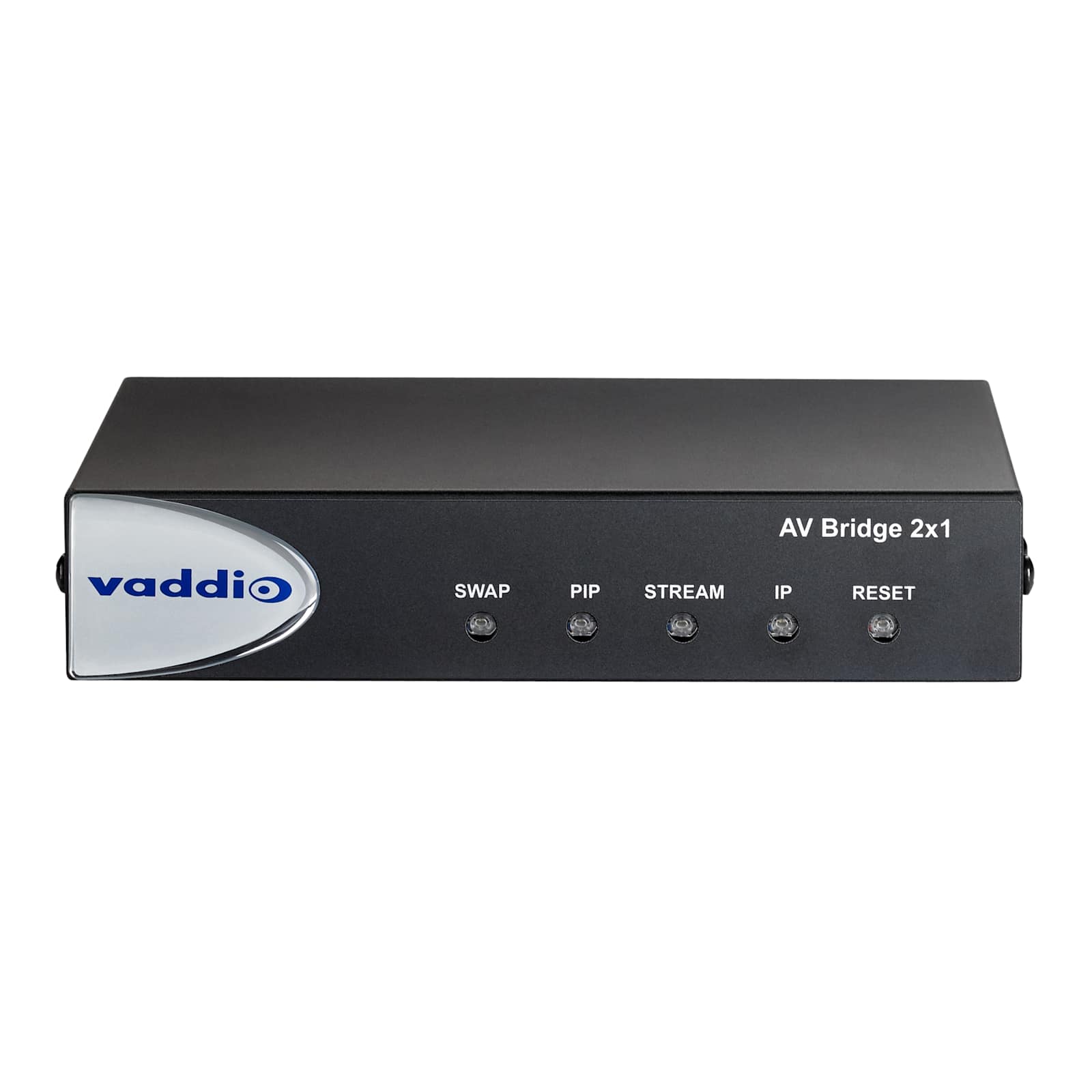

AV Bridge 2x1
999-8250-000$2,951.10
AV Bridge MATRIX PRO
999-8230-000$5,975.10
AV Bridge Mini Audio/Video Encoder
999-8240-000$2,191.50

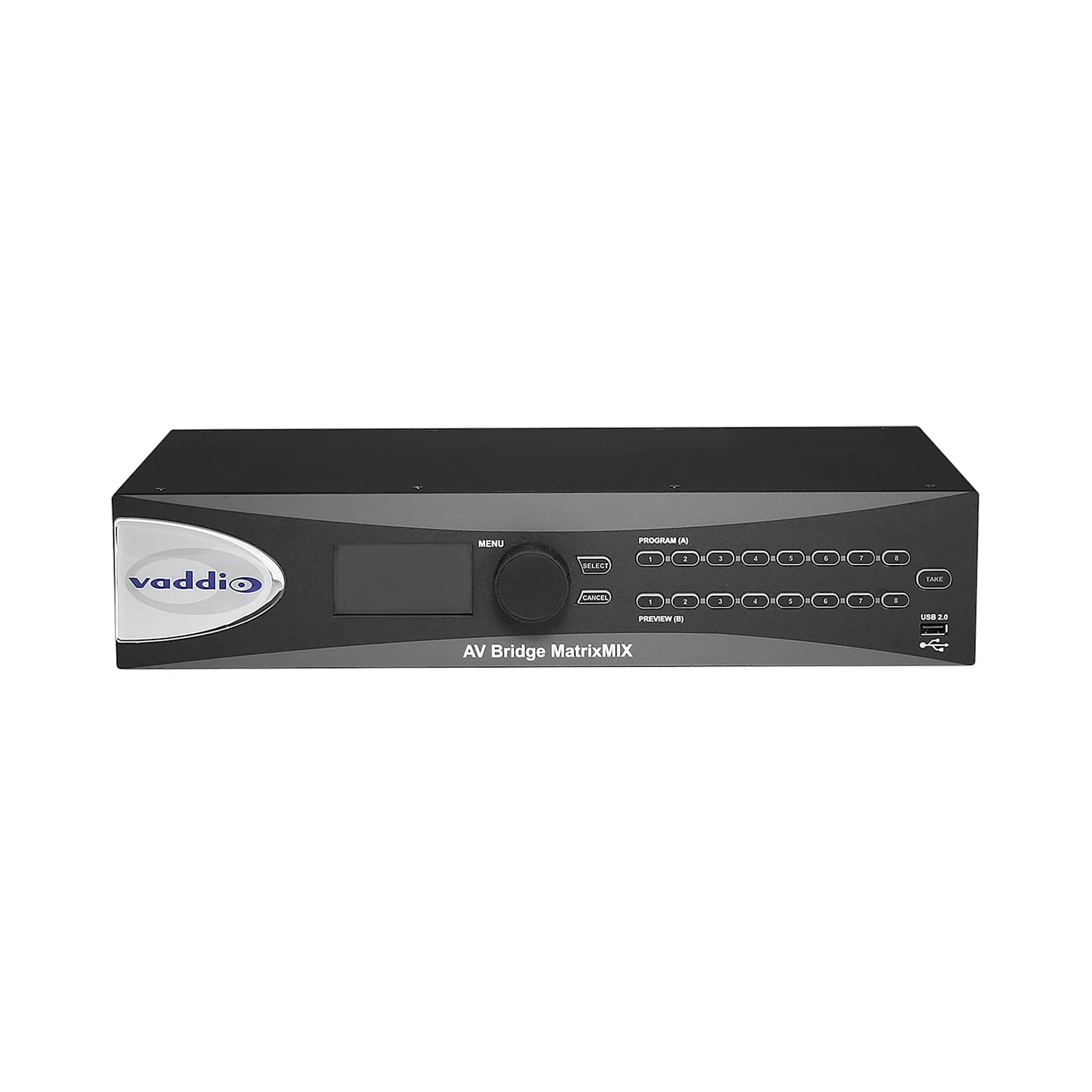

AV Bridge MatrixMIX
999-5660-000$8,644.50
RoboSHOT 30E HDBT PTZ Camera
999-99630-000$4,622.40
Questions about this part
Which Vaddio products is the 999-42300-000 compatible with?
It is compatible with all Vaddio products that utilize modern web-based user interfaces, excluding the Venture™ product line. Examples include RoboSHOT 30E HDBT PTZ cameras and various AV Bridge models.
What do I need to provide power for the Vaddio Device Controller?
The unit is powered via PoE (Power over Ethernet) through the network port, allowing for flexible placement without needing a dedicated local power outlet.
How does the auto-discovery feature work?
Once the controller is on the same subnet as your Vaddio hardware, you can use the scan button on the touch panel to automatically find and list connected devices.
What mounting options are available for this controller?
The unit includes a thin-profile tabletop mount for desktop use. For alternative installations, the Vaddio Device Controller Tilt Wall Mount is available as a compatible accessory.
What is the resolution of the touch screen display?
The 10-inch color touch screen supports a maximum resolution of 1280x800.
