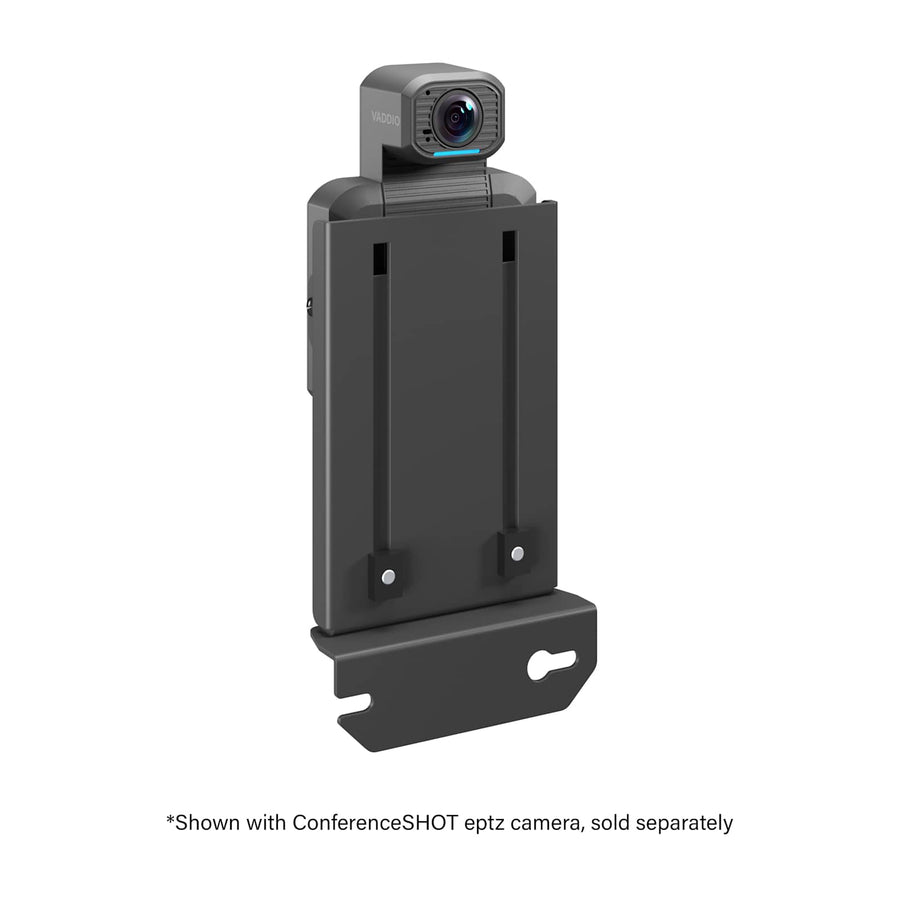

Above/Below ConferenceSHOT ePTZ Camera Mount for Large Displays
Camera shelf for Vaddio ConferenceSHOT ePTZ, supports large displays with a 21.36" max extension
The PAC800K provides a dedicated mounting solution for the Vaddio ConferenceSHOT ePTZ camera, positioned either above or below a large display. Designed for professional video conferencing environments, this shelf utilizes the 14 x 14" (P-series) Q-Latch system to provide secure support for the camera. It is compatible with all Chief carts and stands, swing arm mounts, and ceiling mounts that utilize the 14 x 14" (P-series) Q-Latch system. The mount offers a maximum extension of 21.36" from the center of the display, which is useful when the camera must be offset from the screen for optimal sightlines. This accessory is intended for use with typical display sizes ranging from 50" to 75" and works with displays featuring a height between 28" and 42.5". The shelf has a total weight capacity of 10 lbs (4.5 kg).
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Maximum Extension | 21.36" from center of display |
| Shipping Dimensions | 11" x 8" x 6"(279.4 x 203.2 x 152.4 mm) |
| Shipping Weight | 3.02 lbs (1.4 kg) |
| Typical Screen Size | Large |
| Weight Capacity | 10 lbs (4.5 kg) |
| Width | N/A |
| Accessory Type | Camera Shelves |
| Application | ConferenceSHOT ePTZ Above, Below |
| Color | Black |
| TAA Compliant | Yes |
| UPC | 841872176109 |
Resources
Verified fitment
Questions about this part
Will the PAC800K fit my Vaddio ConferenceSHOT ePTZ camera?
Yes, the PAC800K is specifically designed to support the Vaddio ConferenceSHOT ePTZ camera in either an above or below the display configuration.
What is the maximum distance the camera can extend from the display?
This camera shelf provides a maximum extension of 21.36" measured from the center of the display.
What type of mounting system is required for this shelf?
The PAC800K requires a 14 x 14" (P-series) Q-Latch system. It is compatible with Chief carts, stands, ceiling mounts, and swing arms using this specific system.
What display sizes and heights is this mount compatible with?
This mount is intended for typical screen sizes between 50" and 75" and is suitable for displays with a height range of 28" to 42.5".
What is the maximum weight the PAC800K can support?
The shelf is rated for a weight capacity of up to 10 lbs (4.5 kg) for the mounted camera.
