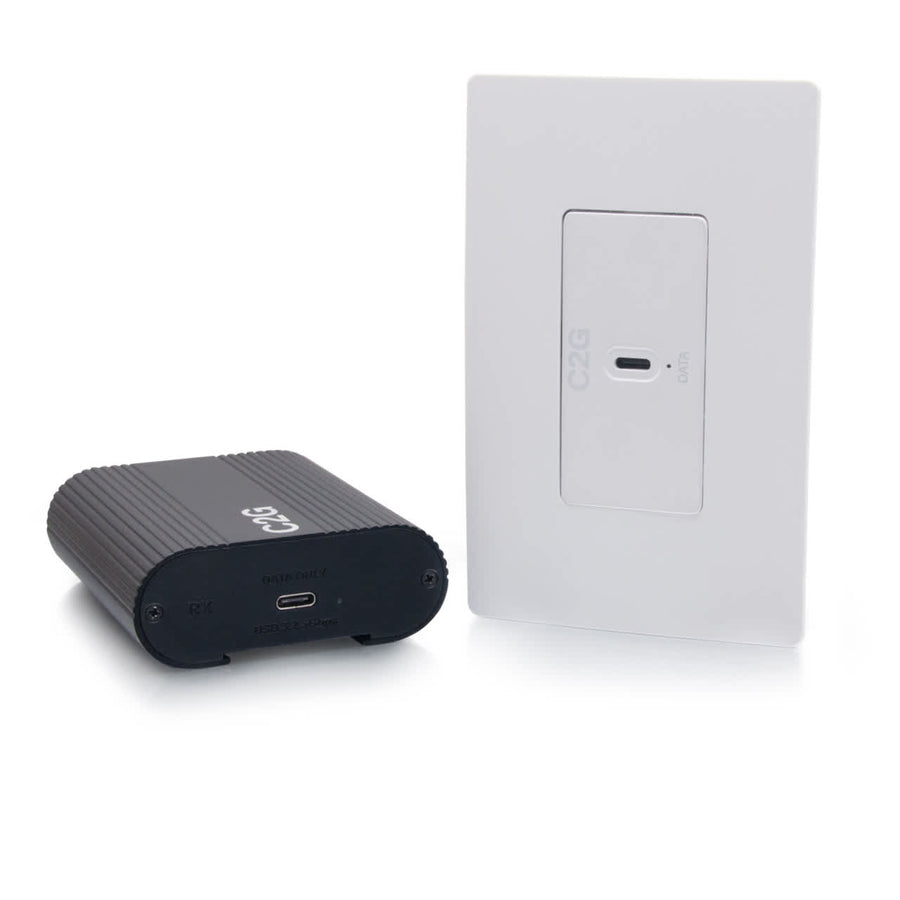

Superbooster® 1-Port USB over Cat6a Wall Plate to Box Extender Kit - USB 3.2 Gen1 (5Gbps)
USB 3.2 Gen1 extender kit for signal extension up to 328 ft (100 m) over Cat6a F/FTP cable
The C2G54267 Superbooster® 1-Port USB over Cat6a Wall Plate to Box Extender Kit provides a reliable method for transmitting USB 3.2 Gen1 signals over long distances. This kit is designed to allow high-bandwidth USB devices—such as PTZ cameras, interactive whiteboards, and printers—to be positioned far from the host computer. It supports data transfer rates of up to 5Gbps and is backwards compatible with USB 2.0 and USB 1.1. The system uses bidirectional 24V PoC (Power over Cable), which allows the installer to supply power from either the transmitter or the receiver. For installation, the kit is designed for use with Cat6a F/FTP network cable and supports a maximum distance of 328 ft (100 m). This TAA-compliant, plug-and-play solution is ideal for demanding environments like command centers, medical facilities, auditoriums, and classrooms where reliable USB connectivity is required.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Amps | 1 Amp |
| Cable Length | 2.87 in (7.3 cm) |
| Depth | 3.27 in (8.3 cm) |
| Height | Transmitter: 1.5" (3.85cm), Receiver: 1.1" (2.8cm) |
| Length | Transmitter: 4.2" (10.7cm), Receiver: 3.27" (8.3cm) |
| Max Distance Support | 328 ft (100 m) |
| Product Weight | 0.66 lbs (0.3 kg) |
| Shipping Weight | 1.08 lbs (0.5 kg) |
All other specifications 14
| Width | Transmitter: 1.7" (4.4cm), Receiver: 2.87" (7.3cm) |
| Color | White/Black |
| Connector 1 | (1) RJ-45 Female(1) USB-C Female |
| Connector 2 | (1) RJ-45 Female(1) USB-C Female |
| Federal Ops Country of Origin | Taiwan |
| Product Type | Active DeviceExtenderKit |
| Signal Type | USB 3.2 Gen 1 |
| Special Features | Data Transfer Protocol: Isochronous, Control, Interrupt, and BulkNumber of Tiers Occupied: 1 |
| TAA Compliant | Yes |
| Technology Specifications | USB 1.2USB 2.0USB 3.2 |
| UPC | 757120542674 |
| Certifications | CEFCCProp 65REACHRoHSTAAUKCA |
| Data Transfer Rate | 5 GBPS |
| Warranty | 5 years |
Resources
You'll need these with it
15ft (4.6m) Cat6a Snagless Unshielded UTP Ethernet Network Patch Cable - Blue
CG00701$25.99
6.5ft (2m) USB-C® Male to USB-C Male Cable (20V 3A) - USB 3.2 Gen 1 (5Gbps)
C2G28883$42.99
6ft (1.8m) USB 3.0 (USB 3.2 Gen 1 (5Gbps) USB-C to USB-B Cable M/M - Black
CG28866$29.99
3ft (0.9m) USB-C to C 3.2 Gen 1 (5Gbps) Male to Female Extension Cable
CG28656$28.99
10ft (3m) Cat6a Snagless Shielded STP Ethernet Network Patch Cable - Black
CG00715$25.99
10ft (3m) Cat6a Snagless Unshielded UTP Ethernet Network Patch Cable - Blue
CG00698$15.99
3ft (0.9m) Cat6a Snagless Unshielded UTP Ethernet Network Patch Cable - Black
CG00725$11.99
1.5ft (0.46m) USB-C® Male to USB-A Male Cable - USB 3.2 Gen 1 (5Gbps)
C2G28876$16.99
3.3 ft (1m) USB-C 3.2 (Gen 2) Male to Male Cable (20V 5A)
CG28848$40.99
7ft (2.1m) Cat6a Snagless Unshielded UTP Ethernet Network Patch Cable - Black
CG00729$14.99
Questions about this part
Will the C2G54267 work with my PTZ camera?
Yes, the Superbooster is tested and proven to support leading PTZ cameras at 1080p or 4K resolutions depending on the specific camera model.
What kind of cable is required for this extender kit?
This kit requires Cat6a F/FTP network cable for data transmission and supports a maximum distance of 328 ft (100 m).
Does this kit support video signals through DisplayPort Alt Mode?
No, this extender supports data transmission only and does not support DisplayPort Alt Mode video.
How is the device powered?
The kit supports bidirectional 24V PoC, meaning you can supply power from either the transmitter or the receiver side.
What is the maximum data transfer rate for this unit?
The C2G54267 supports USB 3.2 Gen1 signal transmission with data transfer rates up to 5Gbps.
