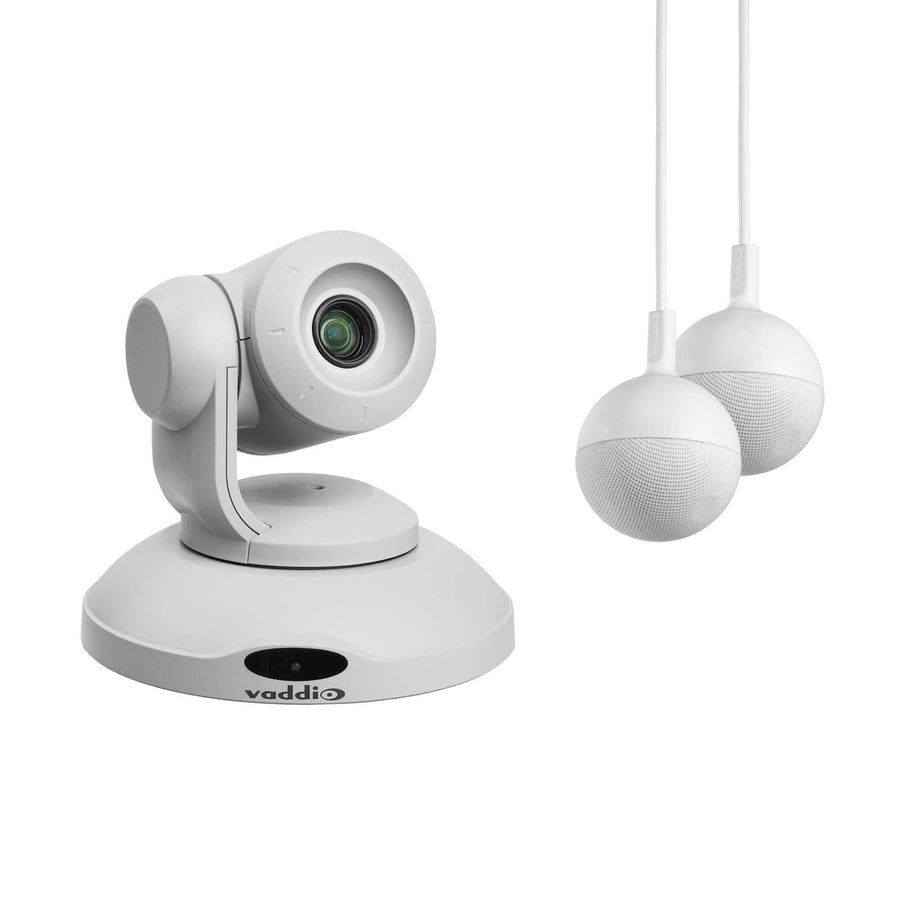

ConferenceSHOT AV HD Conference Room System
HD PTZ camera and audio mixer bundle with two CeilingMIC microphones, 10x zoom, and PoE+ power for small to medium rooms
The Vaddio 999-99950-700W ConferenceSHOT AV is a comprehensive conference room system that integrates a high-definition PTZ camera and an audio conferencing mixer into a single USB 3.0 device. This bundle is specifically configured for small to medium-sized rooms and includes two CeilingMIC microphones in white, two silicone split strain relief boots, a thin profile white wall mount, and a PoE+ midspan power injector with an AC cord set. This solution enables easy, plug-and-play functionality with major UCC soft clients including Microsoft Teams, Zoom, WebEx, and Google Meet. The 2.14 Megapixel camera features a 10x zoom and a 1-2_8 Exमर CMOS sensor, providing a field of view ranging from 74° wide to 7.6° tele. It is UVC compliant, meaning no external drivers are required for PC installation. For remote management, the system offers a built-in browser-based user interface, allowing for IP-live preview, setup, and monitoring from PCs, Macs, or mobile devices including Android and iOS. Control is highly versatile, supporting IR remote, joystick, Telnet, touch screens, or the included Vaddio IR Remote Commander. The camera provides a pan range of ±162° and a tilt range of +90° to -30°, driven by stepper motors, with speeds between 0.35°/sec and 90°/sec. This TAA-compliant system is an ideal solution for turning BYOD environments into professional-grade UC spaces.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 6.5 in (16.5 cm) |
| Height | 7 in (17.8 cm) |
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Product Weight | 3.6 lbs (1.6 kg) |
| Shipping Dimensions | 28" x 13" x 20" (711.2 x 330.2 x 508 mm) |
| Shipping Weight | 20 lbs (9.1 kg) |
| Width | 7.06 in (17.9 cm) |
| 3rd Party Control | Telnet |
All other specifications 39
| Audio Type | MicrophoneMixers and IO Devices |
| Browser-based User Interface for Remote Control | Built-in |
| Camera Type | PTZ |
| Color | White |
| Compatible With | Vaddio |
| Control Method | IR RemoteJoystickTelnetTouch ScreenWeb UI |
| Estimated Room Size | Medium RoomSmall Room |
| Field of View | 74° Wide End to 7.6° Tele End |
| Field of View Wide | Greater than 70 |
| Focus System | AutoManual |
| Gain | AutoManual |
| Image Sensor Type | 1-2_8 Exmor CMOS |
| Input Ports | EasyMICNetworkUSB 3.0 |
| Invertible | Yes |
| Manufacturer | Vaddio |
| Max Resolution | 1080p 60 |
| Microphones | Two Ceiling Microphones |
| Minimum Illumination | 0.4 Lux (F1.6) |
| OneLINK Compatibility | No |
| Output Ports | AudioIP StreamingNetworkUSB 3.0 Type B |
| Pan and Tilt Range | Tilt: +90· to -30°Pan: ±162° |
| Pan and Tilt Speed | 0.35°/sec - 90°/sec |
| Pixels | 2.14 Megapixel |
| Power Cord | US Cord |
| Power Supply | PoE+ |
| Power Type | PoE+ |
| Preset Positions | 16 Custom Home Position |
| PTZ Motors | Stepper Motors |
| Quick-Connect Compatibility | No |
| Signal Type | AudioIP StreamingUSB 2.0USB 3.0 |
| Solution Type | Conference Room System |
| Special Features | Vaddio Special Offer |
| TAA Compliant | YesYes |
| Tri-Sync Motion | No |
| UPC | 840077505431 |
| White Balance | AutoManualOne Push |
| Zoom | 10x |
| Certifications | CEFCCTAAUL Listed |
| Warranty | 3 years |
Resources
You'll need these with it
USB 3.2 Gen 2 Type B to Type A Active Optical Cable Plenum from Vaddio
440-1015-015$632.70
HDMI Audio Embedder Kit
999-9995-004$215.10
Twin Mono AMP
999-9995-330$239.40
Vaddio Ceiling Speakers
999-85600-000$450.90
CeilingMIC Microphone
999-85100-000$641.70
ConferenceSHOT AV Table Mount
999-89995-000$184.50
TableMIC Microphone
999-85000-000$570.60
Suspended Ceiling Mount for Vaddio Cameras
535-2000-206$141.30
0.5ft (0.15m) USB-C® Male to USB-A Male Cable - USB 3.2 Gen 1 (5Gbps)
C2G28874$12.99
Vaddio Device Controller
999-42300-000$855.00
6ft (1.8m) Core Series High Speed HDMI® Cable with Ethernet
CG56783$15.99
8 PoE+ | 2 RJ45 | 2 SFP Rear-Facing Ports - 1Gb L2/L3 Managed Switch, US Power Cord
SW-505-8P-R$657.00
Verified fitment
Questions about this part
What is included in the ConferenceSHOT AV 999-99950-700W bundle?
This bundle includes the ConferenceSHOT AV camera in white, two CeilingMIC microphones, two silicone split strain relief boots, a thin profile white wall mount with hardware, a PoE+ midspan power injector, and a Vaddio IR Remote Commander.
Does the Vaddio 999-99950-700W require external drivers for setup?
No, this system is UVC compliant, which allows for easy plug-and-play functionality with major UCC soft clients like Microsoft Teams and Zoom without installing external drivers.
How can I control the PTZ functions of the camera?
You can manage the camera using the included IR Remote Commander, a joystick, via Telnet, through a touch screen, or using the built-in web-based user interface.
What kind of power does the 999-99950-700W use?
The system is powered via PoE+ and includes a PoE+ midspan power injector with an AC cord set to provide power over the network connection.
Can I add external speakers to this system?
Yes, the integrated audio conferencing mixer allows you to connect an external speaker directly to the camera to complete your audio setup.
