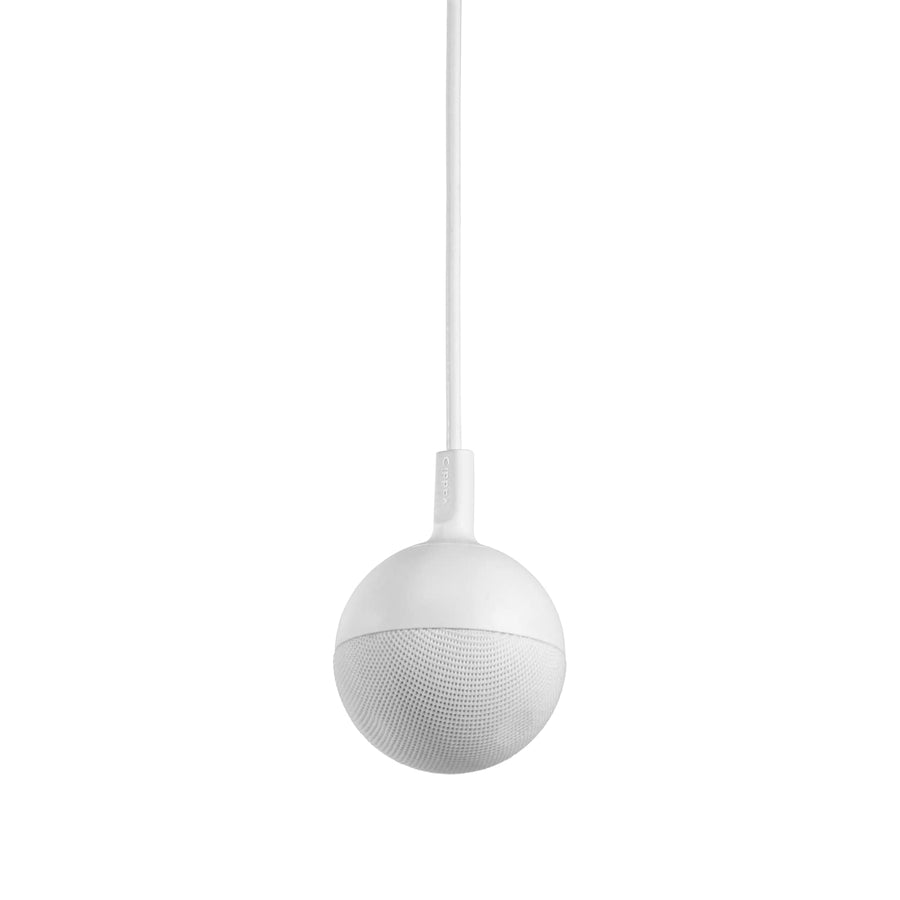

CeilingMIC Microphone
White overhead microphone featuring 360-degree pickup, integrated DSP, and AEC for clean, clutter-free conference environments
The Vaddio 999-85100-000 CeilingMIC provides a professional, clutter-free audio solution by moving microphone placement from the table to the ceiling. Designed with a sleek white acoustic fabric wrap, this unit is ideal for drop tile ceilings and open-ceiling environments. Each pendant housing contains three unidirectional cardioid microphone elements in an array head, providing full 360-degree pickup coverage for average-sized meeting tables. To ensure crystal clear conversation, the integrated Digital Signal Processing (DSP) includes equalization, filtering, and automatic gain control (AGC). This model supports both reference and non-referenced Acoustic Echo Cancellation (AEC) when paired with a companion product like the Vaddio AV Bridge MATRIX PRO or the EasyUSB Mixer/Amp. Installation is streamlined via a single Cat-5 cable that carries power, control, and audio from the interface box, supporting lengths up to 100 feet.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Product Weight | 6-6 lbs (2.72-2.72 kg) |
| Shipping Dimensions | 26" x 7" x 7" (660.4 x 177.8 x 177.8 mm) |
| Shipping Weight | 1.71 lbs (0.8 kg) |
| Audio Type | Microphone |
| Bridged Signal | Audio Only |
| Color | White |
| Compatible With | VaddioVaddio |
All other specifications 7
| Manufacturer | Vaddio |
| Signal Type | Audio |
| Special Features | AEC |
| TAA Compliant | Yes |
| UPC | 840077501822 |
| Certifications | CEFCCTAA |
| Warranty | 3 years |
Resources
You'll need these with it
8 PoE+ | 2 RJ45 | 2 SFP Rear-Facing Ports - 1Gb L2/L3 Managed Switch, US Power Cord
SW-505-8P-R$657.00
30 Inch Plastic Enclosure with Trim Ring and Hinged Door
ENP3050NA$114.99
0.5ft (0.15m) USB-C® Male to USB-A Male Cable - USB 3.2 Gen 1 (5Gbps)
C2G28874$12.99
6ft (1.8m) Core Series High Speed HDMI® Cable with Ethernet
CG56783$15.99
TableMIC Microphone
999-85000-000$570.60
AV Bridge MATRIX PRO
999-8230-000$5,975.10
EasyUSB MicPOD I/O
999-8535-000$801.90
EasyUSB Mixer/Amp
999-8530-000$1,071.90
PD Slim High Density Vertical Power Strip, 8 Outlet, 15A
PD-815SC-NS$188.10
1 RU Mounting Rackshelf
UTR1$58.50
HuddleSHOT All-in-One Conferencing Camera
999-50707-000Discontinued
Questions about this part
Will the Vaddio 999-85100-000 fit my ceiling type?
Yes, this CeilingMIC is designed for both drop tile ceilings and open-ceiling environments, utilizing a lightweight ceiling box for easier installation.
What equipment do I need to complete the installation?
The CeilingMIC requires a Vaddio product with an EasyMic port, such as the Vaddio AV Bridge MATRIX PRO or the EasyUSB Mixer/Amp, to provide an AEC reference.
How long can the cable run be for this microphone?
The system supports a Cat-5 cable run of up to 100 feet between the CeilingMIC interface box and the EasyMIC ports.
How do I adjust the height of the microphone pendant?
The pendant includes an adjustable 36-inch (0.9m) drop cable; when used with a standard RJ45 jack connection, the total pendant length can be extended to 15 ft (5 meters).
Can I use this with a TableMIC?
While this is a ceiling unit, it is part of the Vaddio audio ecosystem alongside the 999-85000-000 TableMIC for diverse deployment needs.
