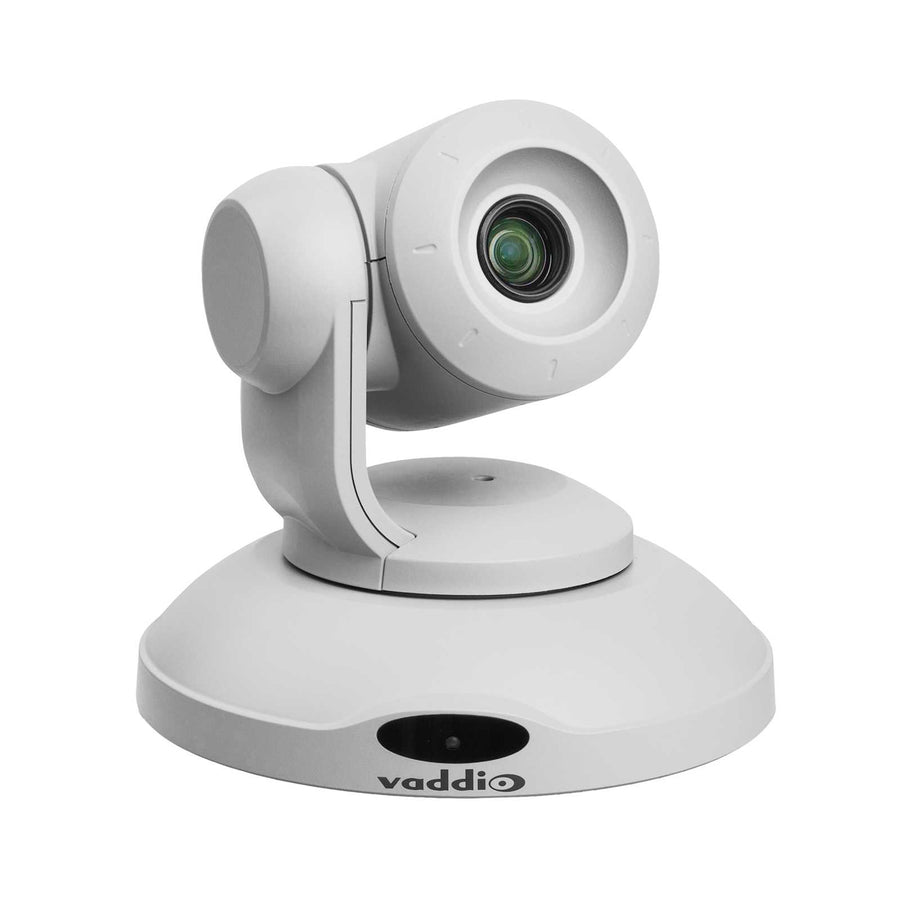

ConferenceSHOT AV HD Conference Room System
HD PTZ camera and audio conferencing mixer for small to medium rooms, featuring 10x zoom and PoE+ power support
The Vaddio 999-9995-000W ConferenceSHOT AV HD Conference Room System integrates a 10x zoom HD PTZ camera with an audio conferencing mixer into a single USB 3.0 device. Designed for small to medium-sized videoconferencing rooms, this system simplifies deployment by allowing installers to connect up to two microphones and an external speaker directly to the camera. It is UVC compliant, enabling plug-and-play functionality with major UCC soft clients such as Microsoft Teams, Google Meet, Zoom, and WebEx without requiring external drivers. This TAA compliant solution offers enterprise-class management via a built-in browser-based user interface, supporting remote monitoring and control from PCs, Macs, or mobile devices including iPhone, iPad, and Android. The camera features a 2.14 Megapixel 1-2_8 Exमर CMOS sensor with auto and manual focus and gain settings. Control is versatile, supporting IR remote, joystick, Telnet, touch screen, and web UI. For customized setups, it is compatible with third-party equipment or can operate as a standalone BYOD solution.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 5.5 in (14 cm) |
| Height | 6.3 in (16 cm) |
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Product Weight | 3 lbs (1.4 kg) |
| Shipping Dimensions | 14" x 14" x 18" (355.6 x 355.6 x 457.2 mm) |
| Shipping Weight | 12 lbs (5.4 kg) |
| Width | 6.1 in (15.5 cm) |
| 3rd Party Control | Telnet |
All other specifications 36
| Browser-based User Interface for Remote Control | Built-in |
| Camera Type | PTZ |
| Color | White |
| Compatible With | Vaddio |
| Control Method | IR RemoteJoystickTelnetTouch ScreenWeb UI |
| Estimated Room Size | Medium RoomSmall Room |
| Field of View | 74° Wide End to 7.6° Tele End |
| Field of View Wide | Greater than 70 |
| Focus System | AutoManual |
| Gain | AutoManual |
| Image Sensor Type | 1-2_8 Exmor CMOS |
| Input Ports | EasyMICNetworkUSB 3.0 |
| Invertible | Yes |
| Manufacturer | Vaddio |
| Max Resolution | 1080p 60 |
| Minimum Illumination | 0.4 Lux (F1.6) |
| OneLINK Compatibility | No |
| Output Ports | AudioIP StreamingNetworkUSB 3.0 Type B |
| Pan and Tilt Range | Tilt: +90· to -30°Pan: ±162° |
| Pan and Tilt Speed | 0.35°/sec - 90°/sec |
| Pixels | 2.14 Megapixel |
| Power Cord | US Cord |
| Power Supply | PoE+ |
| Power Type | PoE+ |
| Preset Positions | 16 Custom Home Position |
| PTZ Motors | Stepper Motors |
| Quick-Connect Compatibility | No |
| Signal Type | AudioIP StreamingUSB 2.0USB 3.0 |
| Solution Type | Camera OnlyConference Room System |
| TAA Compliant | Yes |
| Tri-Sync Motion | No |
| UPC | 840077504861 |
| White Balance | AutoManualOne Push |
| Zoom | 10x |
| Certifications | CECertified for Barco ClickShare ConferenceFCCTAAUL Listed |
| Warranty | 3 years |
Resources
You'll need these with it
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
Suspended Ceiling Mount for Vaddio Cameras
535-2000-206$141.30
Vaddio Device Controller
999-42300-000$855.00
Vaddio Ceiling Speakers
999-85600-000$450.90
CeilingMIC Microphone
999-85100-000$641.70
TableMIC Microphone
999-85000-000$570.60
ConferenceSHOT AV Table Mount
999-89995-000$184.50
9.8ft (3m) USB 3.0 A Male to B Male Cable
CG54175$20.99
USB 3.2 Gen 2 Type B to Type A Active Optical Cable Plenum from Vaddio
440-1015-015$632.70
Twin Mono AMP
999-9995-330$239.40
Single Port 2.5 Gigabit PoE/PoE+ Injector 30W with US Power Cord
PI-25$73.50
Vaddio IR Remote Commander with audio controls
998-2102-000Discontinued
Verified fitment
Questions about this part
What is included in the ConferenceSHOT AV 999-9995-000W package?
This package includes the white ConferenceSHOT AV camera, a PoE+ Midspan Power Injector with US AC cord set, a thin profile white wall mount with hardware, a Vaddio IR Remote Commander, a 6 ft USB 3.0 A-to-B cable, a 10 ft black Cat-5 cable, and a 4-position phoenix-style connector.
Which microphones and speakers can I use with this system?
The system allows for the direct connection of up to two microphones and an external speaker. It is compatible with Vaddio audio components like the CeilingMIC, TableMIC, and Vaddio ConferenceSHOT AV Speakers.
How do I control the camera pan, tilt, and zoom?
The 999-9995-000W supports multiple control methods including an IR Remote, joystick, Telnet, touch screen, or the built-in Web UI for remote management.
Can I mount this camera on a ceiling or a table?
Yes. The system is compatible with the Vaddio ConferenceSHOT AV Table Mount and various ceiling mount options, such as the Vaddio Suspended Ceiling Mount (535-2000-206).
What is the required power for the ConferenceSHOT AV?
The unit is powered via PoE+ (Power over Ethernet) for simplified cabling in professional installations.
