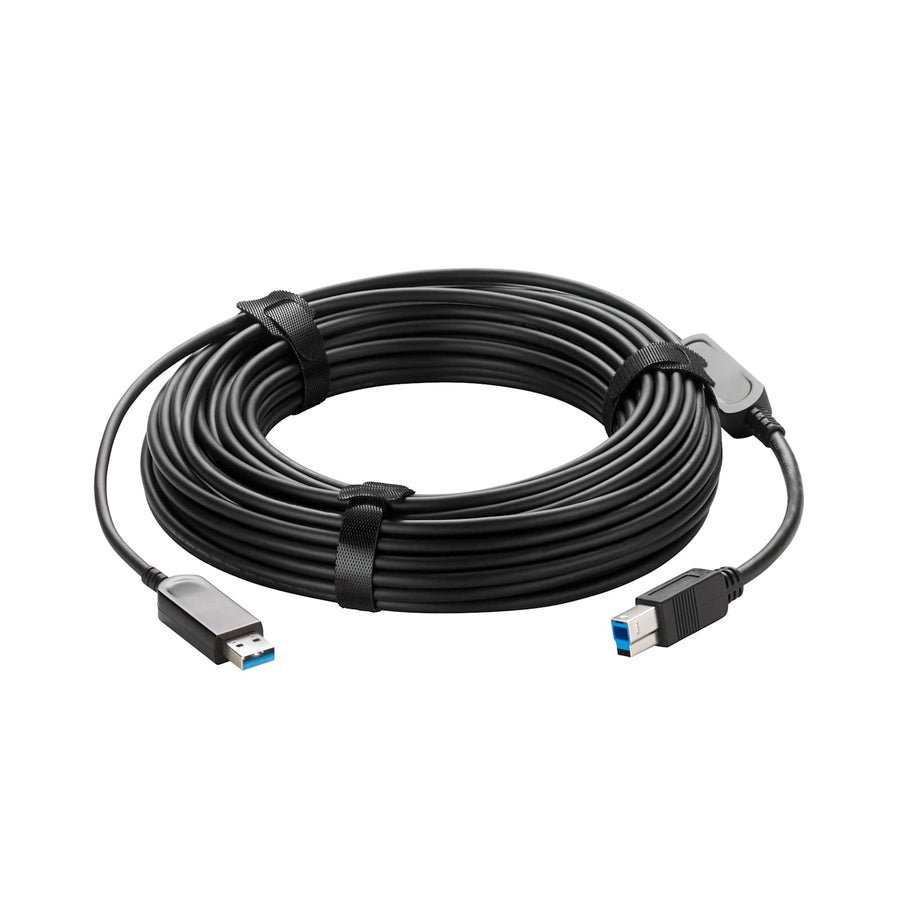

USB 3.2 Gen 2 Type B to Type A Active Optical Cable Plenum from Vaddio
49.21 ft (15 m) USB 3.2 Gen 2 Type B to Type A active optical cable, plenum rated for 10 Gbps SuperSpeed data transfer
The Vaddio 440-1015-015 is a shielded active optical fiber cable designed to extend the full bandwidth of USB 3.2 Gen 2 interfaces. This 49.21 ft (15 m) cable is rated for SuperSpeed, supporting data rates up to 10 Gbps. Because it is port-powered, it requires no external power source or repeater hubs, allowing for easier installation through conduits. The composite design makes the cable resistant to EMI/RFI interference and it features a plenum-rated (CMP) jacket. This is a plug-and-play solution that requires no drivers, making it an efficient choice for Bring Your Own Device (BYOD) environments. The cable is backwards compatible with USB 2.0, 3.0, and 3.1 signals. It is specifically engineered for high-quality video and audio signal transport, such as connecting Vaddio IntelliSHOT, ConferenceSHOT, or RoboSHOT cameras. It is also compatible with Vaddio AV Bridge Mini, AV Bridge 2x1, and AV Bridge MatrixMIX, as well as various Sony, Panasonic, Polycom, Cisco, and other USB 3.0 conferencing devices.
No documents are published for this part. Ask us for the paperwork and we will get it from the manufacturer.Key features
Specifications
Main specifications 8
| Cable Length | 49.21 ft (15 m) |
| Shipping Dimensions | 10" x 8" x 7" (254 x 203.2 x 177.8 mm) |
| Shipping Weight | 1.26 lbs (0.6 kg) |
| Cable Type | USB |
| Color | Black |
| Compatible With | CiscoOtherPanasonicPolycomSonyVaddio |
| Connector 1 | USB-A Male |
| Connector 2 | USB-B Male |
All other specifications 8
| Extension Type | Active USBUSB 2.0USB 3.0 |
| Jacket Rating | Plenum Rated |
| Manufacturer | Vaddio |
| Signal Type | USB 2.0USB 3.0 |
| TAA Compliant | No |
| UPC | 840077508036 |
| Certifications | CEFCC |
| Warranty | 3 years |
Questions about this part
Will this cable work with my Vaddio RoboSHOT or IntelliSHOT camera?
Yes, this cable is compatible with Vaddio IntelliSHOT, ConferenceSHOT, and RoboSHOT cameras, as well as Vaddio AV Bridge Mini, AV Bridge 2x1, and AV Bridge MatrixMIX devices.
Does this USB cable provide power to my connected devices?
This cable is intended for transporting high-quality video and audio signals; it does not carry enough power to charge most USB endpoints.
What is the maximum distance for this active optical USB cable?
This specific SKU provides a cable length of 49.21 ft (15 m) using active optical technology to maintain SuperSpeed performance.
Can I use this cable in a plenum-rated installation?
Yes, the 440-1015-015 is plenum rated and features a unique composite design that is resistant to EMI/RFI interference.
Is this cable compatible with older USB standards?
The 440-1015-015 is backward compatible with signals less than USB 3.0, including USB 2.0 and USB 3.1.
