Single Port 2.5 Gigabit PoE/PoE+ Injector 30W with US Power Cord
Single port 2.5 Gigabit PoE+ injector delivering up to 30W of power to PoE enabled devices

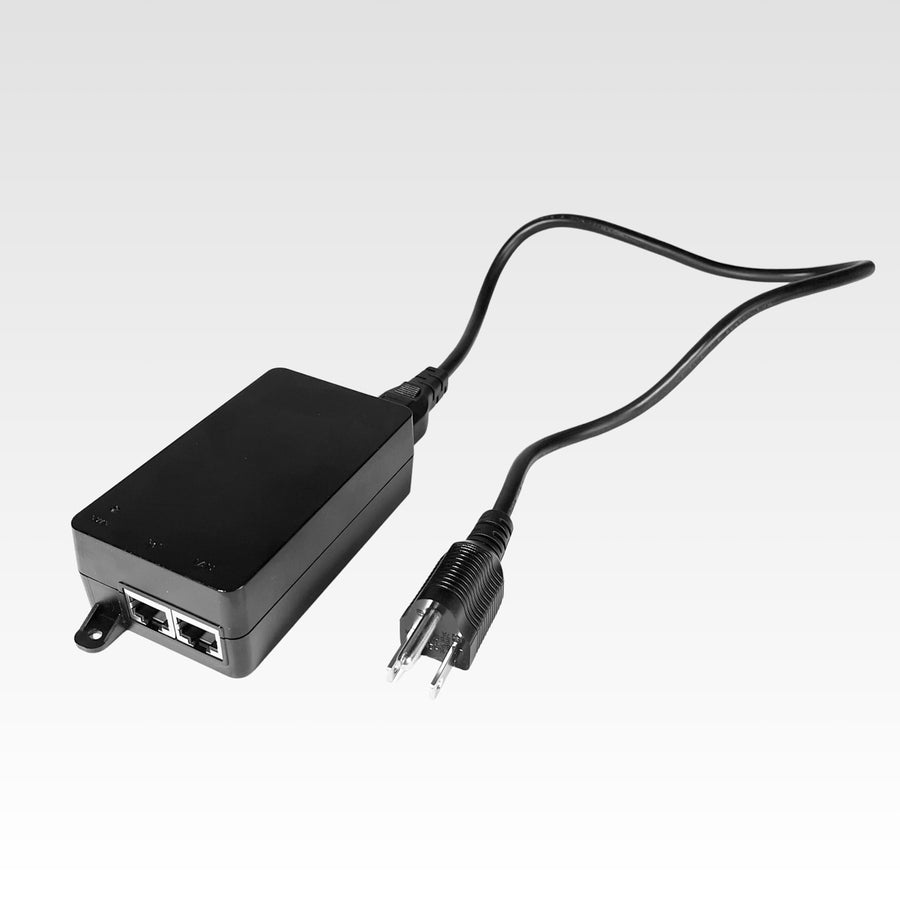

The Luxul PI-25 is a single port PoE+ (Power Over Ethernet) injector designed to deliver both data and electrical power to PoE enabled devices through standard Ethernet cabling. By utilizing the power provided by this injector, installers can place devices like wireless access points in locations far from traditional power outlets, which increases installation flexibility and reduces labor costs. This injector is IEEE 802.3at compliant and supports 2.5 Gigabit speeds (10/100/1000). It features a built-in power supply and includes a US power cord for immediate setup. When using standard Ethernet cable, PoE enabled devices can be located up to 328 feet (100 meters) away from the PI-25 injector.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Height | 1.31 in (3.3 cm) |
| Length | 3.94 in (10 cm) |
| Product Weight | 0.34 lbs (0.2 kg) |
| Width | 2.3 in (5.8 cm) |
| Power Cord | US Cord |
| Power Type | PoE |
| TAA Compliant | No |
| UPC | 655003923803 |
| Certifications | CB ReportCECE-EMCCE-LVDFCCICRoHSUKCA |
Resources
You'll need these with it
Questions about this part
How far can I run the cable to my PoE device?
PoE enabled devices can be placed up to 328 feet (100 meters) away from the PI-25 injector using standard Ethernet cable.
What is the maximum power output of the PI-25?
The PI-25 is an IEEE 802.3at compliant injector that delivers up to 30 Watts of power.
Is the US power cord included with this injector?
Yes, this PI-25 kit includes a US power cord for the integrated power supply.
What other hardware do I need for installation?
You will need your own Ethernet cable to connect the injector to your device.
Can I use this with a Luxul AP-3064?
The PI-25 is listed as compatible with the Luxul AP-3064 Wi-Fi 6 AX3600 4x4 Multi-Gig Access Point (US).
