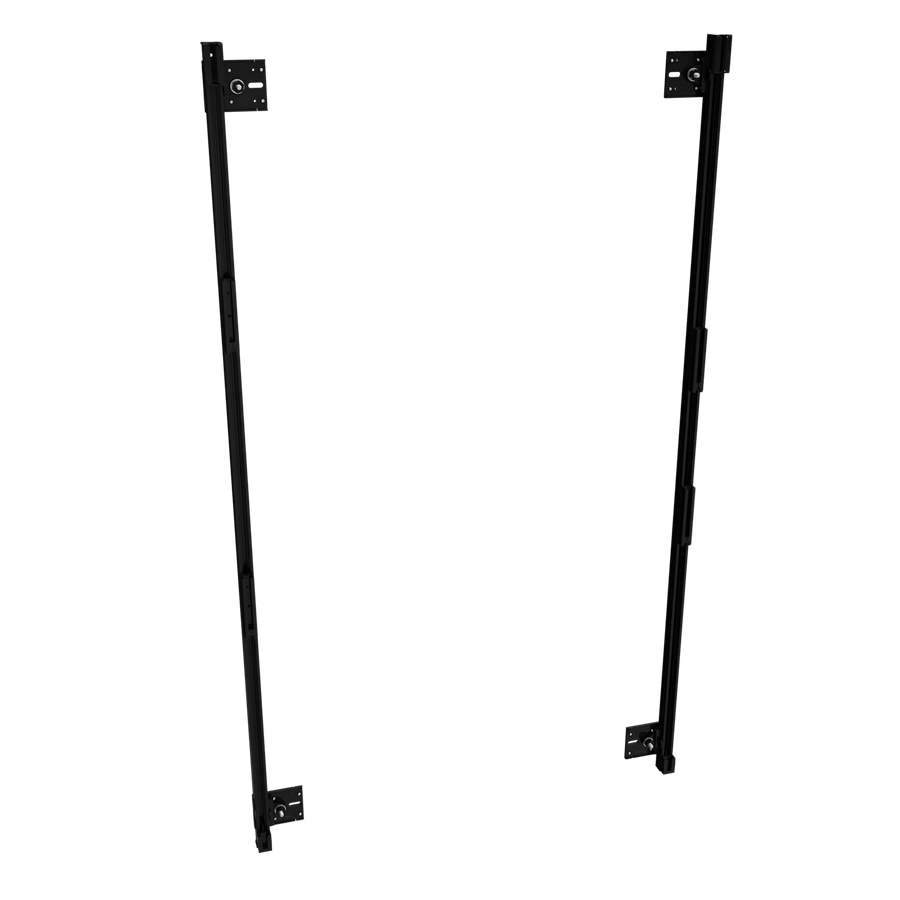

Chief DVM0540U3 TiLED® dvLED Universal 540mm, 3 High Starter
Starter mount for three 540mm-tall interlocking dvLED panels, featuring 3-axis adjustability for precision alignment
The Chief DVM0540U3 is a TiLED® dvLED Universal Starter mount designed to establish the base for modular video wall installations. This 3-high starter mount is specifically sized for 540mm-tall interlocking dvLED panels and accommodates three panels per set. Utilizing patent-pending floating button-capture technology, the DVM0540U3 provides a universal mounting solution compatible with a wide range of interlocking dvLED panels from major manufacturers. The system offers full X-Y-Z axis adjustability to compensate for wall irregularities, ensuring precise pixel alignment. The Z-axis provides double-depth adjustment through both macro and micro-adjustments, while the Y-axis allows for independent adjustment at each panel edge to maintain a flat and level base. This allows installers to achieve a flawlessly flat video wall even with pixel pitches below 1 mm. This starter kit is TAA compliant and intended for installation on plywood-reinforced walls with a 250 lbs (113.4 kg) weight capacity.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Lateral Shift | 0.68 in (1.7 cm) |
| Manual Height Adjustment | 2 in (50.8 mm) |
| Minimum Depth | 2 in (5.1 cm) |
| Number of Panels | 3 |
| Size | 43" Class (960mm W x 540mm H) |
| Typical Screen Size | 540mm-tall dvLED Panels |
| Wall Stud Compatibility | Meant for plywood-reinforced walls |
| Weight Capacity | 250 lbs (113.4 kg) |
All other specifications 12
| Accessory Type | InstallationMounting Brackets |
| Adjustability | FixedHeight AdjustableLateral ShiftMicro-Adjustable |
| Adjustments | .625" |
| Application | Wall |
| Color | Black |
| Orientation | Landscape |
| Product Type | Starter |
| Solution Type | Universal |
| Special Features | LED Video WallModularMulti-DisplaySecurityStacked |
| TAA Compliant | Yes |
| UPC | 841872178745 |
| Certifications | TAA |
Resources
You'll need these with it
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
TiLED® dvLED Universal Installation Spacer Tool
DVA700$200.00
TiLED® dvLED Universal M12 Mounting Button Kit, 25 panels
DVAM12-25$380.00
TiLED® dvLED Universal Capture H-Block Kit, Pair
DVAHBKITComing soon
TiLED® dvLED Universal M6 Mounting Button Kit, 1 panel
DVAM6-1$15.20
TiLED® dvLED Universal M12 Mounting Button Kit, 1 panel
DVAM12-1$15.20
TiLED® dvLED Universal M8 Mounting Button Kit, 10 panels
DVAM8-10$152.00
TiLED® dvLED Universal M6 Mounting Button Kit, 25 panels
DVAM6-25$380.00
TiLED® dvLED Universal M6 Mounting Button Kit, 10 panels
DVAM6-10$152.00
TiLED® dvLED Universal M12 Mounting Button Kit, 10 panels
DVAM12-10$152.00
TiLED® dvLED Universal M8 Mounting Button Kit, 25 panels
DVAM8-25$380.00
TiLED® dvLED Universal M8 Mounting Button Kit, 1 panel
DVAM8-1$15.20
Verified fitment
Questions about this part
Will the DVM0540U3 fit my specific dvLED panels?
Yes, this mount is verified for use with Absen NX Series panels and VANGUARD LA Series models, including the LA43-1.2, and is compatible with 90% of interlocking dvLED panels from leading manufacturers.
What is the difference between a starter mount and an extender mount?
The DVM0540U3 is a starter mount that forms the base of your video wall; you use extender mounts to increase the height of the wall as needed.
What do I need to buy to complete my video wall installation?
In addition to these starter mounts, you will need compatible mounting button kits such as the DVAM12-1, DVAM10-10, or DVAM8-10 depending on your specific panel requirements.
How much weight can this starter mount support?
The DVM0540U3 has a weight capacity of 250 lbs (113.4 kg) for the mounting system.
What kind of wall preparation is required for this mount?
These mounts are specifically meant for installation on plywood-reinforced walls to ensure structural integrity.
