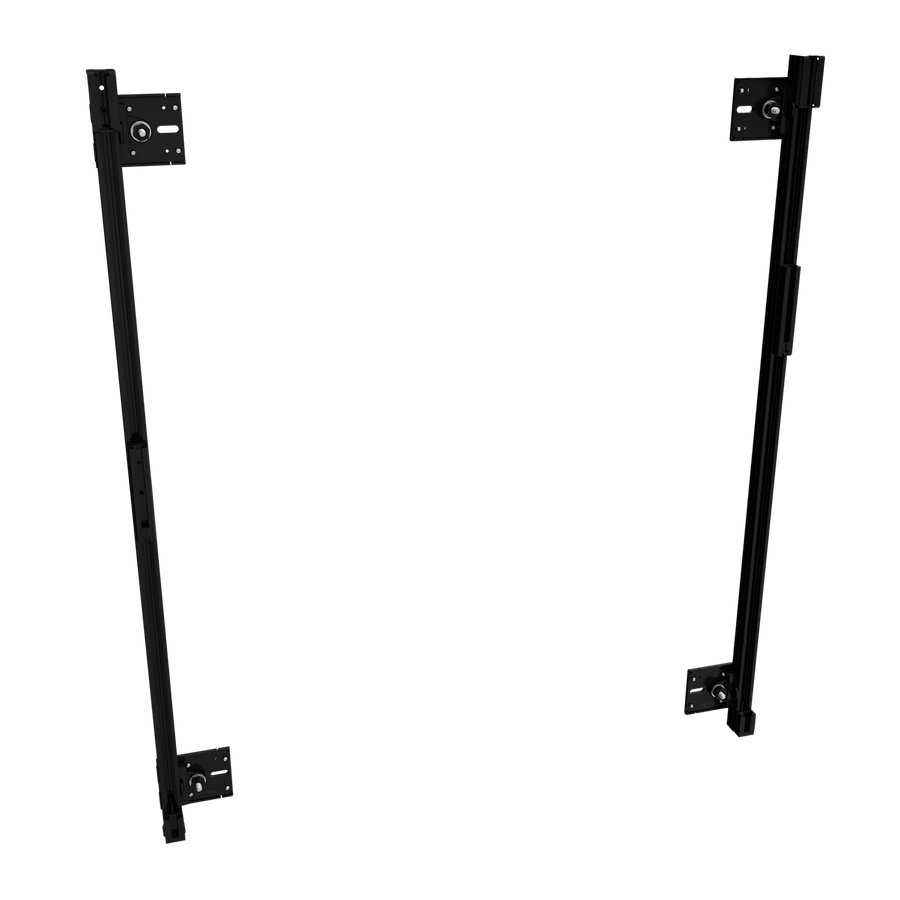

Chief DVM0540U2 TiLED® dvLED Universal 540mm, 2 High Starter
TiLED dvLED Universal Starter mount for 540mm-tall panels, supporting 2 panels with 3-axis adjustability
The Chief DVM0540U2 is a TiLED® dvLED Universal Starter mount designed for modular video wall installations using 540mm-tall panels. This starter unit forms the base of a video wall and is configured to hold 2 panels in a landscape orientation. Built for professional installers, this system utilizes floating button-capture technology and universal mounting hardware to ensure compatibility with a wide range of interlocking dvLED panels. This specific SKU is a starter mount, meaning it is used to begin the installation before adding extender mounts to achieve the desired wall height. The DVM0540U2 provides full X-Y-Z axis adjustability to compensate for uneven wall surfaces, ensuring precision pixel alignment even for displays with pixel pitches below 1 mm. This 3-axis adjustment includes a manual height adjustment of 2 in (50.8 mm), 0.68 in (1.7 cm) of lateral shift, and micro-adjustments for fine-tuning. The mount supports a weight capacity of 250 lbs (113.4 kg) per unit and requires a plywood-reinforced wall for proper installation.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Lateral Shift | 0.68 in (1.7 cm) |
| Manual Height Adjustment | 2 in (50.8 mm) |
| Minimum Depth | 2 in (5.1 cm) |
| Number of Panels | 2 |
| Size | 43" Class (960mm W x 540mm H) |
| Typical Screen Size | 540mm-tall dvLED Panels |
| Wall Stud Compatibility | Meant for plywood-reinforced walls |
| Weight Capacity | 250 lbs (113.4 kg) |
All other specifications 12
| Accessory Type | InstallationMounting Brackets |
| Adjustability | FixedHeight AdjustableLateral ShiftMicro-Adjustable |
| Adjustments | .625" |
| Application | Wall |
| Color | Black |
| Orientation | Landscape |
| Product Type | Starter |
| Solution Type | Universal |
| Special Features | LED Video WallModularMulti-DisplaySecurityStacked |
| TAA Compliant | Yes |
| UPC | 841872178721 |
| Certifications | TAA |
Resources
You'll need these with it
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
TiLED® dvLED Universal Installation Spacer Tool
DVA700$200.00
TiLED® dvLED Universal M12 Mounting Button Kit, 25 panels
DVAM12-25$380.00
TiLED® dvLED Universal Capture H-Block Kit, Pair
DVAHBKITComing soon
TiLED® dvLED Universal M6 Mounting Button Kit, 1 panel
DVAM6-1$15.20
TiLED® dvLED Universal M12 Mounting Button Kit, 1 panel
DVAM12-1$15.20
TiLED® dvLED Universal M8 Mounting Button Kit, 10 panels
DVAM8-10$152.00
TiLED® dvLED Universal M6 Mounting Button Kit, 25 panels
DVAM6-25$380.00
TiLED® dvLED Universal M6 Mounting Button Kit, 10 panels
DVAM6-10$152.00
TiLED® dvLED Universal M12 Mounting Button Kit, 10 panels
DVAM12-10$152.00
TiLED® dvLED Universal M8 Mounting Button Kit, 25 panels
DVAM8-25$380.00
TiLED® dvLED Universal M8 Mounting Button Kit, 1 panel
DVAM8-1$15.20
Verified fitment
Questions about this part
Will this mount fit my dvLED panels?
The DVM0540U2 is verified to work with 13 models from 2 manufacturers, including Absen NX Series (NX Series-X4, NX1.5-X4, NX1.8-X4) and VANGUARD LA Series (LA43-1.2, LA Series 43", 55", 65").
How many panels does the DVM0540U2 hold?
This specific starter SKU is designed to hold 2 panels. To increase the height of your video wall, you must add extender mounts to this base.
What do I need to install the DVM0540U2?
Installers will need specialized accessories such as the TiLED® dvLED Universal M6, M8, M10, or M12 Mounting Button Kits depending on their specific panel requirements.
What kind of wall preparation is required?
These mounts are specifically meant for installation on plywood-reinforced walls to ensure structural stability for the video wall.
Can I adjust the panels if the wall is not level?
Yes, the mount provides macro and micro-adjustments across the X, Y, and Z axes to compensate for wall irregularities and ensure a perfectly flat, level display.
