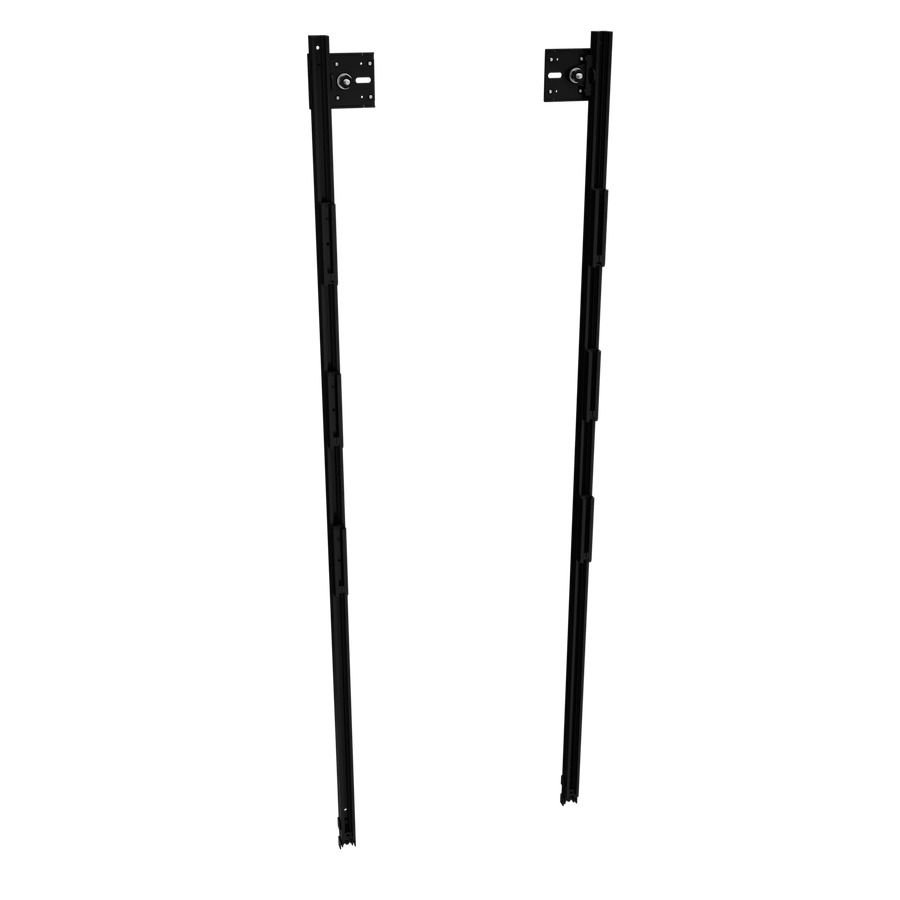

Chief DVM0500U3E TiLED® dvLED Universal 500mm, 3 High Extender
TiLED extender for 500mm-tall dvLED panels, accommodates 3 displays with 3-axis adjustability for precise alignment
The Chief DVM0500U3E is a TiLED® dvLED Universal Extender designed for building scalable, modular video walls. This specific SKU is an extender that holds 3 display panels, allowing installers to expand the height of a video wall beyond the initial starter mounts. It is engineered for the 500mm-tall dvLED Panel class and is compatible with a wide range of interlocking panels from manufacturers like Absen, Philips, Unilumin, Vanguard, and ROE. To achieve a perfectly flat installation, the mount features double-depth Z-axis adjustment with both macro and micro-adjustments. The system also provides Y-axis adjustment at each panel edge to establish a level base, and X-Y-Z axis adjustability to compensate for wall irregularities. This precision is critical for maintaining flawless pixel alignment in displays with pixel pitches below 1 mm. The DVM0500U3E is TAA compliant and is intended for use on plywood-reinforced walls with a weight capacity of 250 lbs (113.4 kg).
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Lateral Shift | 0.68 in (1.7 cm) |
| Manual Height Adjustment | 2 in (50.8 mm) |
| Minimum Depth | 2 in (5.1 cm) |
| Number of Panels | 3 |
| Size | 250/500/750/1000mm Class |
| Typical Screen Size | 500mm-tall dvLED Panels |
| Wall Stud Compatibility | Meant for plywood-reinforced walls |
| Weight Capacity | 250 lbs (113.4 kg) |
All other specifications 12
| Accessory Type | InstallationMounting Brackets |
| Adjustability | FixedHeight AdjustableLateral ShiftMicro-Adjustable |
| Adjustments | .625" |
| Application | Wall |
| Color | Black |
| Orientation | Landscape or Portrait |
| Product Type | Extender |
| Solution Type | Universal |
| Special Features | LED Video WallModularMulti-DisplaySecurityStacked |
| TAA Compliant | Yes |
| UPC | 841872178714 |
| Certifications | TAA |
Resources
You'll need these with it
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
TiLED® dvLED Universal Installation Spacer Tool
DVA700$200.00
TiLED® dvLED Universal M12 Mounting Button Kit, 25 panels
DVAM12-25$380.00
TiLED® dvLED Universal Capture H-Block Kit, Pair
DVAHBKITComing soon
TiLED® dvLED Universal M6 Mounting Button Kit, 1 panel
DVAM6-1$15.20
TiLED® dvLED Universal M12 Mounting Button Kit, 1 panel
DVAM12-1$15.20
TiLED® dvLED Universal M8 Mounting Button Kit, 10 panels
DVAM8-10$152.00
TiLED® dvLED Universal M6 Mounting Button Kit, 25 panels
DVAM6-25$380.00
TiLED® dvLED Universal M6 Mounting Button Kit, 10 panels
DVAM6-10$152.00
TiLED® dvLED Universal M12 Mounting Button Kit, 10 panels
DVAM12-10$152.00
TiLED® dvLED Universal M8 Mounting Button Kit, 25 panels
DVAM8-25$380.00
TiLED® dvLED Universal M8 Mounting Button Kit, 1 panel
DVAM8-1$15.20
Verified fitment
Questions about this part
Will this mount work with my specific dvLED panels?
Yes, this TiLED extender is verified against 121 display models from 5 manufacturers, including the Absen K V3 Series, Philips 22BDL7219L, and Unilumin Umate LM 500x250mm Series.
What else do I need to purchase to complete the video wall installation?
You will need starter mounts to form the base of the wall. You may also require specific mounting button kits, such as the TiLED® dvLED Universal M6, M8, M10, or M12 kits, depending on your panel requirements.
How much adjustability does this extender provide for panel alignment?
The DVM0500U3E provides X-Y-Z axis adjustability, including a 2 in (50.8 mm) manual height adjustment and a 0.68 in (1.7 cm) lateral shift to correct for wall irregularities.
What are the mounting requirements for the wall?
This product is designed for use with plywood-reinforced walls to ensure a stable and secure installation.
What is the difference between a starter mount and this extender?
Starter mounts form the base of your video wall, while this DVM0500U3E extender is used to increase the height of the wall by adding more panels to the stack.
