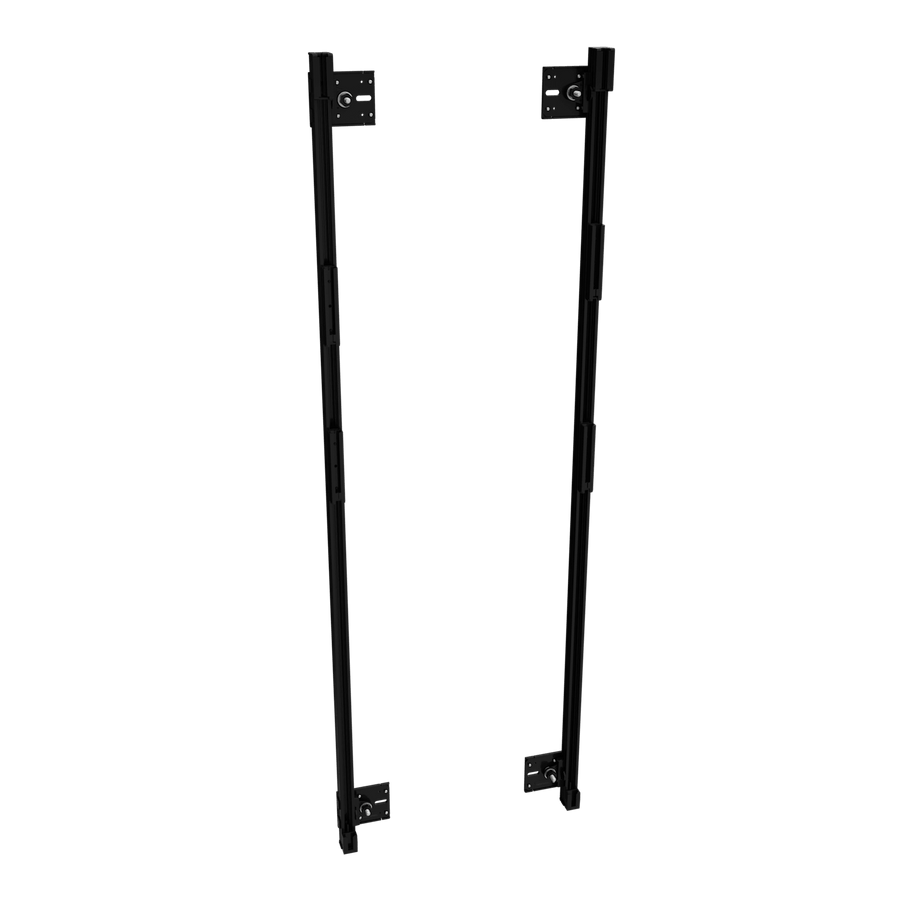

Chief DVM0500U3 TiLED® dvLED Universal 500mm, 3 High Starter
Universal starter mount for 500mm-tall dvLED panels, 250 lbs capacity, featuring 3-axis precision adjustability
The Chief DVM0500U3 is a TiLED® dvLED Universal 500mm, 3 High Starter mount designed to provide the foundation for modular video wall installations. As a starter mount, this unit forms the base of your video wall and is intended to be used in conjunction with extender mounts to reach the desired height. This TAA compliant solution is compatible with 500mm-tall dvLED panels and offers a weight capacity of 250 lbs (113.4 kg). To accommodate uneven installation surfaces, the system provides X-Y-Z axis adjustability, including a 2 in (50.8 mm) manual height adjustment and 0.68 in (1.7 cm) lateral shift. These micro-adjustments allow for precision pixel alignment, which is critical for displays with pixel pitches below 1 mm. The mount is designed for application on plywood-reinforced walls and supports both landscape and portrait orientations. This universal system is compatible with a wide range of interlocking panels from manufacturers like Absen, Philips, Unilumin, Vanguard, and ROE.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Lateral Shift | 0.68 in (1.7 cm) |
| Manual Height Adjustment | 2 in (50.8 mm) |
| Minimum Depth | 2 in (5.1 cm) |
| Number of Panels | 3 |
| Size | 250/500/750/1000mm Class |
| Typical Screen Size | 500mm-tall dvLED Panels |
| Wall Stud Compatibility | Meant for plywood-reinforced walls |
| Weight Capacity | 250 lbs (113.4 kg) |
All other specifications 12
| Accessory Type | InstallationMounting Brackets |
| Adjustability | FixedHeight AdjustableLateral ShiftMicro-Adjustable |
| Adjustments | .625" |
| Application | Wall |
| Color | Black |
| Orientation | Landscape or Portrait |
| Product Type | Starter |
| Solution Type | Universal |
| Special Features | LED Video WallModularMulti-DisplaySecurityStacked |
| TAA Compliant | Yes |
| UPC | 841872178707 |
| Certifications | TAA |
Resources
You'll need these with it
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
TiLED® dvLED Universal Installation Spacer Tool
DVA700$200.00
TiLED® dvLED Universal M12 Mounting Button Kit, 25 panels
DVAM12-25$380.00
TiLED® dvLED Universal Capture H-Block Kit, Pair
DVAHBKITComing soon
TiLED® dvLED Universal M6 Mounting Button Kit, 1 panel
DVAM6-1$15.20
TiLED® dvLED Universal M12 Mounting Button Kit, 1 panel
DVAM12-1$15.20
TiLED® dvLED Universal M8 Mounting Button Kit, 10 panels
DVAM8-10$152.00
TiLED® dvLED Universal M6 Mounting Button Kit, 25 panels
DVAM6-25$380.00
TiLED® dvLED Universal M6 Mounting Button Kit, 10 panels
DVAM6-10$152.00
TiLED® dvLED Universal M12 Mounting Button Kit, 10 panels
DVAM12-10$152.00
TiLED® dvLED Universal M8 Mounting Button Kit, 25 panels
DVAM8-25$380.00
TiLED® dvLED Universal M8 Mounting Button Kit, 1 panel
DVAM8-1$15.20
Verified fitment
Questions about this part
Will the DVM0500U3 fit my dvLED panels?
This starter mount is verified for 500mm-tall panels from 5 manufacturers, including models from Absen, Philips, Unilumin, Vanguard, and ROE.
How do I build a taller video wall with this starter mount?
The DVM0500U3 serves as the base; you must add extender mounts to achieve your required video wall height.
What is required for the wall installation?
The mount is designed for use on plywood-reinforced walls and requires a minimum depth of 2 in (5.1 cm).
How do I adjust the panels if the wall is uneven?
The mount features 3-axis adjustability, including macro and micro-adjustments for X, Y, and Z axes to ensure a perfectly flat, level display.
What additional items do I need to order for a complete installation?
Installers may require mounting button kits (such as the DVAM6-1 or DVAM12-1) and specialized tools like the DVA700 installation spacer tool.
