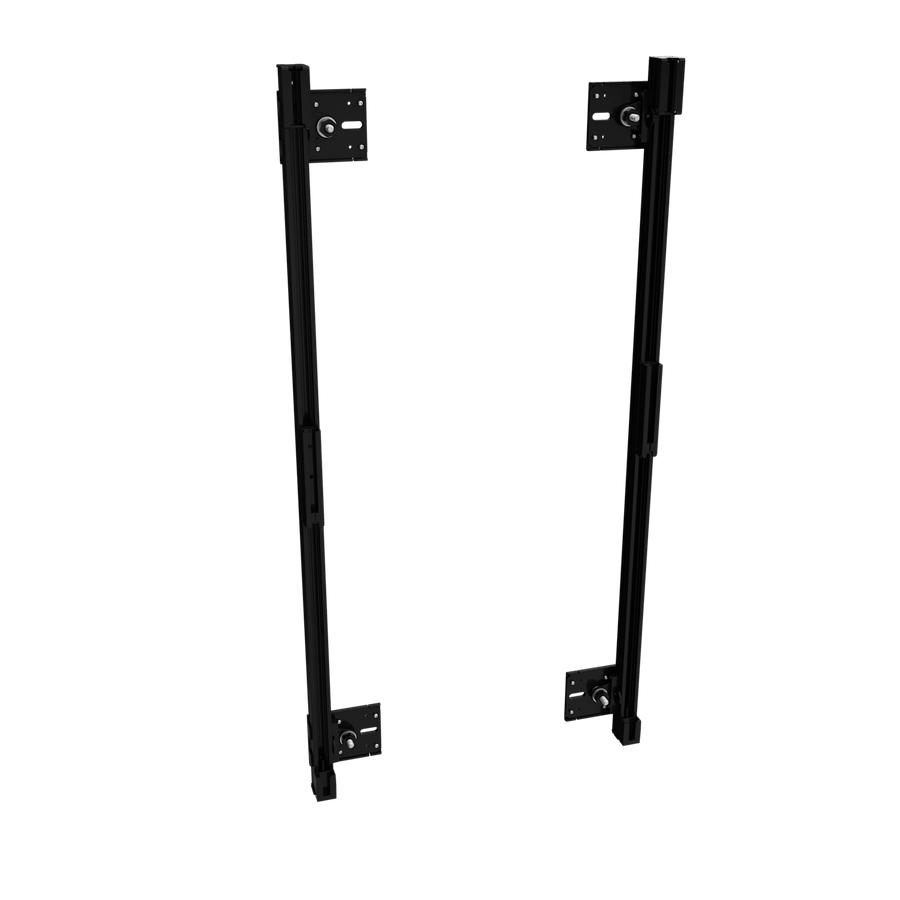

Chief DVM0500U2 TiLED® dvLED Universal 500mm, 2 High Starter
Universal starter mount for 500mm-tall dvLED panels, featuring 3-axis adjustment and 250 lbs capacity
The Chief DVM0500U2 TiLED® dvLED Universal Wall Mount is a starter mount designed for 500mm-tall dvLED panels. This modular system is built to accommodate a wide range of interlocking dvLED panels from major manufacturers. It is specifically engineered for use on plywood-reinforced walls and supports two display panels. This starter unit serves as the base for a video wall; to expand a vertical installation, it must be paired with extender mounts. The DVM0500U2 features a TAA compliant design and offers comprehensive 3-axis adjustability (X, Y, and Z) to compensate for wall irregularities. This allows installers to achieve precise pixel alignment even when working with pixel pitches below 1 mm. For depth control, the mount provides both macro and micro-adjustments, including a 0.625" adjustment range and a 2" minimum depth, ensuring a perfectly flat video wall surface. This unit can be installed in either landscape or portrait orientation.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Lateral Shift | 0.68 in (1.7 cm) |
| Manual Height Adjustment | 2 in (50.8 mm) |
| Minimum Depth | 2 in (5.1 cm) |
| Number of Panels | 2 |
| Size | 250/500/750/1000mm Class |
| Typical Screen Size | 500mm-tall dvLED Panels |
| Wall Stud Compatibility | Meant for plywood-reinforced walls |
| Weight Capacity | 250 lbs (113.4 kg) |
All other specifications 12
| Accessory Type | InstallationMounting Brackets |
| Adjustability | FixedHeight AdjustableLateral ShiftMicro-Adjustable |
| Adjustments | .625" |
| Application | Wall |
| Color | Black |
| Orientation | Landscape or Portrait |
| Product Type | Starter |
| Solution Type | Universal |
| Special Features | LED Video WallModularMulti-DisplaySecurityStacked |
| TAA Compliant | Yes |
| UPC | 841872178684 |
| Certifications | TAA |
Resources
You'll need these with it
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
TiLED® dvLED Universal Installation Spacer Tool
DVA700$200.00
TiLED® dvLED Universal M12 Mounting Button Kit, 25 panels
DVAM12-25$380.00
TiLED® dvLED Universal Capture H-Block Kit, Pair
DVAHBKITComing soon
TiLED® dvLED Universal M6 Mounting Button Kit, 1 panel
DVAM6-1$15.20
TiLED® dvLED Universal M12 Mounting Button Kit, 1 panel
DVAM12-1$15.20
TiLED® dvLED Universal M8 Mounting Button Kit, 10 panels
DVAM8-10$152.00
TiLED® dvLED Universal M6 Mounting Button Kit, 25 panels
DVAM6-25$380.00
TiLED® dvLED Universal M6 Mounting Button Kit, 10 panels
DVAM6-10$152.00
TiLED® dvLED Universal M12 Mounting Button Kit, 10 panels
DVAM12-10$152.00
TiLED® dvLED Universal M8 Mounting Button Kit, 25 panels
DVAM8-25$380.00
TiLED® dvLED Universal M8 Mounting Button Kit, 1 panel
DVAM8-1$15.20
Verified fitment
Questions about this part
Will the DVM0500U2 fit my specific dvLED panels?
This mount is verified against 121 display models from 5 manufacturers, including Absen K V3 Series, Philips 22BDL7219L, Unilumin Umate LM 500x250mm Series, Vanguard Zirconium Series, and ROE JT2.6.
What else do I need to purchase to complete my video wall?
The DVM0500U2 is a starter mount that holds two panels; you will need to add extender mounts to achieve the desired height for your specific installation.
How much weight can each DVM0500U2 unit support?
Each starter mount has a weight capacity of 250 lbs (113.4 kg).
What kind of wall mounting is required for this series?
These mounts are specifically meant for plywood-reinforced walls to ensure structural integrity.
Can I adjust the panel position to fix uneven walls?
Yes, the mount provides 3-axis adjustability, including a 2 in (50.8 mm) manual height adjustment and 0.68 in (1.7 cm) lateral shift to compensate for irregularities.
